Aurora Extra Heavy Duty Alloy Steel Male Rod End, Plain

Brand: Aurora Bearing Company

These rod ends provide the ultimate in strength, durability and safety. The ball, race and housing are all made with heat treated alloy steels. The ball is hard chrome plated. The housing is bright nickel plated (on most sizes) and the race is nickel plated. These bearings are very resistant to loosening even when subjected to the pounding that they receive under racing conditions.

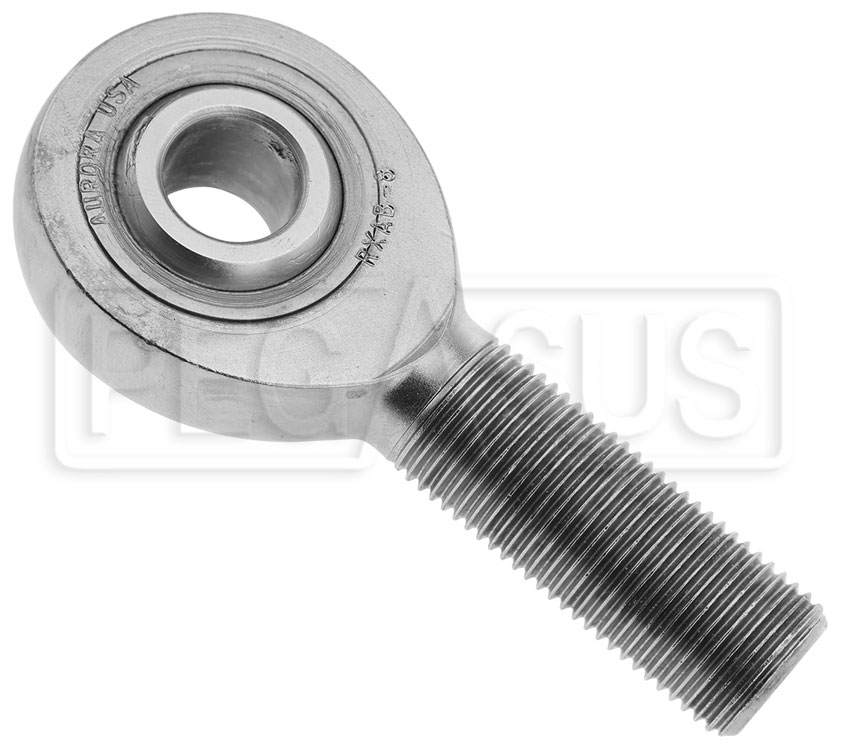

This series is available with male-threaded, oversize shanks only. Typical male rod end shown in photo. Aurora RXAM (right hand threads) and RXAB (left hand threads).

Aurora Alloy Steel Male Rod Ends with Oversize Shanks, Unlined - RXAM (RH) / RXAB (LH) Series
Bore +.0015"/ −.0005"	Thread UNJF-3A	Thread Length +.062"/ −.031"	Center of Bore to End of Shank +∕‑.010"	Ball Width +.000"/ ‑.005"	Head Width +∕‑.005"	Head Diameter +.000"/ −.020"	Max Angle	Weight, Oz (Approx.)	Static Radial Load Rating (Pounds)	Part No.
3/16"	1/4‑28	1.000"	1 5/8"	5/16"	1/4"	3/4"	10°	0.5	5260	AB‑RXAM‑3‑L or ‑R
1/4"	5/16‑24	1 3/16"	1 7/8"	3/8"	9/32"	7/8"	13°	1.2	8452	AB‑RXAM‑4‑L or ‑R
5/16"	3/8‑24	1 3/16"	1 15/16"	7/16"	11/32"	1"	12°	1.8	12,978	AB‑RXAM‑5‑L or ‑R
3/8"	7/16‑20	1 5/16"	2 1/8"	1/2"	13/32"	1 1/8"	10°	2.6	17,508	AB‑RXAM‑6‑L or ‑R
7/16"	1/2‑20	1 7/16"	2 7/16"	9/16"	7/16"	1 5/16"	12°	4	22,760	AB‑RXAM‑7‑L or ‑R
1/2"	5/8‑18	1 9/16"	2 5/8"	5/8"	1/2"	1 1/2"	10°	6.1	30,579	AB‑RXAM‑8‑L or ‑R
5/8"	3/4‑16	1 11/16"	2 7/8"	3/4"	9/16"	1 3/4"	13°	9.6	39,674	AB‑RXAM‑10‑L or ‑R

Note: These rod ends do not have a PTFE liner in the race. They must be cleaned and lubricated manually. We also offer the Aurora RXAM series Oversize Shank Alloy Steel Male Rod Ends with Self-Lubricating PTFE Liners under Part No. 3063.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Stock Status

3/16 inch Bore Rod Ends

AB-RXAM-3-Left
Condition: New
SKU: 76985

Alloy Steel Rod End, 3/16 Bore x 1/4-28 Left Hand Male Thrd

1 to 4: $37.49 5 & up: $36.01

Not In Stock
notify me when available

AB-RXAM-3-Right
Condition: New
SKU: 76986

Alloy Steel Rod End, 3/16 Bore x 1/4-28 Rt Hand Male Thread

1 to 4: $43.59 5 & up: $41.91

In Stock

1/4 inch Bore Rod Ends

AB-RXAM-4-Left
Condition: New
SKU: 76987

Alloy Steel Rod End, 1/4 Bore x 5/16-24 Left Hand Male Thrd

1 to 4: $47.79 5 & up: $45.98

In Stock

AB-RXAM-4-Right
Condition: New
SKU: 76988

Alloy Steel Rod End, 1/4 Bore x 5/16-24 Rt Hand Male Thread

1 to 4: $47.79 5 & up: $45.98

In Stock

5/16 inch Bore Rod Ends

AB-RXAM-5-Left
Condition: New
SKU: 76989

Alloy Steel Rod End, 5/16 Bore x 3/8-24 Left Hand Male Thrd

1 to 4: $49.79 5 & up: $47.92

In Stock

AB-RXAM-5-Right
Condition: New
SKU: 76990

Alloy Steel Rod End, 5/16 Bore x 3/8-24 Rt Hand Male Thread

1 to 4: $49.79 5 & up: $47.92

In Stock

3/8 inch Bore Rod Ends

AB-RXAM-6-Left
Condition: New
SKU: 76991

Alloy Steel Rod End, 3/8 Bore x 7/16-20 Left Hand Male Thrd

1 to 4: $87.99 5 & up: $85.01

In Stock

AB-RXAM-6-Right
Condition: New
SKU: 76992

Alloy Steel Rod End, 3/8 Bore x 7/16-20 Rt Hand Male Thread

1 to 4: $87.99 5 & up: $85.01

In Stock

7/16 inch Bore Rod Ends

AB-RXAM-7-Left
Condition: New
SKU: 76993

Alloy Steel Rod End, 7/16 Bore x 1/2-20 Left Hand Male Thrd

1 to 4: $66.99 5 & up: $64.60

In Stock

AB-RXAM-7-Right
Condition: New
SKU: 76994

Alloy Steel Rod End, 7/16 Bore x 1/2-20 Rt Hand Male Thread

1 to 4: $66.99 5 & up: $64.60

In Stock

1/2 inch Bore Rod Ends

AB-RXAM-8-Left
Condition: New
SKU: 76995

Alloy Steel Rod End, 1/2 Bore x 5/8-18 Left Hand Male Thread

1 to 4: $83.99 5 & up: $81.13

In Stock

AB-RXAM-8-Right
Condition: New
SKU: 76996

Alloy Steel Rod End, 1/2 Bore x 5/8-18 Rt Hand Male Thread

1 to 4: $83.99 5 & up: $81.13

In Stock

5/8 inch Bore Rod Ends

AB-RXAM-10-Left
Condition: New
SKU: 76997

Alloy Steel Rod End, 5/8 Bore x 3/4-16 Left Hand Male Thread

1 to 3: $107.79 4 & up: $104.17

In Stock

AB-RXAM-10-Right
Condition: New
SKU: 76998

Alloy Steel Rod End, 5/8 Bore x 3/4-16 Rt Hand Male Thread

1 to 3: $107.79 4 & up: $104.17

Not In Stock
notify me when available
