High Strength Alloy Steel Economy Series Rod End

Click for a larger picture of High Strength Alloy Steel Economy Series Rod End

Brand: Aurora Bearing Company

These male rod ends provide good strength for a very modest price. The ball and housing are made from heat treated alloy steels. The ball is hard chrome plated, and the housing is coated for corrosion resistance.

The two-piece construction consists of an inner ball and a body which is deformed around the ball. This results in a distinctive "pancake" appearance, with a very thin head. The lack of a separate race between the body and the ball typically results in a much shorter fatigue life than 3-piece rod ends, particularly under racing conditions. These two-piece rod ends are also less precise than most 3-piece rod ends. They are suitable for non-critical joints operating under low stress levels, but many builders will not allow even the best two-piece joints on a racecar. There is no option for a PTFE liner, which means that these rod ends must be kept clean and lubricated manually.

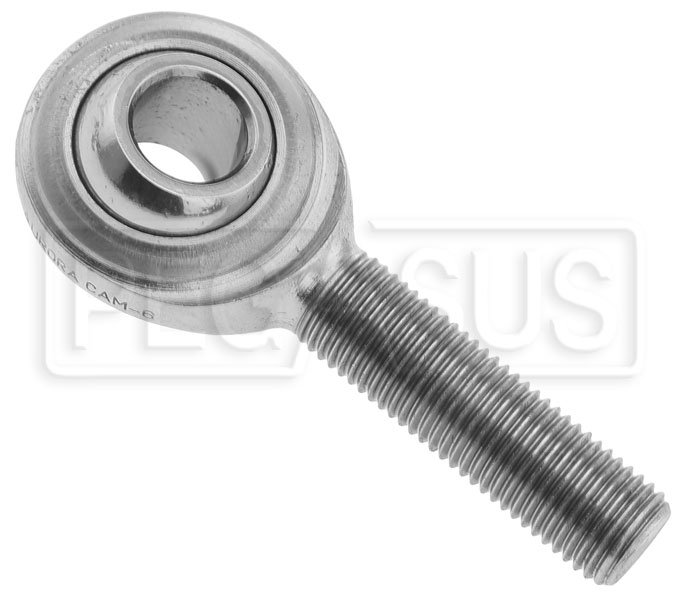

Male threaded shanks only. Typical male rod end shown in photo. Aurora CAM (right hand threads) and CAB (left hand threads) series.

Aurora Economy Alloy Steel Male Rod Ends - CAM (RH) / CAB (LH) Series
Bore

+.025"/
−.0005"
Thread

(UNF-3A)
Thread Length

+.062"/
−.031"
Center of Bore to End of Shank

+∕‑.015"
Ball Width

+∕‑.005"
Head Thickness

(ref only)
Head Diameter

(ref only)
Max Angle Weight, oz (Approx) Static Radial Load Rating Part No.
5/16" 5/16-24 1 1/4" 1 7/8" 7/16" 5/16" 7/8" 22° 1.2 6684 lb AB‑CAM‑5‑L or ‑R
3/8" 3/8-24 1 1/4" 1 15/16" 1/2" 0.359" 1" 22° 1.8 9088 lb AB‑CAM‑6‑L or ‑R
7/16" 7/16-20 1 3/8" 2 1/8" 9/16" 0.406" 1 1/8" 21° 2.4 11,445 lb AB‑CAM‑7‑L or ‑R
1/2" 1/2-20 1 1/2" 2 7/16" 5/8" 0.453" 1 5/16" 20° 3.9 15,479 lb AB‑CAM‑8‑L or ‑R
5/8" 5/8-18 1 5/8" 2 5/8" 3/4" 0.484" 2 5/8" 26° 5.8 17,470 lb AB‑CAM‑10‑L or ‑R
3/4" 3/4-16 1 3/4" 2 7/8" 7/8" 0.593" 1 3/4" 24° 9.2 24,471 lb AB‑CAM‑12‑L or ‑R

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Status

AB-CAM-5-Left
Condition: New
SKU: 76999

Economy Steel Rod End, 5/16 Bore x 5/16-24 LH Male Thread

1 to 7: $8.49

8 & up: $8.00

Not In Stock
notify me when available

AB-CAM-5-Right
Condition: New
SKU: 77000

Economy Steel Rod End, 5/16 Bore x 5/16-24 RH Male Thread

1 to 7: $8.49

8 & up: $7.95

Not In Stock
notify me when available

AB-CAM-6-Left
Condition: New
SKU: 77001

Economy Steel Rod End, 3/8 Bore x 3/8-24 LH Male Thread

1 to 7: $8.99

8 & up: $8.51

In Stock

AB-CAM-6-Right
Condition: New
SKU: 77002

Economy Steel Rod End, 3/8 Bore x 3/8-24 RH Male Thread

1 to 7: $8.99

8 & up: $8.51

In Stock

AB-CAM-7-Left
Condition: New
SKU: 77003

Economy Steel Rod End, 7/16 Bore x 7/16-20 LH Male Thread

1 to 5: $13.99

6 & up: $13.07

Not In Stock
notify me when available

AB-CAM-7-Right
Condition: New
SKU: 77004

Economy Steel Rod End, 7/16 Bore x 7/16-20 RH Male Thread

1 to 5: $13.99

6 & up: $13.07

Not In Stock
notify me when available

AB-CAM-8-Left
Condition: New
SKU: 77005

Economy Steel Rod End, 1/2 Bore x 1/2-20 LH Male Thread

1 to 5: $14.99

6 & up: $14.04

Not In Stock
notify me when available

AB-CAM-8-Right
Condition: New
SKU: 77006

Economy Steel Rod End, 1/2 Bore x 1/2-20 RH Male Thread

1 to 5: $14.99

6 & up: $14.04

Not In Stock
notify me when available

AB-CAM-10-Left
Condition: New
SKU: 77007

Economy Steel Rod End, 5/8 Bore x 5/8-18 LH Male Thread

1 to 5: $15.99

6 & up: $15.10

Not In Stock
notify me when available

AB-CAM-10-Right
Condition: New
SKU: 77008

Economy Steel Rod End, 5/8 Bore x 5/8-18 RH Male Thread

1 to 5: $15.99

6 & up: $15.01

Not In Stock
notify me when available

AB-CAM-12-Left
Condition: New
SKU: 77009

Economy Steel Rod End, 3/4 Bore x 3/4-16 LH Male Thread

1 to 5: $21.99

6 & up: $20.80

Not In Stock
notify me when available

AB-CAM-12-Right
Condition: New
SKU: 77010

Economy Steel Rod End, 3/4 Bore x 3/4-16 RH Male Thread

1 to 5: $21.99

6 & up: $20.80

Not In Stock
notify me when available
