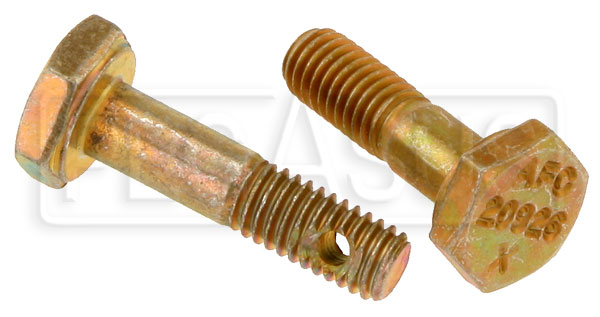

AN3 Airframe Bolt, 10-32 Thread

Click for a larger picture of AN3 Airframe Bolt, 10-32 Thread
Click for a larger picture of AN3 Airframe Bolt, 10-32 Thread
View Catalog Page in PDF format

AN3 bolts have a 10-32 thread with a 3/16" shank diameter. All sizes of AN3 bolts have a 0.406 inch thread length, regardless of grip length. This thread length has been carefully calculated to accommodate a full-height nut plus one AN960-10 washer.

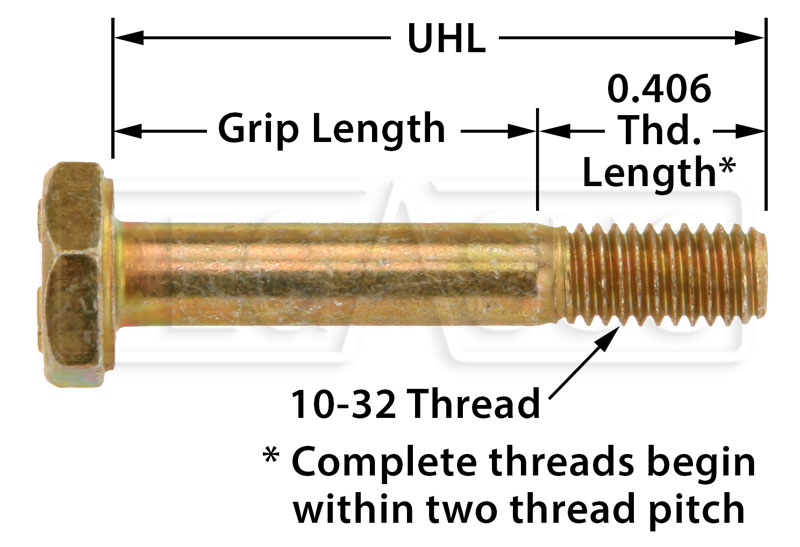

Grip Length refers to the length of the unthreaded portion of the shank. Grip lengths are available in 1/8" increments to match the thickness of the materials being bolted together (the threaded portion should never be positioned inside the hole). If your assembly is between sizes, select the next longer bolt and use additional AN960-10 and AN960-10L washers to take up the slack.

A or no A? AN bolts were originally designed to be used with a castle nut and cotter pin, so the base part number indicates a drilled shank. The addition of an "A" at the end (for example, AN3-13A) indicates an undrilled shank for use with a self-locking nut.

UHL: Under Head Length (also known as Full Shank Length or Overall Length not including bolt head)

AN bolt nomenclature can be confusing. Please take a look at our page on Identifying AN Bolt Sizes.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Status

AN3-3
Condition: New

#10-32 x 0.063 Grip Airframe Bolt, 0.47 UHL, Drilled Shank

1 to 11: $0.31

12 & up: $0.29

In Stock

AN3-3A
Condition: New

#10-32 x 0.063 Grip Airframe Bolt, 0.47 UHL, undrilled

1 to 11: $0.19

12 to 149: $0.17

150 to 1999: $0.14

2000 & up: call

In Stock

AN3-4
Condition: New

#10-32 x 0.125 Grip Airframe Bolt, 0.53 UHL, Drilled Shank

1 to 11: $0.28

12 to 149: $0.26

150 & up: $0.23

In Stock

AN3-4A
Condition: New

#10-32 x 0.125 Grip Airframe Bolt, 0.53 UHL, undrilled

1 to 11: $0.24

12 to 149: $0.22

150 & up: $0.19

In Stock

AN3-5
Condition: New

#10-32 x 0.250 Grip Airframe Bolt, 0.66 UHL, Drilled Shank

1 to 11: $0.32

12 to 149: $0.31

150 to 1999: $0.30

2000 & up: call

In Stock

AN3-5A
Condition: New

#10-32 x 0.250 Grip Airframe Bolt, 0.66 UHL, undrilled

1 to 11: $0.22

12 to 149: $0.20

150 & up: $0.17

In Stock

AN3-6
Condition: New

#10-32 x 0.375 Grip Airframe Bolt, 0.78 UHL, Drilled Shank

1 to 11: $0.49

12 to 149: $0.43

150 to 1999: $0.37

2000 & up: call

In Stock

AN3-6A
Condition: New

#10-32 x 0.375 Grip Airframe Bolt, 0.78 UHL, undrilled

1 to 11: $0.24

12 to 149: $0.21

150 to 1999: $0.18

2000 & up: call

In Stock

AN3-7
Condition: New

#10-32 x 0.500 Grip Airframe Bolt, 0.91 UHL, Drilled Shank

1 to 11: $0.94

12 & up: $0.87

In Stock

AN3-7A
Condition: New

#10-32 x 0.500 Grip Airframe Bolt, 0.91 UHL, undrilled

1 to 11: $0.29

12 to 149: $0.26

150 & up: $0.23

In Stock

AN3-10
Condition: New

#10-32 x 0.625 Grip Airframe Bolt, 1.03 UHL, Drilled Shank

1 to 11: $0.33

12 & up: $0.30

In Stock

AN3-10A
Condition: New

#10-32 x 0.625 Grip Airframe Bolt, 1.03 UHL, undrilled

1 to 11: $0.41

12 to 149: $0.36

150 to 1999: $0.31

2000 & up: call

In Stock

AN3-11
Condition: New

#10-32 x 0.750 Grip Airframe Bolt, 1.16 UHL, Drilled Shank

1 to 11: $0.49

12 to 149: $0.43

150 & up: $0.37

In Stock

AN3-11A
Condition: New

#10-32 x 0.750 Grip Airframe Bolt, 1.16 UHL, undrilled

1 to 11: $0.29

12 to 149: $0.26

150 to 1999: $0.22

2000 & up: call

In Stock

AN3-12
Condition: New

#10-32 x 0.875 Grip Airframe Bolt, 1.28 UHL, Drilled Shank

1 to 11: $0.49

12 to 149: $0.45

150 & up: $0.40

In Stock

AN3-12A
Condition: New

#10-32 x 0.875 Grip Airframe Bolt, 1.28 UHL, undrilled

1 to 11: $0.33

12 & up: $0.29

In Stock

AN3-13
Condition: New

#10-32 x 1.000 Grip Airframe Bolt, 1.41 UHL, Drilled Shank

1 to 11: $0.49

12 & up: $0.43

In Stock

AN3-13A
Condition: New

#10-32 x 1.000 Grip Airframe Bolt, 1.41 UHL, undrilled

1 to 11: $0.49

12 to 149: $0.43

150 to 1999: $0.37

2000 & up: call

In Stock

AN3-14
Condition: New

#10-32 x 1.125 Grip Airframe Bolt, 1.53 UHL, Drilled Shank

1 to 11: $0.49

12 to 149: $0.43

150 & up: $0.37

In Stock

AN3-14A
Condition: New

#10-32 x 1.125 Grip Airframe Bolt, 1.53 UHL, undrilled

1 to 11: $0.40

12 to 149: $0.35

150 & up: $0.30

In Stock

AN3-15
Condition: New

#10-32 x 1.250 Grip Airframe Bolt, 1.66 UHL, Drilled Shank

1 to 11: $0.40

12 to 149: $0.35

150 & up: $0.30

In Stock

AN3-15A
Condition: New

#10-32 x 1.250 Grip Airframe Bolt, 1.66 UHL, undrilled

1 to 11: $0.41

12 to 149: $0.36

150 to 1999: $0.31

2000 & up: call

In Stock

AN3-16
Condition: New

#10-32 x 1.375 Grip Airframe Bolt, 1.78 UHL, Drilled Shank

1 to 11: $0.40

12 & up: $0.35

In Stock

AN3-16A
Condition: New

#10-32 x 1.375 Grip Airframe Bolt, 1.78 UHL, undrilled

1 to 11: $0.42

12 to 149: $0.37

150 & up: $0.32

In Stock

AN3-17
Condition: New

#10-32 x 1.500 Grip Airframe Bolt, 1.91 UHL, Drilled Shank

1 to 11: $0.40

12 to 149: $0.35

150 & up: $0.30

In Stock

AN3-17A
Condition: New

#10-32 x 1.500 Grip Airframe Bolt, 1.91 UHL, undrilled

1 to 11: $0.49

12 to 149: $0.43

150 & up: $0.37

In Stock

AN3-20
Condition: New

#10-32 x 1.625 Grip Airframe Bolt, 2.03 UHL, Drilled Shank

1 to 11: $0.45

12 to 149: $0.42

150 & up: $0.38

In Stock

AN3-20A
Condition: New

#10-32 x 1.625 Grip Airframe Bolt, 2.03 UHL, undrilled

1 to 11: $0.49

12 & up: $0.43

In Stock

AN3-21
Condition: New

#10-32 x 1.750 Grip Airframe Bolt, 2.16 UHL, Drilled Shank

1 to 11: $0.42

12 & up: $0.37

In Stock

AN3-21A
Condition: New

#10-32 x 1.750 Grip Airframe Bolt, 2.16 UHL, undrilled

1 to 11: $0.49

12 & up: $0.43

In Stock

AN3-22
Condition: New

#10-32 x 1.875 Grip Airframe Bolt, 2.28 UHL, Drilled Shank

1 to 11: $0.54

12 to 149: $0.50

150 & up: $0.46

In Stock

AN3-22A
Condition: New

#10-32 x 1.875 Grip Airframe Bolt, 2.28 UHL, undrilled

1 to 11: $0.49

12 to 149: $0.43

150 & up: $0.37

In Stock

AN3-23
Condition: New

#10-32 x 2.000 Grip Airframe Bolt, 2.41 UHL, Drilled Shank

1 to 11: $0.99

12 to 149: $0.88

150 to 1999: $0.76

2000 & up: call

In Stock

AN3-23A
Condition: New

#10-32 x 2.000 Grip Airframe Bolt, 2.41 UHL, undrilled

1 to 11: $0.54

12 to 149: $0.48

150 to 1999: $0.41

2000 & up: call

In Stock

AN3-24
Condition: New

#10-32 x 2.125 Grip Airframe Bolt, 2.53 UHL, Drilled Shank

1 to 11: $0.94

12 to 149: $0.83

150 to 1999: $0.72

2000 & up: call

In Stock

AN3-24A
Condition: New

#10-32 x 2.125 Grip Airframe Bolt, 2.53 UHL, undrilled

1 to 11: $0.54

12 & up: $0.48

In Stock

AN3-25
Condition: New

#10-32 x 2.250 Grip Airframe Bolt, 2.66 UHL, Drilled Shank

1 to 11: $0.99

12 to 149: $0.88

150 & up: $0.76

In Stock

AN3-25A
Condition: New

#10-32 x 2.250 Grip Airframe Bolt, 2.66 UHL, undrilled

1 to 11: $0.54

12 & up: $0.48

In Stock

AN3-26
Condition: New

#10-32 x 2.375 Grip Airframe Bolt, 2.78 UHL, Drilled Shank

1 to 11: $0.69

12 & up: $0.64

In Stock

AN3-26A
Condition: New

#10-32 x 2.375 Grip Airframe Bolt, 2.78 UHL, undrilled

1 to 11: $0.64

12 to 149: $0.57

150 & up: $0.49

In Stock

AN3-27
Condition: New

#10-32 x 2.500 Grip Airframe Bolt, 2.91 UHL, Drilled Shank

1 to 9: $1.09

10 to 99: $0.97

100 to 999: $0.84

1000 & up: call

In Stock

AN3-27A
Condition: New

#10-32 x 2.500 Grip Airframe Bolt, 2.91 UHL, undrilled

1 to 11: $0.69

12 & up: $0.64

In Stock

AN3-30
Condition: New

#10-32 x 2.625 Grip Airframe Bolt, 3.03 UHL, Drilled Shank

1 to 9: $1.09

10 to 99: $0.97

100 to 999: $0.84

1000 & up: call

In Stock

AN3-30A
Condition: New

#10-32 x 2.625 Grip Airframe Bolt, 3.03 UHL, undrilled

1 to 11: $0.69

12 & up: $0.63

In Stock

AN3-31
Condition: New

#10-32 x 2.750 Grip Airframe Bolt, 3.16 UHL, Drilled Shank

1 to 9: $1.09

10 to 99: $0.97

100 to 999: $0.84

1000 & up: call

In Stock

AN3-31A
Condition: New

#10-32 x 2.750 Grip Airframe Bolt, 3.16 UHL, undrilled

1 to 11: $0.74

12 to 149: $0.66

150 & up: $0.57

In Stock

AN3-32
Condition: New

#10-32 x 2.875 Grip Airframe Bolt, 3.28 UHL, Drilled Shank

1 to 9: $1.19

10 to 99: $1.06

100 & up: $0.92

In Stock

AN3-32A
Condition: New

#10-32 x 2.875 Grip Airframe Bolt, 3.28 UHL, undrilled

1 to 11: $0.79

12 to 149: $0.70

150 & up: $0.60

In Stock

AN3-33
Condition: New

#10-32 x 3.000 Grip Airframe Bolt, 3.41 UHL, Drilled Shank

1 to 9: $1.19

10 to 99: $1.06

100 to 999: $0.92

1000 & up: call

In Stock

AN3-33A
Condition: New

#10-32 x 3.000 Grip Airframe Bolt, 3.41 UHL, undrilled

1 to 11: $0.79

12 to 149: $0.70

150 & up: $0.60

In Stock

AN3-34
Condition: New

#10-32 x 3.125 Grip Airframe Bolt, 3.53 UHL, Drilled Shank

1 to 9: $1.19

10 to 99: $1.06

100 to 999: $0.92

1000 & up: call

In Stock

AN3-34A
Condition: New

#10-32 x 3.125 Grip Airframe Bolt, 3.53 UHL, undrilled

1 to 11: $0.79

12 & up: $0.71

In Stock

AN3-35
Condition: New

#10-32 x 3.250 Grip Airframe Bolt, 3.66 UHL, Drilled Shank

1 to 9: $1.19

10 to 99: $1.06

100 to 999: $0.92

1000 & up: call

In Stock

AN3-35A
Condition: New

#10-32 x 3.250 Grip Airframe Bolt, 3.66 UHL, undrilled

1 to 9: $1.59

10 to 99: $1.41

100 & up: $1.23

In Stock

AN3-36
Condition: New

#10-32 x 3.375 Grip Airframe Bolt, 3.78 UHL, Drilled Shank

1 to 9: $1.29

10 to 99: $1.15

100 & up: $1.00

In Stock

AN3-36A
Condition: New

#10-32 x 3.375 Grip Airframe Bolt, 3.78 UHL, undrilled

1 to 9: $2.39

10 to 99: $2.24

100 & up: $2.09

In Stock

AN3-37
Condition: New

#10-32 x 3.500 Grip Airframe Bolt, 3.91 UHL, Drilled Shank

1 to 9: $1.29

10 to 99: $1.15

100 to 999: $1.00

1000 & up: call

In Stock

AN3-37A
Condition: New

#10-32 x 3.500 Grip Airframe Bolt, 3.91 UHL, undrilled

1 to 9: $2.19

10 to 99: $1.95

100 & up: $1.71

In Stock

AN3-40
Condition: New

#10-32 x 3.625 Grip Airframe Bolt, 4.03 UHL, Drilled Shank

1 to 9: $1.29

10 to 99: $1.15

100 to 999: $1.00

1000 & up: call

In Stock

AN3-40A
Condition: New

#10-32 x 3.625 Grip Airframe Bolt, 4.03 UHL, undrilled

1 to 11: $0.94

12 to 149: $0.83

150 & up: $0.72

In Stock

AN3-41
Condition: New

#10-32 x 3.750 Grip Airframe Bolt, 4.16 UHL, Drilled Shank

1 to 9: $1.39

10 to 99: $1.24

100 & up: $1.08

In Stock

AN3-41A
Condition: New

#10-32 x 3.750 Grip Airframe Bolt, 4.16 UHL, undrilled

1 to 9: $1.09

10 to 99: $0.97

100 & up: $0.84

In Stock

AN3-42
Condition: New

#10-32 x 3.875 Grip Airframe Bolt, 4.28 UHL, Drilled Shank

1 to 9: $1.39

10 to 99: $1.24

100 & up: $1.08

In Stock

AN3-42A
Condition: New

#10-32 x 3.875 Grip Airframe Bolt, 4.28 UHL, undrilled

1 to 9: $1.09

10 to 99: $0.97

100 & up: $0.84

In Stock
Call for Quote

AN3-43
Condition: New

#10-32 x 4.000 Grip Airframe Bolt, 4.41 UHL, Drilled Shank

Call for QuoteNot In Stock
notify me when available

AN3-43A
Condition: New

#10-32 x 4.000 Grip Airframe Bolt, 4.41 UHL, undrilled

1 to 9: $2.19

10 to 99: $1.95

100 & up: $1.71

In Stock
Call for Quote

AN3-44
Condition: New

#10-32 x 4.125 Grip Airframe Bolt, 4.53 UHL, Drilled Shank

Call for QuoteNot In Stock
notify me when available

AN3-44A
Condition: New

#10-32 x 4.125 Grip Airframe Bolt, 4.53 UHL, undrilled

1 to 9: $1.39

10 to 99: $1.24

100 & up: $1.08

In Stock
Call for Quote

AN3-45
Condition: New

#10-32 x 4.250 Grip Airframe Bolt, 4.66 UHL, Drilled Shank

Call for QuoteNot In Stock
notify me when available
Call for Quote

AN3-45A
Condition: New

#10-32 x 4.250 Grip Airframe Bolt, 4.66 UHL, undrilled

Call for QuoteNot In Stock
notify me when available
Call for Quote

AN3-46
Condition: New

#10-32 x 4.375 Grip Airframe Bolt, 4.78 UHL, Drilled Shank

Call for QuoteNot In Stock
notify me when available
Call for Quote

AN3-46A
Condition: New

#10-32 x 4.375 Grip Airframe Bolt, 4.78 UHL, undrilled

Call for QuoteNot In Stock
notify me when available
Call for Quote

AN3-47
Condition: New

#10-32 x 4.500 Grip Airframe Bolt, 4.91 UHL, Drilled Shank

Call for QuoteNot In Stock
notify me when available

AN3-47A
Condition: New

#10-32 x 4.500 Grip Airframe Bolt, 4.91 UHL, undrilled

1 to 9: $2.49

10 & up: $2.22

In Stock
Call for Quote

AN3-50
Condition: New

#10-32 x 4.625 Grip Airframe Bolt, 5.03 UHL, Drilled Shank

Call for QuoteNot In Stock
notify me when available
Call for Quote

AN3-50A
Condition: New

#10-32 x 4.625 Grip Airframe Bolt, 5.03 UHL, undrilled

Call for QuoteNot In Stock
notify me when available

AN3-51A
Condition: New

#10-32 x 4.750 Grip Airframe Bolt, 5.16 UHL, undrilled

1 to 7: $3.99

8 to 59: $3.58

60 & up: $3.16

In Stock

AN3-55A
Condition: New

#10-32 x 5.250 Grip Airframe Bolt, 5.66 UHL, undrilled

1 to 7: $8.49

8 & up: $7.67

In Stock

AN3-57A
Condition: New

#10-32 x 5.500 Grip Airframe Bolt, 5.91 UHL, undrilled

1 to 7: $9.19

8 & up: $8.31

In Stock

AN3-60A
Condition: New

#10-32 x 5.625 Grip Airframe Bolt, 6.03 UHL, undrilled

1 to 7: $9.39

8 & up: $8.49

In Stock

AN3-62A
Condition: New

#10-32 x 5.875 Grip Airframe Bolt, 6.28 UHL, undrilled

1 to 7: $9.99

8 & up: $9.04

In Stock

AN3-63A
Condition: New

#10-32 x 6.000 Grip Airframe Bolt, 6.41 UHL, undrilled

1 to 5: $10.49

6 & up: $9.49

In Stock

AN3-72A
Condition: New

#10-32 x 6.875 Grip Airframe Bolt, 7.28 UHL, undrilled

1 to 5: $12.79

6 & up: $11.59

In Stock

AN3-73A
Condition: New

#10-32 x 7.000 Grip Airframe Bolt, 7.41 UHL, undrilled

1 to 5: $13.29

6 & up: $12.05

In Stock

AN3-74A
Condition: New

#10-32 x 7.125 Grip Airframe Bolt, 7.53 UHL, undrilled

1 to 5: $14.29

6 & up: $12.97

In Stock

AN3-75A
Condition: New

#10-32 x 7.250 Grip Airframe Bolt, 7.66 UHL, undrilled

1 to 5: $15.29

6 & up: $13.88

In Stock

AN3-76A
Condition: New

#10-32 x 7.375 Grip Airframe Bolt, 7.78 UHL, undrilled

1 to 5: $15.99

6 & up: $14.52

In Stock

AN3-77A
Condition: New

#10-32 x 7.500 Grip Airframe Bolt, 7.91 UHL, undrilled

1 to 5: $16.99

6 & up: $15.44

In Stock

AN3-80A
Condition: New

#10-32 x 7.625 Grip Airframe Bolt, 8.03 UHL, undrilled

1 to 5: $17.99

6 & up: $16.36

In Stock
