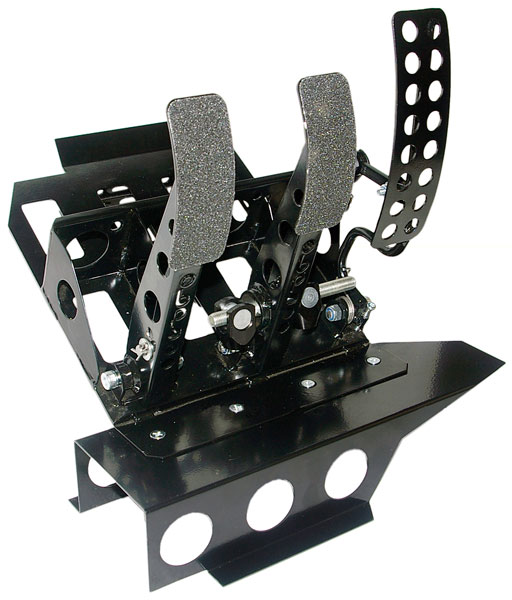

This 3-pedal floor-mount pedal box offers an all-in-one system that is designed just for the BMW E36 chassis. The lightweight steel Track-Pro assembly includes Clutch, Brake, and Throttle pedals in one unit.
All three pedals ride on oil-impregnated bushings for smooth, consistent operation and long life. The fabricated steel foot box fits the left-hand-drive E36 (USA, Canada, Mexico, most of Europe). Just bolt the assembly to the floorpan and hook up the hydraulics and the throttle. No cutting or welding required! The 5.5:1 pedal ratio is ideal for road racing and rallying.
Clutch pedal: For hydraulic clutch. Includes a built-in adjustable pedal stop to prevent overtravel.
Brake pedal: For dual master cylinder systems. Includes a built-in bias bar (7/16" thread, accepts standard 5/16" pushrods).
Throttle pedal: Designed to be easily adapted to the BMW cable. Spring-loaded with an adjustable return stop.
The Clutch and Brake pedals have traction tape pre-applied. The Throttle pedal pad is perforated for comfort. Weighs approximately 5.1 lbs without master cylinders. Accepts master cylinders with the common 2-bolt vertical (2 1/4") mounting pattern. Master cylinders and remote bias adjuster cable sold separately.
Suggested master cylinders and adjuster cables, sold separately:
Girling Master Cylinders or Tilton 74-, 75-, or 76-Series Master Cylinders (3 required)
Tilton Bias Bar Remote Adjuster Cable (Part No. 3526) or OBP Bias Bar Remote Adjuster Cable (Part No. 3519-126)
