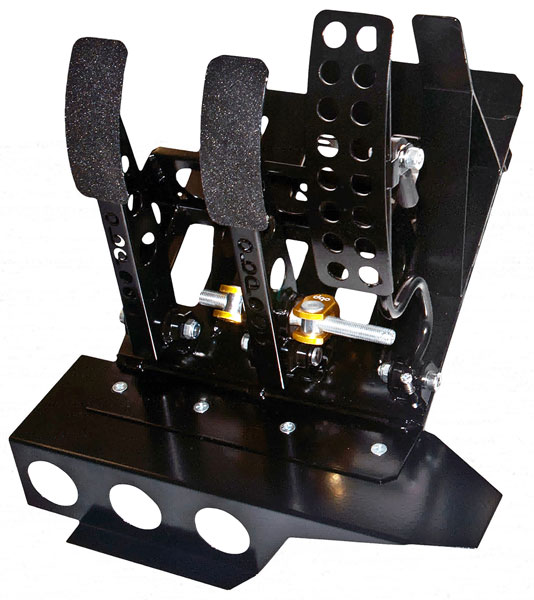

OBP Track Pro 3-Pedal Box, BMW E46 DBW LHD, no MC

Click for a larger picture of OBP Track Pro 3-Pedal Box, BMW E46 DBW LHD, no MC
View Catalog Page in PDF format
This item qualifies for FREE Shipping in the continental United States!

Brand: Optimum Balance Products (OBP)

This 3-pedal floor-mount pedal box offers an all-in-one system that is designed just for the BMW E46 chassis. The lightweight steel Track-Pro assembly includes Clutch, Brake, and Throttle pedals in one unit.

All three pedals ride on oil-impregnated bushings for smooth, consistent operation and long life. The fabricated steel foot box fits the left-hand-drive E46 (USA, Canada, Mexico, most of Europe). Just install your masters, bolt the assembly to the floorpan, and hook up the hydraulics and the throttle. No cutting or welding required! The 5.5:1 pedal ratio is ideal for road racing and rallying.

Clutch pedal: For hydraulic clutch. Includes a built-in adjustable pedal stop to prevent overtravel.
Brake pedal: For dual master cylinder systems. Includes a built-in bias bar (7/16" thread, accepts standard 5/16" pushrods).
Throttle pedal: Spring-loaded with an adjustable return stop. Includes a fitting to connect to the original BMW pedal travel sensor (not included).

The Clutch and Brake pedals have traction tape pre-applied. The Throttle pedal pad is perforated for comfort. Weighs approximately 5.1 lbs without master cylinders. Accepts master cylinders with the common 2-bolt vertical (2 1/4") mounting pattern. Master cylinders and remote bias adjuster cable sold separately.

Suggested master cylinders and adjuster cables, sold separately:
Girling Remote-Reservoir Master Cylinders (Part No. 3502) or OBP Remote-Reservoir Master Cylinders (Part No. 3519-101), 3 required
OBP Bias Bar Remote Adjuster Cable (Part No. OBP-CB009)

Part No.
Stock Status

Condition: New

In Stock
