Girling Remote Reservoir Master Cylinder

Click for a larger picture of Girling Remote Reservoir Master Cylinder
View Catalog Page in PDF format

Many British road cars in the 1950s through the 80s were equipped with Girling master cylinders as original equipment. These high-quality units were quickly adopted by race car constructors. Girling masters are still preferred for new construction because of their compact size and unmatched reliability.

These genuine Girling master cylinders are designed to accept a remote fluid reservoir (sold separately). The outet port faces the rear of the car, which is ideal for cars with limited space in front of the master cylinder. The lengths of the pushrod (included) vary but are usually 3.75 to 4.00" long as measured from the mounting flange. These single-circuit masters can be used for either clutch or brakes. Sold individually.

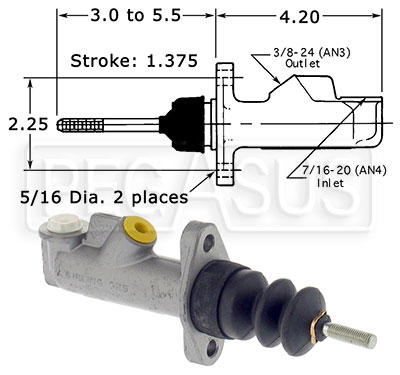

  • Outlet Port Thread: 3/8-24 (3AN)
  • Inlet Port Thread: 7/16-20 (4AN)
  • Pushrod Thread: 5/16-24
  • Cylinder Length (measured from mounting face): 4.2"
  • Mounting Hole Spacing: 2 1/4" (vertical)
  • Stroke: 1.375"

Girling casts the bore size into the side of the cylinder for easy identification. The 0.62 size may be shown as either 5/8 or 625; the 0.70 size may say 7/10 or .70; and the 0.75 size may say 3/4 or .75.

Note: These are the real deal: Brand-new (not remanufactured), Genuine Girling units (not copies). Some "clones" of varying quality are on the market at lower prices. Some of those clones cannot even be rebuilt! You can tell the real thing by the word "GIRLING" cast into the side. These genuine Girling master cylinders are rebuildable for many years of service.

Reservoirs and Inlet Fittings sold separately:
Large Reservoir with Centered 7/16-20 Threaded Outlet (Part No. 3574)
Medium Reservoir with Offset 7/16-20 Threaded Outlet (Part No. 3569)
7/16-20 to 5/16" Hose Barb Inlet Fitting (Part No. 3207)
7/16-20 Banjo to 5/16" Hose Barb Low-Profile Inlet Fitting (Part No. 3219)
5/16" ID Remote Reservoir Hose (Part No. 3575)

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Status

3502-.62
Condition: New

Girling Remote Reservoir Master Cylinder - 0.62 inch Bore

$124.99In Stock

3502-.70
Condition: New

Girling Remote Reservoir Master Cylinder - 0.70 inch Bore

$124.99In Stock

3502-.75
Condition: New

Girling Remote Reservoir Master Cylinder - 0.75 inch Bore

$124.99In Stock
