AiM 7-Pin SoloDL/EVO4S Cable for Yamaha R1 04-08 / R6 06-16

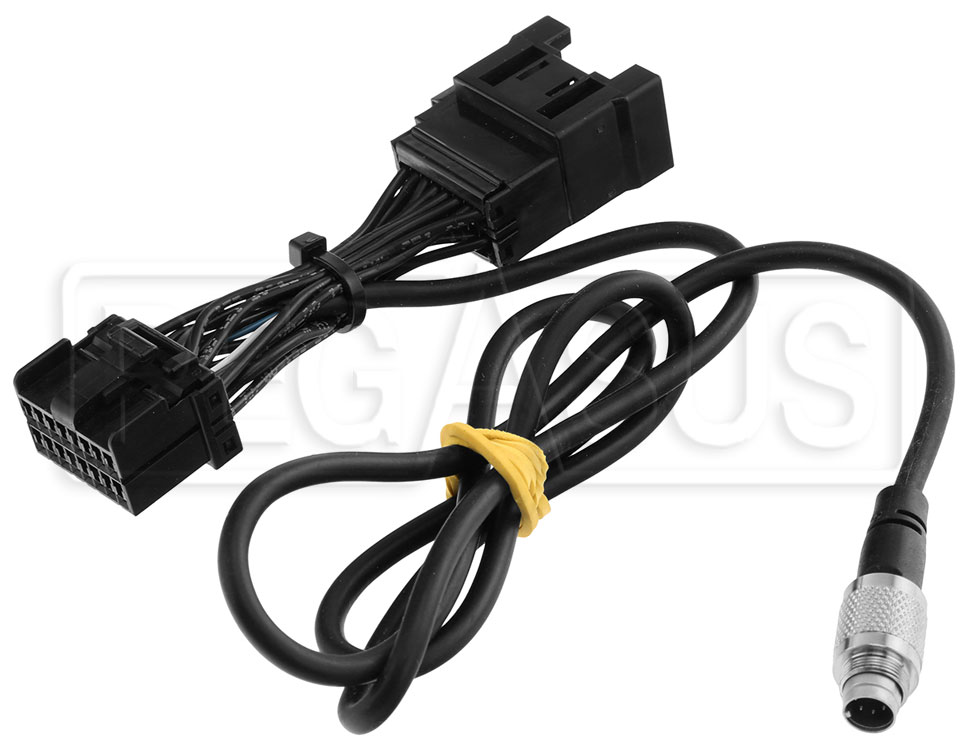

Click for a larger picture of AiM 7-Pin SoloDL/EVO4S Cable for Yamaha R1 04-08 / R6 06-16

Brand: AIM Sports

This cable connects your AiM SoloDL* lap timer or AiM EVO4S data logger** to the ECU on your Yamaha R1 / R6 motorcycle for easy sampling of RPM and other data. One end has the 7-pin 712 (screw-in) connector for the SoloDL / EVO4S, and the other end has a pair of special plugs to fit between the stock wiring harness connector and the YZF dash. This lets you retain the stock gauge cluster, which is required for certain functions.

Data logged from the Yamaha ECU includes RPM, wheel speed, coolant temp, and intake air temp. Works with 2004-08 Yamaha YZF-R1 and 2006-16 YZF-R6 (including YEC). Logger cable measures approximately 28" long.

* For SoloDL and Solo2DL only, not for standalong Solo or Solo2.
** For EVO4S, not for EVO4.

Qty
Part No.
Price
Stock Status
MC-611

Condition: New

$64.99
Not In Stock
notify me when available
