AiM Solo2DL On-Board Lap Timer, RPM Input

Click for a larger picture of AiM Solo2DL On-Board Lap Timer, RPM Input
Click for a larger picture of AiM Solo2DL On-Board Lap Timer, RPM Input
View Catalog Page in PDF format

Brand: AIM Sports

This item qualifies for FREE Shipping in the continental United States!

Never forget your beacon again! The Solo2DL on-board lap timer from AiM uses GPS and GLONASS satellite technology to start and stop lap times at the start/finish line, with no external equipment required. But the Solo2DL goes much further than just a lap timer, logging all of the GPS data (and engine RPM data) for analysis and track mapping.

If you are racing at an established track in AiM's extensive worldwide database, the Solo2DL will recognize the track when you get there. It already knows where the start/finish line is! If you are racing at a new or temporary track, just take the Solo2DL unit to the starting line (and finish line, if different) and press a button. That's it! (You can also assign start, finish, and split points at home using the included GPS Manager software.)

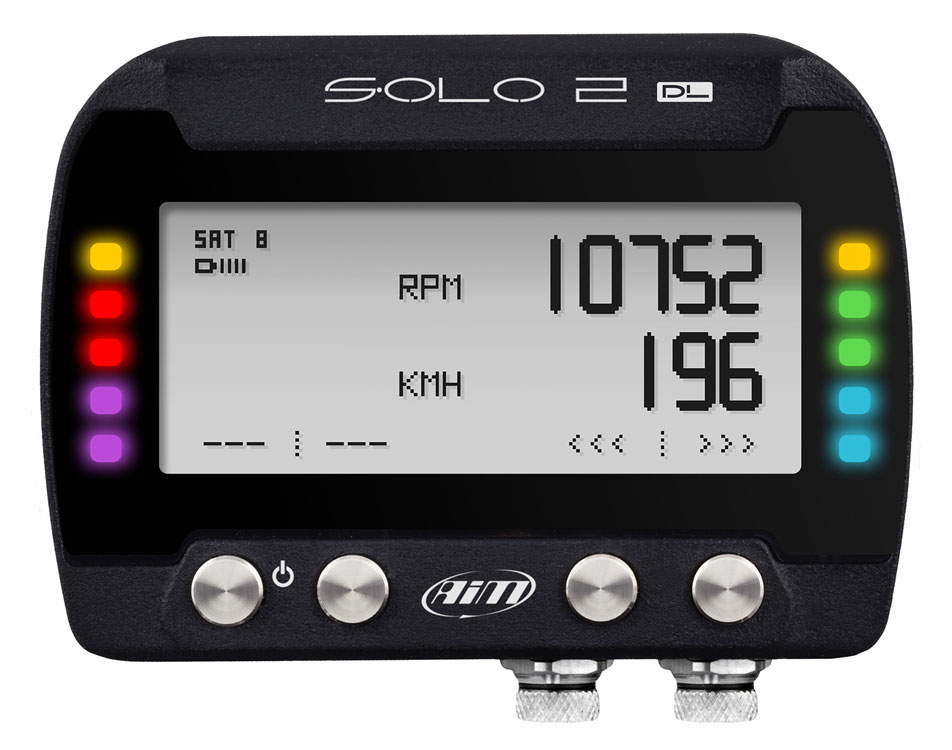

You can customize the backlit LCD display with up to 4 different pages to scroll through, with up to 4 fields per page (speed, lap time, predictive lap time, running lap time, lap number, etc). Five LEDs on each side of the screen can be programmed for use as warning lights or shift lights. You can even use Solo2DL to test performance in the 1/4 mile, 0-60 mph, and acceleration. Connect the Solo2DL to your vehicle's engine (splicing into the tach signal or coil negative wire) and the Solo2DL will also log engine RPM. You can also connect the Solo2DL to your AiM SmartyCam (sold separately) to monitor camera functions on the timer.

Lap times, speed, acceleration, position, and engine RPM (if connected) are all stored in the huge 4GB onboard non-volatile memory for later download and analysis via the Race Studio software. Using Race Studio, you can see track mapping, acceleration and braking, and more!

The compact (98mm x 78mm x 30mm / 3.9" x 3.1" x 1.2") Solo2DL is small and light enough to mount to any (non-airbag) steering wheel (weighs less than 8 ounces). A steel mounting bracket is supplied, and 2 two thumbscrews on the bracket attach the Solo2DL to the bracket. This allows quick and easy removal for setting start lines, split points, or even use in multiple vehicles.

Kit includes Solo2DL timer with rechargeable battery, mounting bracket, wiring for coil RPM and vehicle power connections, and AC/USB charging adapter. This RPM-only version is specifically for use without an OBD-II or racing ECU. Race Studio 3 software is always available as a free download from AiM.

Part No.
Stock Status

Condition: New

In Stock
