Quick-Disconnect Socket to 3/8" Push-Lock Barb, Non-Valved

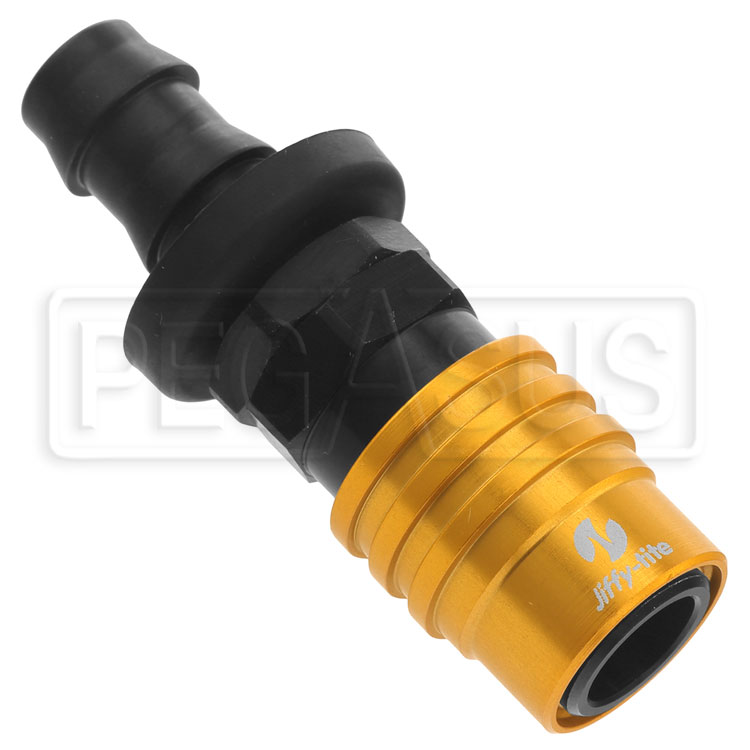

Click for a larger picture of Quick-Disconnect Socket to 3/8" Push-Lock Barb, Non-Valved

Brand: Jiffy-tite

This socket fitting does not have an internal valve. It will allow fluid to flow when connected to a 2000-series Jiffy-tite plug or when disconnected. The hose barb is sized to accept a standard 3/8" push-lock rubber (non-braided) hose such as Aeroquip Pushlok or Earl's Super Stock. It will not work with stainless braided hose or PTFE-lined hose.

The Jiffy-Tite 2000 series will flow 1.75 GPM with a 5psi inlet pressure through a mated pair of valved fittings attached to 3 feet of -6 hose. Flow tests based on Stoddard solvent at 80°F. The Jiffy-Tite 2000 Series Sockets will mate to any Jiffy-Tite 2000 Series Plug. They will not mate to the 3000 or 5000 series plugs.

Check out these features:

  • Standard fluorcarbon seals are resistant to gas, oil, water and coolant. (They can also be special ordered with Buna seals for alcohol and methanol applications.)
  • 100% leak tested.
  • Patented design.
  • Lightweight.
  • Compact, yet feature high-flow capacity.
  • Excellent wear resistance.
  • Good-looking black and gold anodized finish.
  • Completely rebuildable
  • Durable 6061-T6 aluminum bodies and brass valves.
  • 200 psi maximum operating pressure

Qty
Part No.
Price
Stock Status
JT21506AP

Condition: New

1 to 5: $23.99

6 & up: $21.86

Not In Stock
notify me when available
