ARE Cast Aluminum Dry Sump Oil Pan for FF1600, Universal

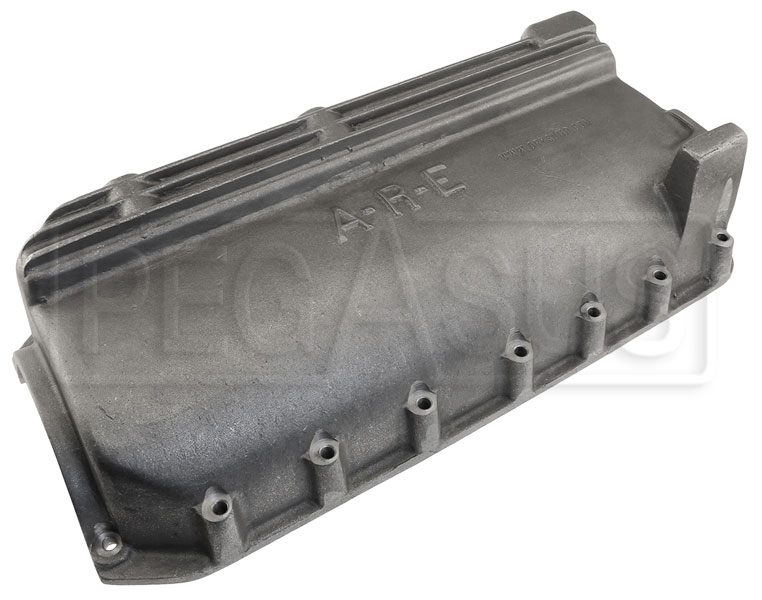

Click for a larger picture of ARE Cast Aluminum Dry Sump Oil Pan for FF1600, Universal

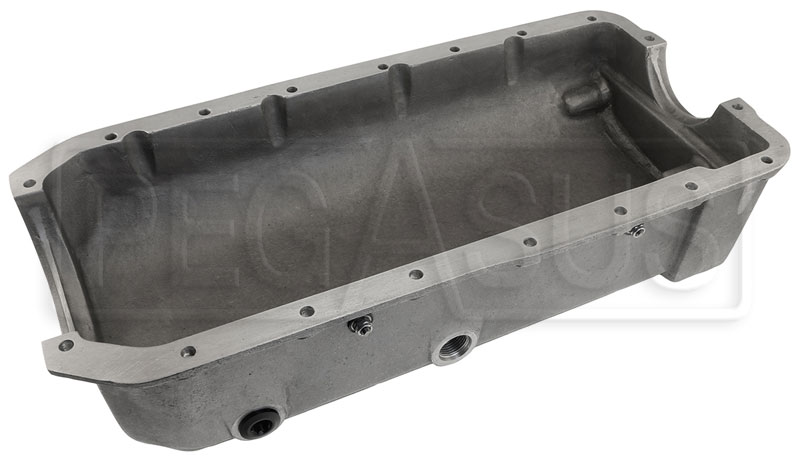

Click for a larger picture of ARE Cast Aluminum Dry Sump Oil Pan for FF1600, Universal
View Catalog Page in PDF format
This item qualifies for FREE Shipping in the continental United States!

ARE dry sump pans are used on championship-winning Formula Fords around the world. This super-strong cast aluminum pan is designed to be a universal fit for most FF1600 chassis. Includes a bolt-in windage tray. The center scavenge port, rear scavenge port, and front drain port all have female 7/8-14 threads to accept -10 O-ring fittings (sold separately).

The following scavenge outlet fittings (not included with the pan) have a filter screen to protect your pump from trash:
ARE Pan Scavenge Outlet for 3/4" Hose, Part No. 167-47-3/4
ARE Pan Scavenge Outlet for 5/8" Hose, Part No. 167-47-5/8
One -10 Threaded Plug (Part No. 3228-128-10) is included. You will need to add another if only the center scavenge port is used.

We also offer a variety of O-Ring Boss to AN Adapters to suit many other installations.

Qty
Part No.
Price
Stock Status
167-27

Condition: New

$999.00
In Stock

Related Product Groups
FF1600 Dry Sump Oil Pans
