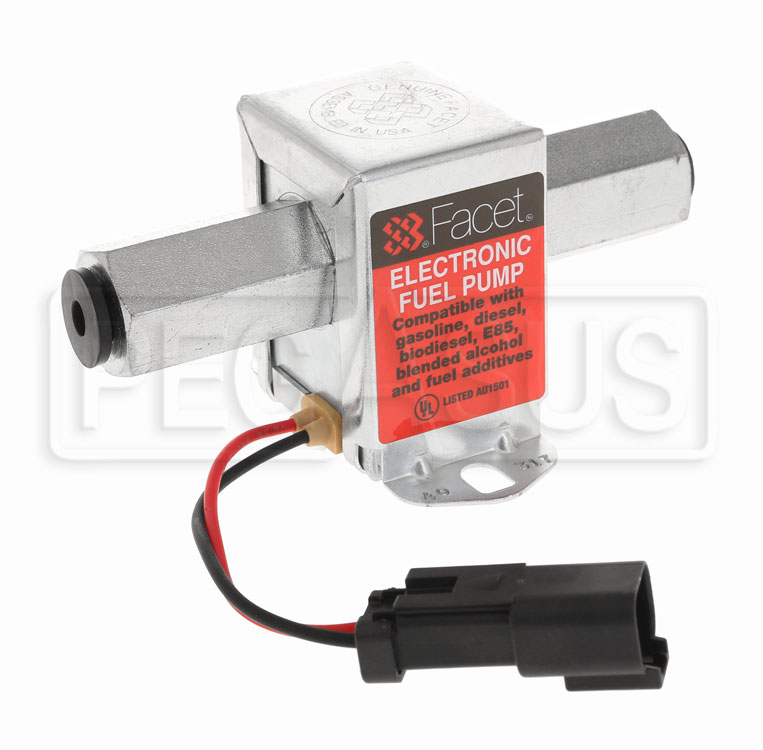

Facet Cube 24V Fuel Pump, 12-15 psi, 1/8 NPT, 96" Lift

Brand: Facet-Purolator

This solid-state fuel pump runs on 24 volts for marine applications. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Maximum fuel delivery 50 gallons per hour at free-flow. Maximum pressure 12 to 15 psi. Typical flow 30 gph at 12 psi. 1/8 NPT female ports. The dry lift rating of 96" is significantly greater than most other Cube-Style pumps. This pump does not have a positive shut-off (anti-siphon valve), so fuel can be pulled through when the pump is off. A one-way check valve ensures that fuel can only flow in one direction. An application-specific Deutsch wiring connector is installed at the factory. Facet part number 40317, interchangeable with Kohler part numbers GM90305-2 and GM101287-2, and Sullair part number 02250241-709.

Beware of counterfeits! We only sell Genuine Facet pumps - not the unreliable foreign knock-offs sold elsewhere.

Not sure if this is the pump you need? Check out our article on Finding the Part Number on Facet Fuel Pumps.
