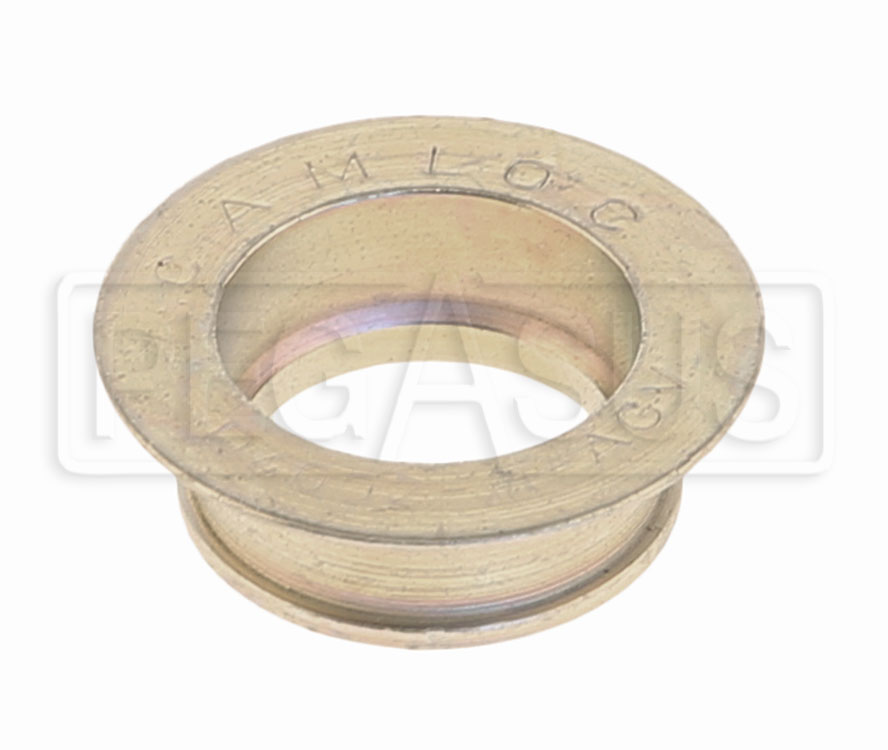

Camloc 4002 Series Zinc Flush Grommet, 0.074 to 0.117 Panels

The 4002 series Camlocs are designed to be used with a metal grommet to help spread the attachment forces. The Flush Grommet mounts in countersunk panels up to 0.117" thick or dimpled panels up to 0.086" thick. Counter-bore or spot-face the back of thicker panels to install these grommets. Thinner panels require the Camloc 4002 Series Flush Grommet for Panels up to 0.086 Inch, Part No. CAM4002-G. Material is alloy steel with clear zinc plating.

Requires minimum 0.150 inch total grip thickness. If the assembly is thinner than 0.150", the back of the grommet will jam against the receptacle.

Qty

Part No.

Price

Stock Status

6083-AGV

Condition: New

$5.89

Not In Stock
notify me when available
