Carbon Steel Rod End, Male Threaded Shank

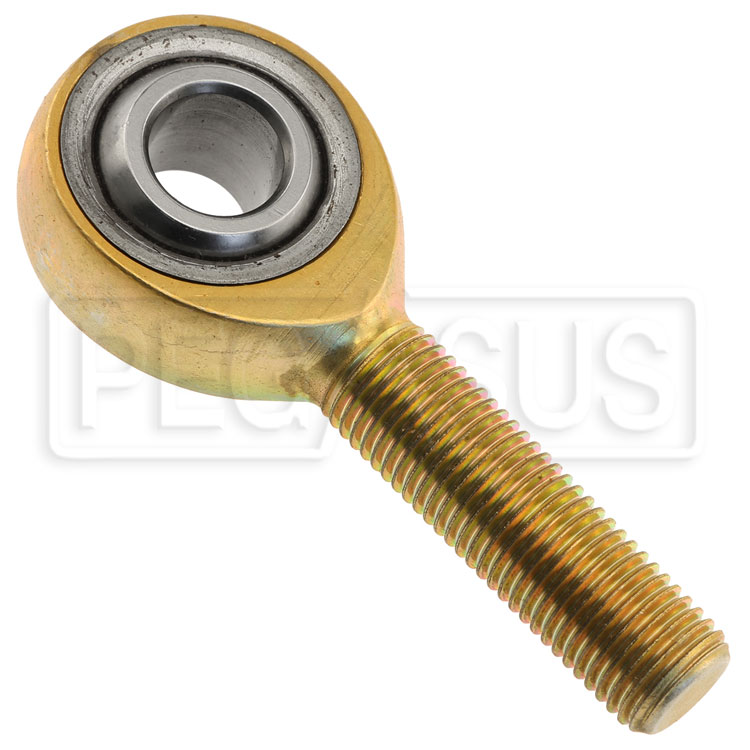

These economical yet high precision bearings are for moderately stressed joints. The ball is heat treated and hard chrome plated alloy steel, and the steel race has a PTFE fabric lining bonded to it. The low carbon steel body limits the load rating to substantially less than our High Strength Alloy Steel Rod Ends (Part No. 3062). However, they will provide very long life in lower stressed or non-critical uses such as sway bar links or shift linkage supports. Male threaded solid shanks only. Typical male rod end shown in photo. Aurora MM-T (right hand threads) and MB-T (left hand threads) series.
We also offer matching Female Threaded Rod Ends (Part No. 3061).
| PTFE Lined Carbon Steel Male Rod Ends | |||||
|---|---|---|---|---|---|
| Bore | Thread (UNF) | Thread Length | Center of Bore to End of Shank | Static Radial Load Rating | Part No. |
| 3/16" | 10-32 | 3/4" | 1 1/4" | 1169 lb | 3060-3-L or -R |
| 1/4" | 1/4-28 | 1" | 1 5/8" | 2158 lb | 3060-4-L or -R |
| 5/16" | 5/16-24 | 1 1/4" | 1 7/8" | 2784 lb | 3060-5-L or -R |
| 3/8" | 3/8-24 | 1 1/4" | 1 15/16" | 3915 lb | 3060-6-L or -R |
| 7/16" | 7/16-20 | 1 3/8" | 2 1/8" | 4218 lb | 3060-7-L or -R |
| 1/2" | 1/2-20 | 1 1/2" | 2 7/16" | 6660 lb | 3060-8-L or -R |
| 5/8" | 5/8-18 | 1 5/8" | 2 5/8" | 7364 lb | 3060-10-L or -R |
| 3/4" | 3/4-16 | 1 3/4" | 2 7/8" | 11,518 lb | 3060-12-L or -R |
Full Specifications for Part No. 3060 Rod Ends (PDF format)
