Wide Series Swaged Bearing Removal Tool Kit

Click for a larger picture of Wide Series Swaged Bearing Removal Tool Kit
This item qualifies for FREE Shipping in the continental United States!

This high-quality removal tool set is designed to make it easy to take swaged (staked) spherical bearings out of their housings. Each set includes a cutter with a matching mandrel and a set of press arbors with a matching mandrel.

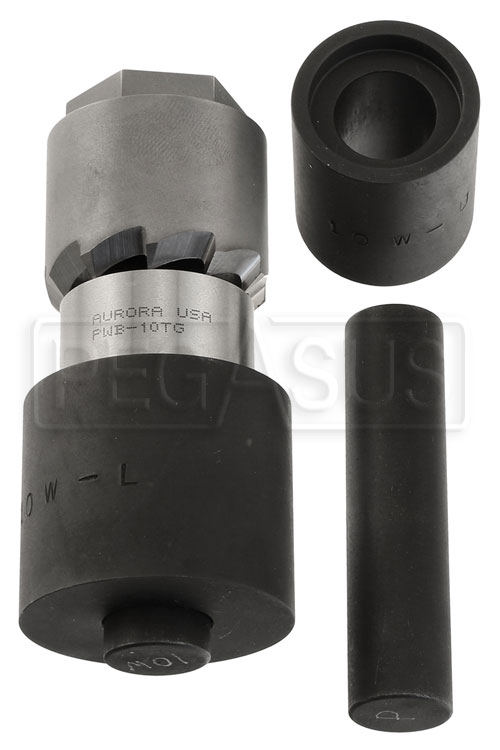

Simply insert the mandrel in the bearing and slip the cutter over the mandrel (supporting the assembly with one of the press arbors as shown is optional). Turn the cutting tool by hand to remove material from the bearing race. When the race has been cut sufficiently thin (just before breaking through and contacting the housing), remove the cutter and mandrel and install the removal dies. Use a vise or arbor press to drive the bearing out.

These tools are specifically designed to fit certain SAE-sized "wide series" spherical bearings with a staking groove on either side of the outer race (Aurora AWC-xTG or PWB-xTG, Pegasus 3070-xG, NHBB ABWT-xV or ADWxV, or any other brand meeting Mil Spec MS14103). When done properly, the housing will be left undamaged and ready to accept a new bearing. Made in USA.

Note: This removal method is only for use on spherical bearings with a grooved outer race which hase been swaged into a housing. It is not intended to remove plain spherical bearings held in place by a circlip or snap ring.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Status

3078-005-4W
Condition: New
SKU: 483

Wide Series Swaged Bearing Removal Tool Kit, -4

$399.99Not In Stock
notify me when available

3078-005-5W
Condition: New
SKU: 85853

Wide Series Swaged Bearing Removal Tool Kit, -5

$399.99Not In Stock
notify me when available

3078-005-6W
Condition: New
SKU: 85854

Wide Series Swaged Bearing Removal Tool Kit, -6

$399.99Not In Stock
notify me when available

3078-005-7W
Condition: New
SKU: 85855

Wide Series Swaged Bearing Removal Tool Kit, -7

$399.99Not In Stock
notify me when available

3078-005-8W
Condition: New
SKU: 85856

Wide Series Swaged Bearing Removal Tool Kit, -8

$399.99Not In Stock
notify me when available

3078-005-9W
Condition: New
SKU: 85857

Wide Series Swaged Bearing Removal Tool Kit, -8

$399.99Not In Stock
notify me when available

3078-005-10W
Condition: New
SKU: 85858

Wide Series Swaged Bearing Removal Tool Kit, -10

$399.99In Stock

3078-005-12W
Condition: New
SKU: 85859

Wide Series Swaged Bearing Removal Tool Kit, -12

$459.99Not In Stock
