Nadella Thin Needle Roller Thrust Bearings

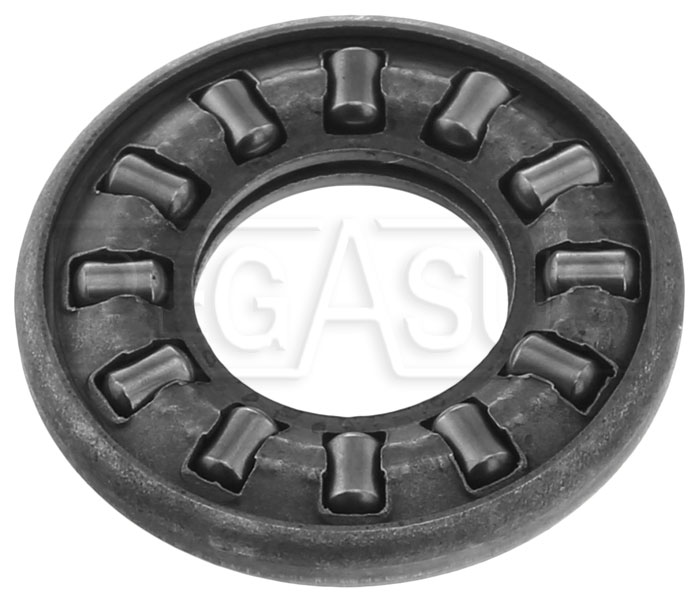

Click for a larger picture of Nadella Thin Needle Roller Thrust Bearings

Nadella bearings are used in many racecar applications because of their small size, low weight, and high load capacity. These thin thrust-only bearings feature needle rollers arranged radially around the bore to support axial thrust. Separate support bearings (not included) will be required to support radial loads.

Nadella bearings require lubrication before use. A high-quality lithium-based, EP, or synthetic bearing grease is recommended when these bearings are used as suspension pivots. Higher rotational speeds with lower load (such as supporting rotating shafts inside machines) may require oil lubrication.

Nadella Needle Thrust Bearing Dimensions
Bore Size
(Housing ID)
Housing OD Thrust Face ID (inside needle bearings) Thrust Face OD (outside needle bearings) Thickness Dynamic Axial Capacity* Speed Limit
10mm 22mm 12mm 18.6mm 2.8mm 5000 N* 15,500 RPM
12mm 26mm 15mm 22.6mm 2.8mm 6900 N* 13,000 RPM
15mm 28mm 17mm 24.6mm 2.8mm 7400 N* 11,500 RPM
20mm 35mm 22mm 31.6mm 2.8mm 11,800 N* 1439 lb
25mm 42mm 27.7mm 37.4mm 2.8mm 13,300 N* 7500 RPM


* Note: In order to achieve rated capacity and life, the mating surfaces should have a smooth finish with a Rockwell hardness between C58 and C64. We offer matching Thin Nadella Thrust Washers (Part No. 3081) and Thick Nadella Thrust Washers (Part No. 3082) separately to provide the proper hardness and finish for these bearings.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Status

3083-10MM
Condition: New
SKU: 72328

Nadella Thin Needle Bearings, 10mm ID x 22mm OD x 2.8mm

$16.99Not In Stock
notify me when available

3083-35MM
Condition: New
SKU: 80742

Nadella Thin Needle Bearings, 35mm ID x 52mm OD x 2.8mm

$31.99Not In Stock
notify me when available
