Aurora Carbon Steel Rod End, Female with Stud Bore

Brand: Aurora Bearing Company

The Aurora CW Series rod end bearings feature a female-threaded carbon steel body with economical 2-piece construction. The 2-piece construction is much less expensive than the 3-piece rod ends we normally stock, but they are also significantly weaker. These rod ends are not recommended for critical applications. They are suitable for light-duty linkages.

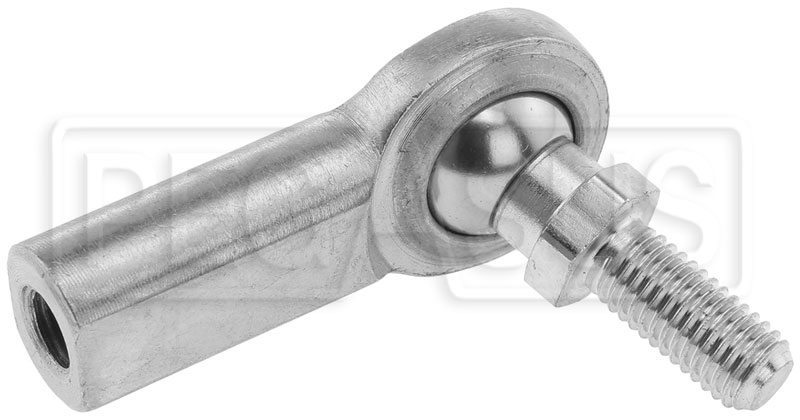

The S version has a male threaded stud swaged into the ball. The stud has the same thread size as the rod end body. Aurora CW-S (right-hand thread) and CG-S (left-hand thread). Sold individually.

Aurora CW / CG Series Rod End Specifications
Thread (UNF-2B)	Ball Width	Head Thickness*	Center of Ball to End of Body	Head OD*	Body Width	Body Thickness	Thread Depth	Misalignment Angle	Radial Load Capacity	Part No.
10-32	0.312"	0.234" *	1.062"	0.625" *	0.406"	0.312"	0.500"	20°	2079 lb	AB-CWS-3-Right or -Left
1/4-28	0.375"	0.250" *	1.312"	0.750" *	0.469"	0.375"	0.687"	27°	3208 lb	AB-CWS-4-Right or -Left

* These dimensions are not controlled and are provided for reference only.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Status

AB-CWS-3-Right
Condition: New
SKU: 86999

Carbon Steel Rod End, 10-32 Stud Bore, Female 10-32 RH Thrd

$9.34

In Stock

AB-CWS-4-Right
Condition: New
SKU: 72294

Carbon Steel Rod End, 1/4 Stud Bore, Female 1/4-28 RH Thread

1 to 7: $9.84 8 & up: $9.01
