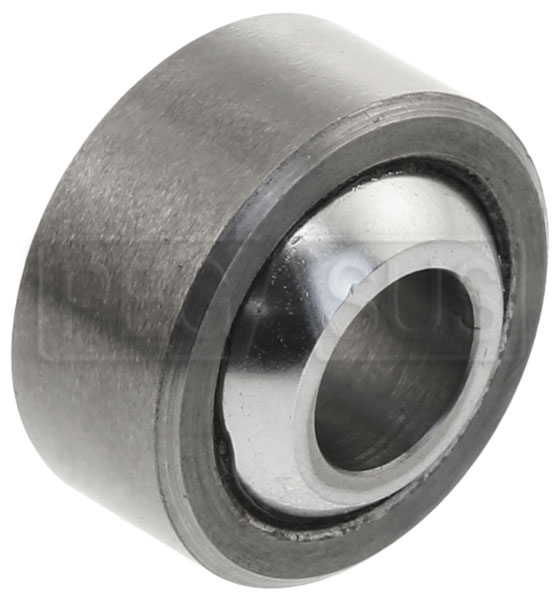

Aurora Spherical Bearing, Carbon Steel Race, PTFE lined

Brand: Aurora Bearing Company

Economical MIB-series bearings have a carbon steel race, coated on the ID and oil coated on the OD for corrosion resistance. The ball is constructed of heat treated and hard chrome plated alloy steel. A self-lubricating PTFE liner offers maintenance-free operation. Aurora MIB-T series.

These bearings are less expensive than the Aurora AIB Series Spherical Bearings, but the carbon steel race sacrifices about 1/3 of the static radial load rating of the AIB Series.

MIB Series PTFE Lined Spherical Bearing Specifications
Bore Size, Nominal	Bore Size +.0015"/ −.0005"	Outside Dia +.0000"/ −.0007"	Ball Width +.000"/ −.005"	Race Width +∕‑.010"	Misalignment Angle	Static Radial Load Rating, lb	Part Number
1/4"	0.2500"	0.6094"	0.375"	0.281"	14.5°	5620	AB−MIBT−4
5/16"	0.3125"	0.7500"	0.437"	0.344"	11.0°	8600	AB−MIBT−5
3/8"	0.3750"	0.8437"	0.500"	0.406"	9.5°	11,677	AB−MIBT−6
7/16"	0.4375"	1.0000"	0.562"	0.437"	11.0°	14,194	AB−MIBT−7
1/2"	0.5000"	1.0937"	0.625"	0.500"	9.5°	18,740	AB−MIBT−8
5/8"	0.6250"	1.3125"	0.750"	0.562"	12.0°	25,290	AB−MIBT−10
3/4"	0.7500"	1.5000"	0.875"	0.687"	10.0°	32,448	AB−MIBT−12
7/8"	0.8750"	1.6250"	0.875"	0.750"	6.0°	39,653	AB−MIBT−14
1"	1.0000" *	2.1250"	1.375"	1.000"	15.0°	60,000	AB−MIBT−16
* Bore tolerance on this size is +.0035" / −.0005".

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Stock Status

AB-MIBT-3
Condition: New
SKU: 75790

Carbon Steel Race Spherical Bearing, PTFE lined, .190 x .531

1 to 5: $19.34 6 & up: $18.22

Not In Stock
notify me when available

AB-MIBT-4
Condition: New
SKU: 74093

Carbon Steel Race Spherical Bearing, PTFE lined, .250 x .609

1 to 5: $20.69 6 & up: $19.49

In Stock

AB-MIBT-5
Condition: New
SKU: 75791

Carbon Steel Race Spherical Bearing, PTFE lined, .312 x .750

1 to 5: $21.29 6 & up: $20.06

Not In Stock
notify me when available

AB-MIBT-6
Condition: New
SKU: 75792

Carbon Steel Race Spherical Bearing, PTFE lined, .375 x .843

1 to 5: $22.19 6 & up: $20.93

In Stock

AB-MIBT-7
Condition: New
SKU: 75793

Carbon Steel Race Spherical Bearing, PTFE lined, .437 x 1.00

1 to 5: $19.99 6 & up: $18.85

Not In Stock
notify me when available

AB-MIBT-8
Condition: New
SKU: 75794

Carbon Steel Race Spherical Bearing, PTFE lined, .500 x 1.09

1 to 5: $22.49 6 & up: $21.22

In Stock

AB-MIBT-10
Condition: New
SKU: 75795

Carbon Steel Race Spherical Bearing, PTFE lined, .625 x 1.31

1 to 5: $27.39 6 & up: $25.90

Not In Stock
notify me when available

AB-MIBT-12
Condition: New
SKU: 75796

Carbon Steel Race Spherical Bearing, PTFE lined, .750 x 1.50

1 to 4: $38.49 5 & up: $36.51

Not In Stock
notify me when available

AB-MIBT-16
Condition: New
SKU: 75797

Carbon Steel Race Spherical Bearing, PTFE lined, 1.00 x 2.12

1 to 4: $81.99 5 & up: $78.21

Not In Stock
notify me when available
