Aurora Oversize Shank Alloy Steel Male Rod End, PTFE Lined

Brand: Aurora Bearing Company

These rod ends provide the ultimate in strength, durability and safety. The ball and body are made with heat treated alloy steels. The ball is hard chrome plated, and the body is coated for corrosion protection. The race is heat-treated carbon steel, lined with self-lubricating PTFE fabric. These bearings are very resistant to loosening even when subjected to the pounding that they receive under racing conditions.

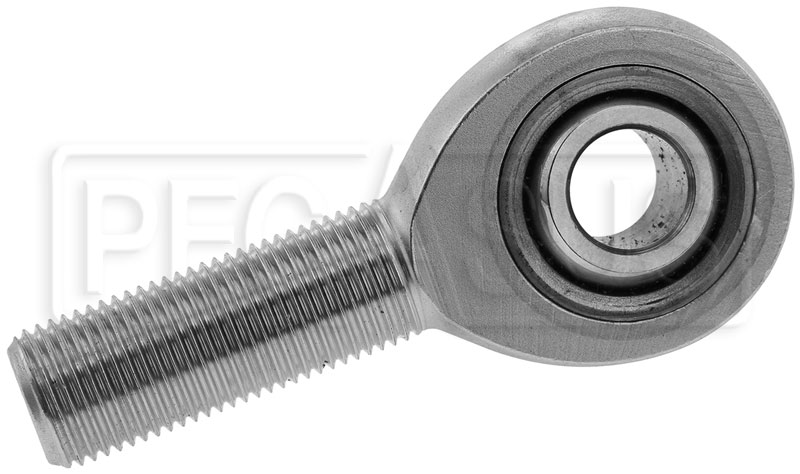

This series is available with male-threaded, oversize shanks only. Typical male rod end shown in photo. Aurora XAM (right hand threads) and XAB (left hand threads) series.

PTFE Lined Alloy Steel Male Rod Ends with Oversize Shanks
Bore	Thread (UNF)	Ball Width	Head Thickness	Head OD	Thread Length	Center of Bore to End of Shank	Radial Load Rating (Pounds)	Part No.
3/16"	1/4-28	5/16"	1/4"	3/4"	1"	1 5/8"	5260	AB-XAMT-3-L or -R
1/4"	5/16-24	3/8"	7/32"	7/8"	1 1/4"	1 7/8"	8452	AB-XAMT-4-L or -R
5/16"	3/8-24	7/16"	11/32"	1"	1 1/4"	1 15/16"	12,978	AB-XAMT-5-L or -R
3/8"	7/16-20	1/2"	13/32"	1 1/8"	1 3/8"	2 1/8"	17,508	AB-XAMT-6-L or -R
7/16"	1/2-20	9/16"	7/16"	1 5/16"	1 1/2"	2 7/16"	23,452	AB-XAMT-7-L or -R
1/2"	5/8-18	5/8"	1/2"	1 1/2"	1 5/8"	2 5/8"	31,390	AB-XAMT-8-L or -R
5/8"	3/4-16	3/4"	9/16"	1 3/4"	1 3/4"	2 7/8"	40,572	AB-XAMT-10-L or -R
3/4"	7/8-14	7/8"	11/16"	2"	1 7/8"	3 3/8"	55,692	AB-XAMT-12-L or -R

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Status

3/16 inch Bore Rod Ends

AB-XAMT-3-Left
Condition: New
SKU: 75511

High Strength Alloy Steel Rod End, 3/16 Bore x 1/4-28 LH

1 to 5: $23.79 6 to 35: $22.07 36 & up: $20.35

In Stock

AB-XAMT-3-Right
Condition: New
SKU: 75512

High Strength Alloy Steel Rod End, 3/16 Bore x 1/4-28 RH

1 to 5: $23.79 6 to 35: $22.07 36 & up: $20.35

In Stock

1/4 inch Bore Rod Ends

AB-XAMT-4-Left
Condition: New
SKU: 75513

High Strength Alloy Steel Rod End, 1/4 Bore x 5/16-24 LH

1 to 5: $24.29 6 & up: $22.53

In Stock

AB-XAMT-4-Right
Condition: New
SKU: 75514

High Strength Alloy Steel Rod End, 1/4 Bore x 5/16-24 RH

1 to 5: $24.29 6 & up: $22.53

In Stock

5/16 inch Bore Rod Ends

AB-XAMT-5-Left
Condition: New
SKU: 75515

High Strength Alloy Steel Rod End, 5/16 Bore x 3/8-24 LH

1 to 5: $27.49 6 & up: $25.51

In Stock

AB-XAMT-5-Right
Condition: New
SKU: 75516

High Strength Alloy Steel Rod End, 5/16 Bore x 3/8-24 RH

1 to 5: $27.49 6 to 35: $25.51 36 & up: $23.52

In Stock

3/8 inch Bore Rod Ends

AB-XAMT-6-Left
Condition: New
SKU: 75517

High Strength Alloy Steel Rod End, 3/8 Bore x 7/16-20 LH

1 to 4: $33.49 5 to 24: $31.07 25 & up: $28.65

In Stock

AB-XAMT-6-Right
Condition: New
SKU: 75518

High Strength Alloy Steel Rod End, 3/8 Bore x 7/16-20 RH

1 to 4: $33.49 5 to 24: $31.07 25 to 124: $28.65 125 & up: call

In Stock

7/16 inch Bore Rod Ends

AB-XAMT-7-Left
Condition: New
SKU: 75519

High Strength Alloy Steel Rod End, 7/16 Bore x 1/2-20 LH

1 to 4: $39.49 5 to 24: $36.68 25 & up: $33.87

In Stock

AB-XAMT-7-Right
Condition: New
SKU: 75520

High Strength Alloy Steel Rod End, 7/16 Bore x 1/2-20 RH

1 to 4: $39.49 5 & up: $36.68

In Stock

1/2 inch Bore Rod Ends

AB-XAMT-8-Left
Condition: New
SKU: 75521

High Strength Alloy Steel Rod End, 1/2 Bore x 5/8-18 LH

1 to 4: $50.99 5 & up: $47.36

In Stock

AB-XAMT-8-Right
Condition: New
SKU: 75522

High Strength Alloy Steel Rod End, 1/2 Bore x 5/8-18 RH

1 to 4: $50.99 5 to 24: $47.36 25 & up: $43.73

In Stock

5/8 inch Bore Rod Ends

AB-XAMT-10-Left
Condition: New
SKU: 75523

High Strength Alloy Steel Rod End, 5/8 Bore x 3/4-16 LH

1 to 4: $70.99 5 & up: $66.04

In Stock

AB-XAMT-10-Right
Condition: New
SKU: 75524

High Strength Alloy Steel Rod End, 5/8 Bore x 3/4-16 RH

1 to 4: $70.99 5 to 24: $66.04 25 & up: $61.08

In Stock

3/4 inch Bore Rod Ends

AB-XAMT-12-Left
Condition: New
SKU: 75525

High Strength Alloy Steel Rod End, 3/4 Bore x 7/8-14 LH

1 to 3: $126.99 4 & up: $118.58

In Stock

AB-XAMT-12-Right
Condition: New
SKU: 75526

High Strength Alloy Steel Rod End, 3/4 Bore x 7/8-14 RH

1 to 3: $126.99 4 & up: $118.58

In Stock
