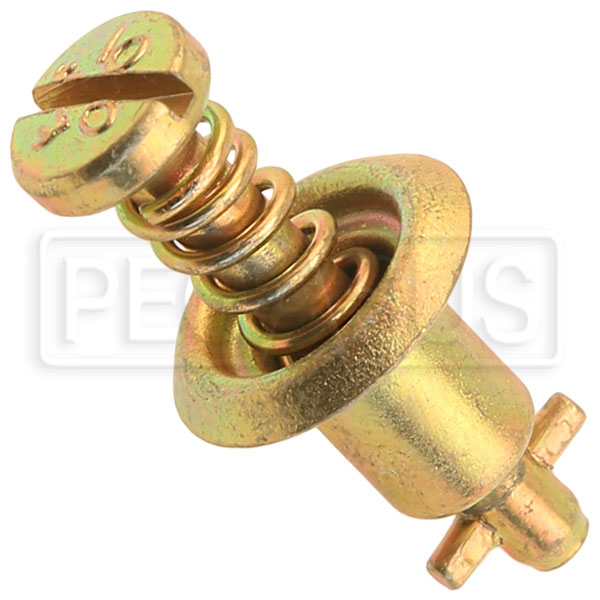

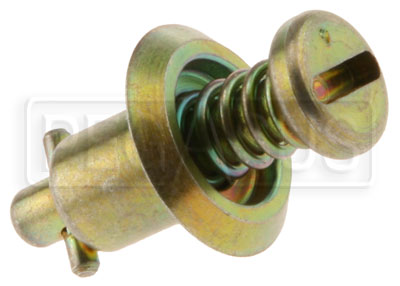

Camloc 2600 Series Light Duty Stud, Protruding Head, Slotted

Click for a larger picture of

These light-duty Camloc studs are rated for 200 pounds working strength (ultimate tensile strength 300 pounds). The slot head allows use with standard flat-blade screwdrivers (no special tools needed). Sold individually.

The dash number is normally stamped on the head of the stud. This number corresponds to the overall stud length in inches using the following formulae:

Dash number = (Length - 0.73) / 0.03
Length = (Dash Number * 0.03) + 0.73

26 Series Camloc Stud Size Chart
Stud Dash NumberStud Length
(Overall)
Total Grip*Part Number
26S1-2 0.79" .060"-.089"CAM2600-02
26S1-3 0.82" .090"-.119"CAM2600-03
26S1-4 0.85" .120"-.149"CAM2600-04
26S1-5 0.88" .150"-.179"CAM2600-05
26S1-6 0.91" .180"-.209"CAM2600-06
26S1-7 0.94" .210"-.239"CAM2600-07
26S1-8 0.97" .240"-.269"CAM2600-08
26S1-9 1.00" .270"-.299"CAM2600-09
26S1-10 1.03" .300"-.329"CAM2600-10
26S1-11 1.06" .330"-.359"CAM2600-11


* Total Grip is the total thickness of the panels to be fastened. When using the 27 Series Side Mount Receptacle, measure from the front of the removeable panel to the top of the receptacle.

Order Qty

Part No.

Desc.

Price

Status

CAM2600-2

Camloc 2600-2 Slot Head Stud

$4.99 In Stock

CAM2600-3

Camloc 2600-3 Slot Head Stud

$5.69 In Stock

CAM2600-4

Camloc 2600-4 Slot Head Stud

$5.99 In Stock

CAM2600-5

Camloc 2600-5 Slot Head Stud

$5.99 In Stock

CAM2600-6

Camloc 2600-6 Slot Head Stud

$6.29 In Stock

CAM2600-7

Camloc 2600-7 Slot Head Stud

$6.29 In Stock

CAM2600-8

Camloc 2600-8 Slot Head Stud

$6.49 In Stock

CAM2600-9

Camloc 2600-9 Slot Head Stud

$6.99 In Stock

CAM2600-10

Camloc 2600-10 Slot Head Stud

$6.99 In Stock

CAM2600-11

Camloc 2600-11 Slot Head Stud

$6.99 In Stock
