Brand: AIM Sports
| This item qualifies for FREE Shipping in the continental United States! |
Why run two separate sensors for pressure and temperature? AiM has combined both functions into one compact sensor!
This 0-50 psi sensor is suitable for measuring coolant pressure, fuel pressure, or boost pressure. It measures pressure only, relative to standardized atmospheric (also called "sealed gauge pressure", 0 psi on this sensor equals atmospheric pressure).
KA pressure sensors are more robust than the old VDO-style pressure sensors, but all sensors should still be isolated from engine heat and vibration whenever possible. It is compatible with all AiM MX-Series dashes, EVO3/EVO4/EVO5 loggers, CAN Channel Expansion Hub, the MyChron Expansion, and ACC/ACC2/ACC3 expansions. 1/8 NPT male threads. Body design may vary from photo. Sold individually.

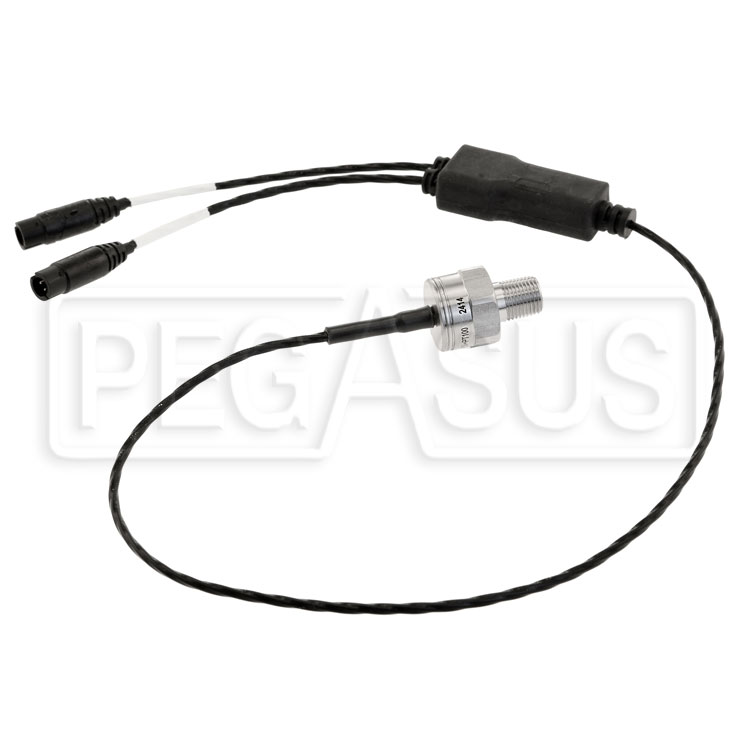

This sensor has a 50cm (19.68") long cable with two 719 (four-pin plastic push-on type) connectors permanently attached. Use My Chron 719-719 Patch Cables (Part No. MC-211) to connect to any AiM MX-Series dash, EVO3/EVO5 logger, or ACC-Series expansion. EVO4/EVO4S, CAN Channel Expansion Hub, and MyChron Expansion require 712-719 Patch Cables (Part No. MC-210, sold separately).
Note: This sensor requires a "+Vb" (full 12 Vbattery voltage) power supply, not the traditional "Vref" (regulated 5V reference signal) used by older sensors. Current MX-Series dashes, EVO4 and later loggers, MyChron Expansion, CAN Channel Expansion Hub, and ACC-Series expansions have the +Vb supply available on all analog channels. MyChron3 and older dashes do not have the necessary +Vb supply on any channel. MXL Pista and EVO3 Pista only have +Vb on Channels 4 through 8. MXL Pro and EVO3 Pro only have +Vb on Channels 8 through 11.
