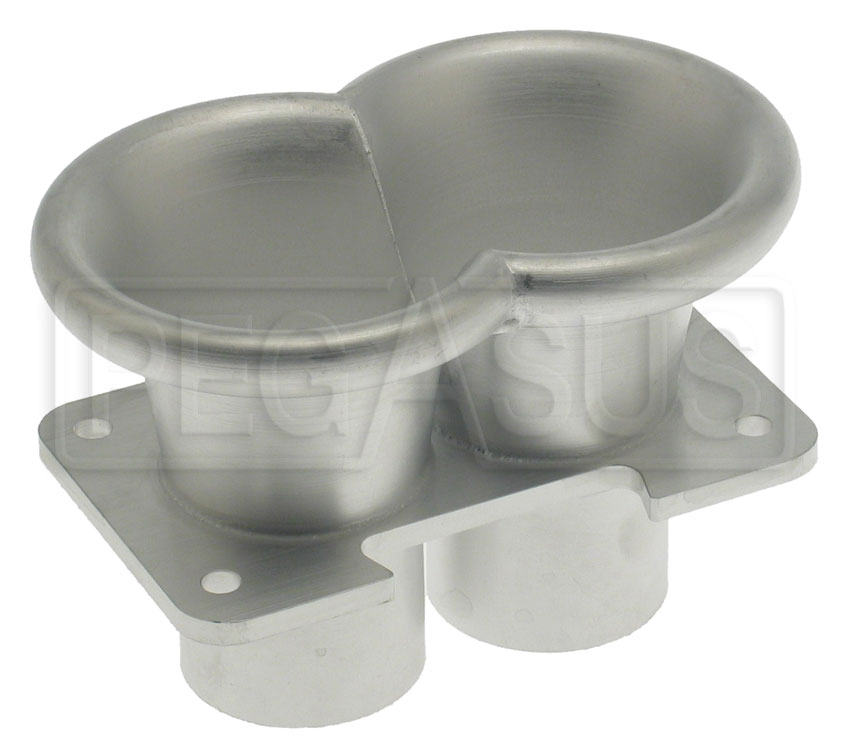

Velocity Stack (Air Horn) for Weber 32/36 DGV Carburetor

Click for a larger picture of Velocity Stack (Air Horn) for Weber 32/36 DGV Carburetor
View Catalog Page in PDF format
This item qualifies for FREE Shipping in the continental United States!

This aluminum velocity stack is designed specifically for Weber 32/36 DGV, DGAV, and DGAS Carburetors. Dyno tests show increases of 1.5 horsepower on both FF1600 and F2000/S2000 engines with no jetting changes.

This air horn assembly extends a total of 3.25 inches above the carburetor top plate surface. The cold-start choke assembly must be removed for this assembly to fit. A 4-bolt flange allows you to mount your K&N or Pipercross air filter base plate (sold separately) directly to the air horn assembly. No hardware is included.

Dimensions:
Top of airhorn to carb top plate surface: 3.25"
Top of airhorn to carb top plate projection horn (highest point on carb): 2.625"
Top of airhorn to 4-bolt airhorn flange bottom surface: 2.175"
Airhorn flange thickness: 0.188"
Length at top of airhorn: 5.25"
Width at top of airhorn: 3.375"

Qty
Part No.
Price
Stock Status
3890

Condition: New

$299.99
In Stock


DGAV Air Horns

5

I bought thi item to avoid cutting up the rear tail piece on my VDRF80. The build quality is very good. Reason for purchase was purely cosmetic. I have since fitted a set to my Lotus 69FF. There may be a subtle improvement but it is hard to tell. They certainly look good. Since my purchase a couple of fellow FF racers on the grid have bought them too.

Marty

Auckland, New Zeland
