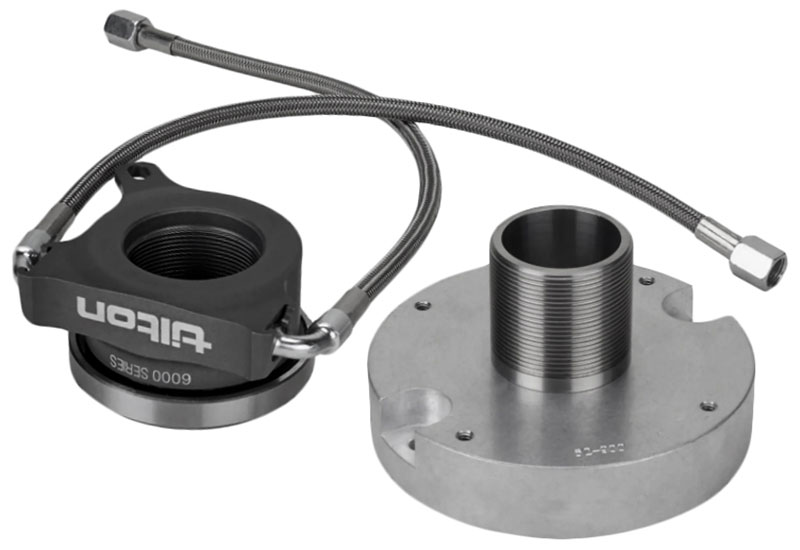

Tilton 6000-Series HRB, Tremec TR6060, 2.66-3.63Hi Flat Face

Brand: Tilton Engineering

This direct-acting throwout bearing eliminates all lost motion due to cable stretch or linkage flex. The adjustable-height base is designed to fit over the OEM bearing retainer on the Tremec TR6060 transmission.

The flat-faced bearing has a wide 1.71" to 2.83" diameter contact surface for most 8 1/2" to 10 1/2" stock and high-performance street clutches. The assembled height is adjustable from 2.66" to 3.63" to suit virtually any clutch brand. A special anti-rotation stud (supplied) locks down the height adjustment. Maximum travel is 0.70 inches, so a clutch pedal stop must be used to prevent damage to the clutch and the engine. Tilton recommends pairing this assembly with a 7/8" bore master cylinder (sold separately). AN4 pressure and bleed hoses are supplied.

We also stock the Tilton Hydraulic Release Bearing Rebuild Kit (Part No. 163-51).
