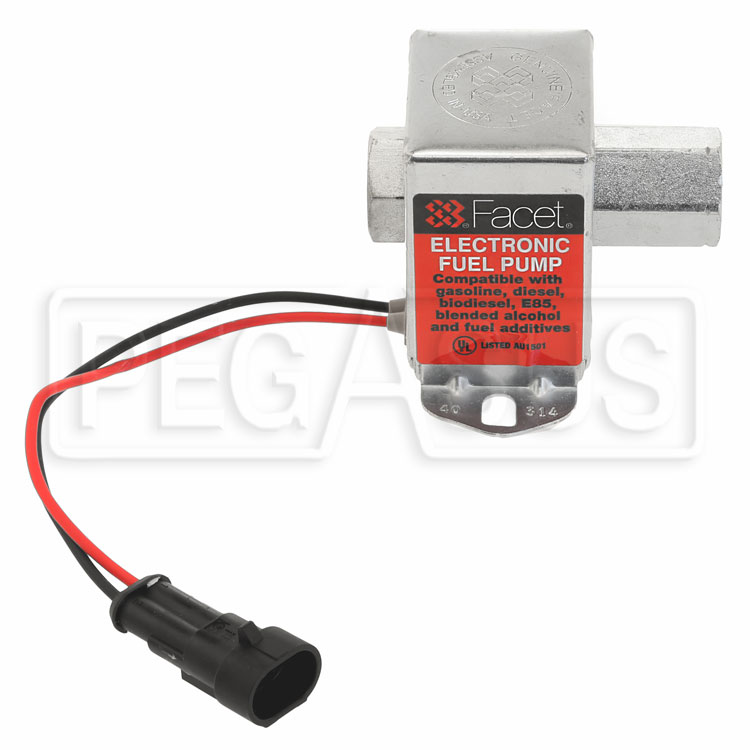

Facet Cube 12v Fuel Pump, 1/8 NPT, 2.0-4.5 psi, Stainless

Facet solid-state Cube Style electric fuel pumps are found in all kinds of industrial applications worldwide, from generators to heavy construction equipment. Facet fuel pumps have low power requirements (about 1 amp at 12 volts) and operate without troublesome seals or diaphragms. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

This model 40314 is rated for a maximum fuel delivery of 28 gallons per hour, or maximum pressure of 2.0 to 4.5 psi. Typical applications might see 20 gallons per hour at 2 psi. 1/8 NPT female ports. This pump has an application-specific 2-pin Amp connector installed on the wires and stainless steel internals for corrosion protection.

Built-in pressure relief means no flooding after shutting down a hot engine. The 60" dry lift rating allows some flexibility in mounting, and a one-way check valve prevents fuel from draining back to the tank when the pump is turned off. It does not have an anti-siphon valve, so fuel can be pulled forward through the pump when it is turned off. This pump is interchangeable with Kohler part numbers 6585162, 6585001S, and GM101287-1 as well as Wacker-Neuson Corp 2079990665.

Beware of counterfeits! We only sell Genuine Facet pumps - not the unreliable foreign knock-offs sold elsewhere.

Not sure if this is the pump you need? Check out our article on Finding the Part Number on Facet Fuel Pumps.
