Custom Hose Order Form

Note: Some standard length hoses with a limited number of end fitting choices are available in our line of Pre-Assembled Size 4 Braided PTFE Racing Hoses. The pre-assembled hoses are made on high-speed production equipment and are therefore more economical than custom-made hoses.

Use this page to specify the length and type of hose ends to be installed on your custom-made hose. If you want more than one hose assembly made to the same exact specifications, you can also specify the quantity of hoses to be made. The default quantity is one. The prices of the hose ends shown below include the cost of installation and proof testing.



This custom hose assembly will be made using the following hose material:

Part No. 3260-4-INCH
Custom hose per inch: #4 Stainless Steel Braided PTFE Hose

See bottom of page for more information on this style of hose.



Quantity of hoses made to this exact specification:



Specify the length of the assembled hose: inches

The length of the hose assembly is measured to the center of the sealing surface (the flare for AN fittings). For banjo hose ends, the length is measured to the center of the banjo. The normal length tolerance is 0.25 inch plus 1% of the overall length (plus or minus). Minimum length is 6 inches. Maximum length is 240 inches.


Select Both Hose Ends from this list

Select End A
Select End B
Part No.
Description
Price
Status
Click this thumbnail image to view a larger image

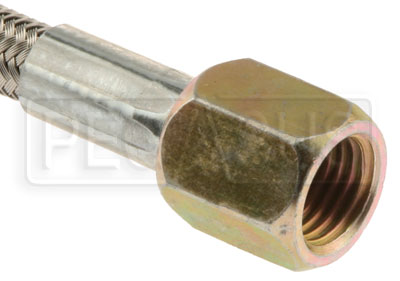

HE001-04P-000

-4 Swaged Hose End, 4AN Female Straight, Steel

$7.59 In Stock
Click this thumbnail image to view a larger image

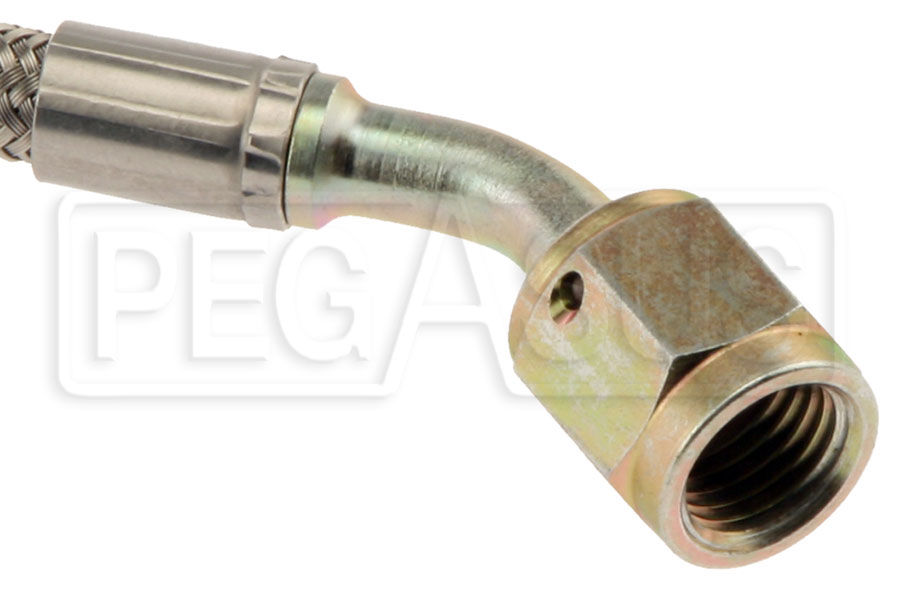

HE001-04P-045

-4 Swaged Hose End, 4AN Female 45 Degree, Steel

$19.49 In Stock
Click this thumbnail image to view a larger image

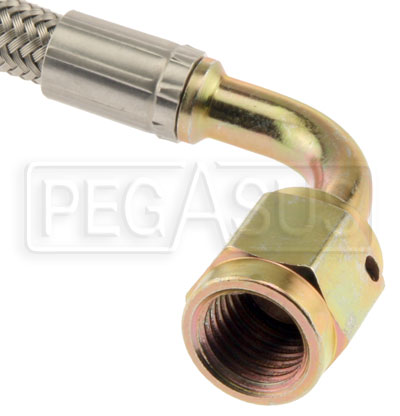

HE001-04P-090

-4 Swaged Hose End, 4AN Female 90 Degree, Steel

$18.49 In Stock
Click this thumbnail image to view a larger image

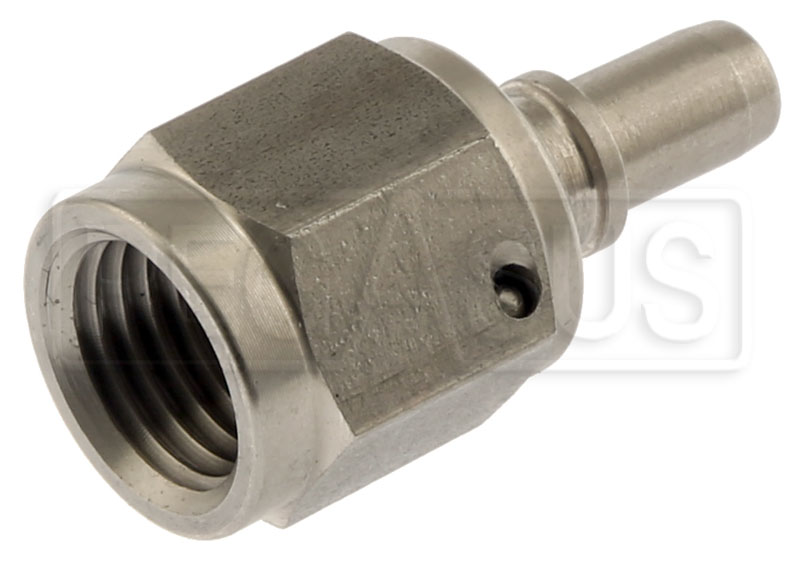

HE002-04P-000

-4 Swaged Hose End, 4AN Female Straight, Stainless

$34.99 In Stock
Click this thumbnail image to view a larger image

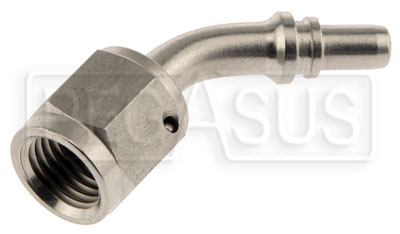

HE002-04P-045

-4 Swaged Hose End, 4AN Female 45 Degree, Stainless

$63.99 In Stock
Click this thumbnail image to view a larger image

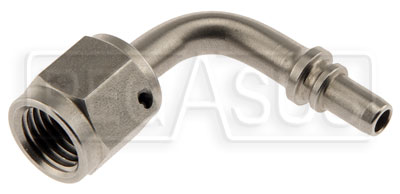

HE002-04P-090

-4 Swaged Hose End, 4AN Female 90 Degree, Stainless

$63.99 In Stock
Click this thumbnail image to view a larger image

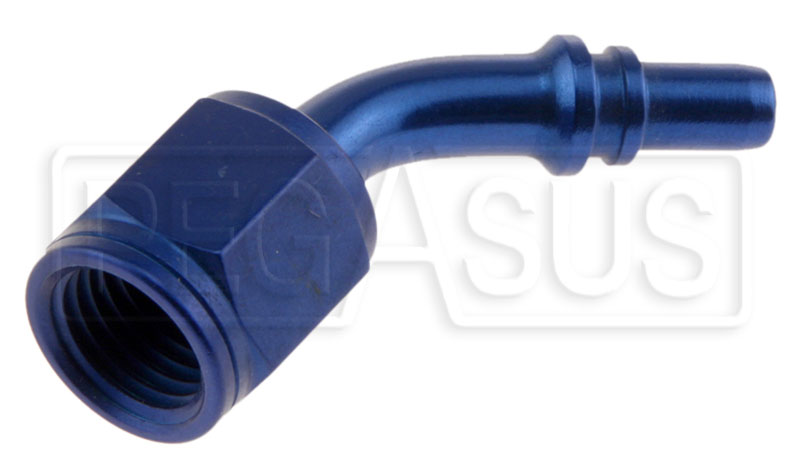

HE005-04P-045

-4 Swaged Hose End, 4AN Female 45 Degree, Aluminum

$44.49 In Stock
Click this thumbnail image to view a larger image

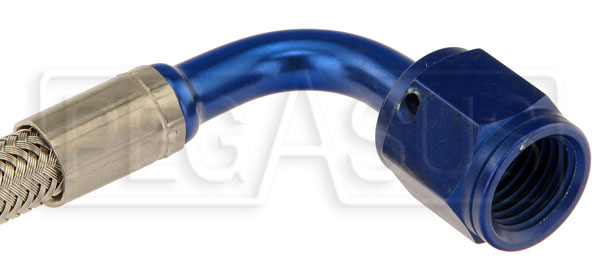

HE005-04P-090

-4 Swaged Hose End, 4AN Female 90 Degree, Aluminum

$37.49 In Stock
Click this thumbnail image to view a larger image

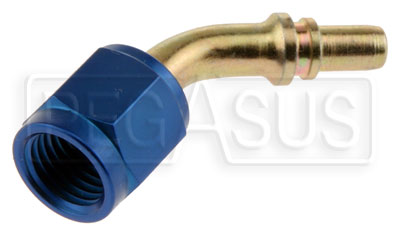

HE010-04P-045

-4 Hose End, 4AN Female 45 Degree, Steel Tube/ Aluminum Nut

$19.99 In Stock
Click this thumbnail image to view a larger image

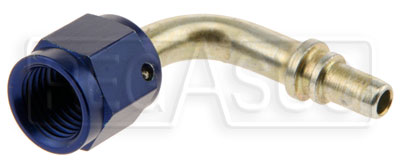

HE010-04P-090

-4 Hose End, 4AN Female 90 Degree, Steel Tube/ Aluminum Nut

$21.29 In Stock
Click this thumbnail image to view a larger image

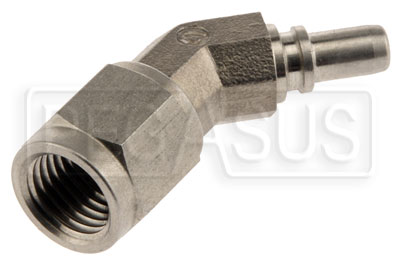

HE012-04P-045

-4 Swaged Hose End, 4AN Female 45 Degree Forged, Stainless

$64.99 In Stock
Click this thumbnail image to view a larger image

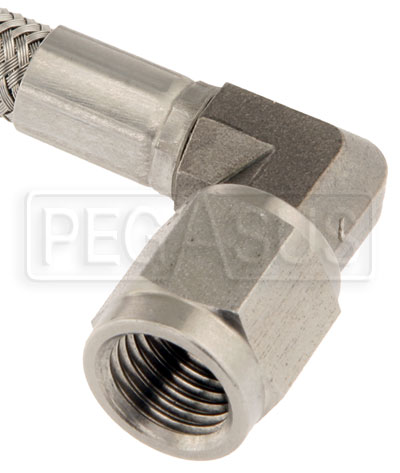

HE012-04P-090

-4 Swaged Hose End, 4AN Female 90 Degree Forged, Stainless

$64.99 In Stock
Click this thumbnail image to view a larger image

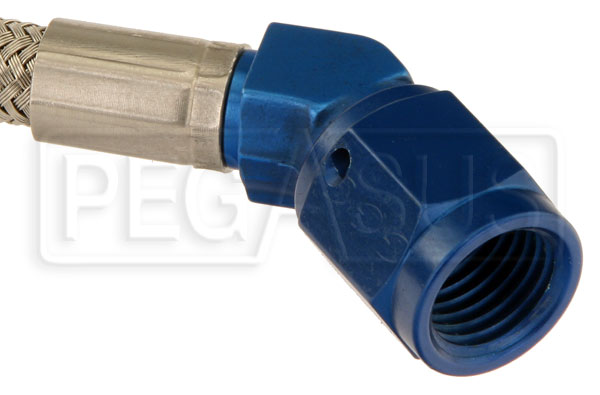

HE013-04P-045

-4 Swaged Hose End, 4AN Female 45 Degree Forged, Aluminum

$48.99 In Stock
Click this thumbnail image to view a larger image

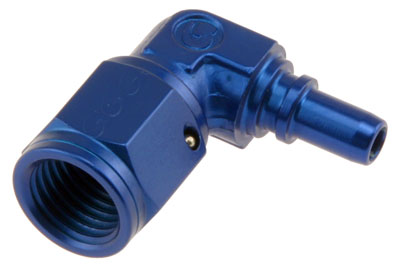

HE013-04P-090

-4 Swaged Hose End, 4AN Female 90 Degree Forged, Aluminum

$48.99 In Stock
Click this thumbnail image to view a larger image

HE020-04P-000

-4 Hose End, 7/16-24 Female Convex Circlip Groove, Steel

$15.99 In Stock
Click this thumbnail image to view a larger image

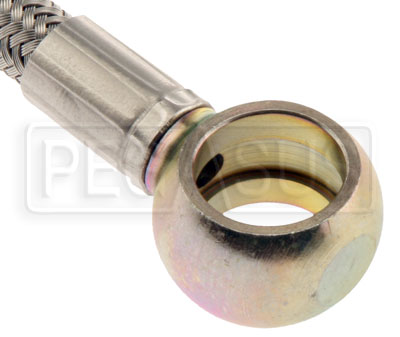

HE080-04P-000

-4 Swaged Hose End, 12mm Banjo Straight, Steel

$30.99 In Stock
Click this thumbnail image to view a larger image

HE086-04P-000

-4 Swaged Hose End, 11.2mm Banjo Straight, Stainless

$53.49 In Stock
Click this thumbnail image to view a larger image

HE088-04P-000

-4 Swaged Hose End, 11.2mm Banjo Straight, Aluminum

$40.99 In Stock
Click this thumbnail image to view a larger image

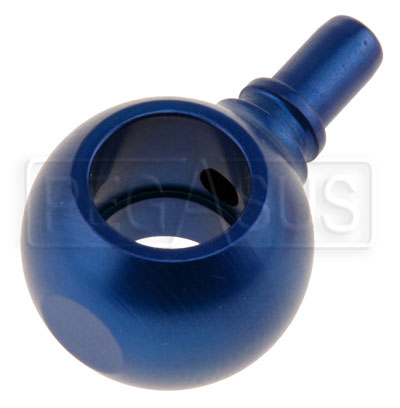

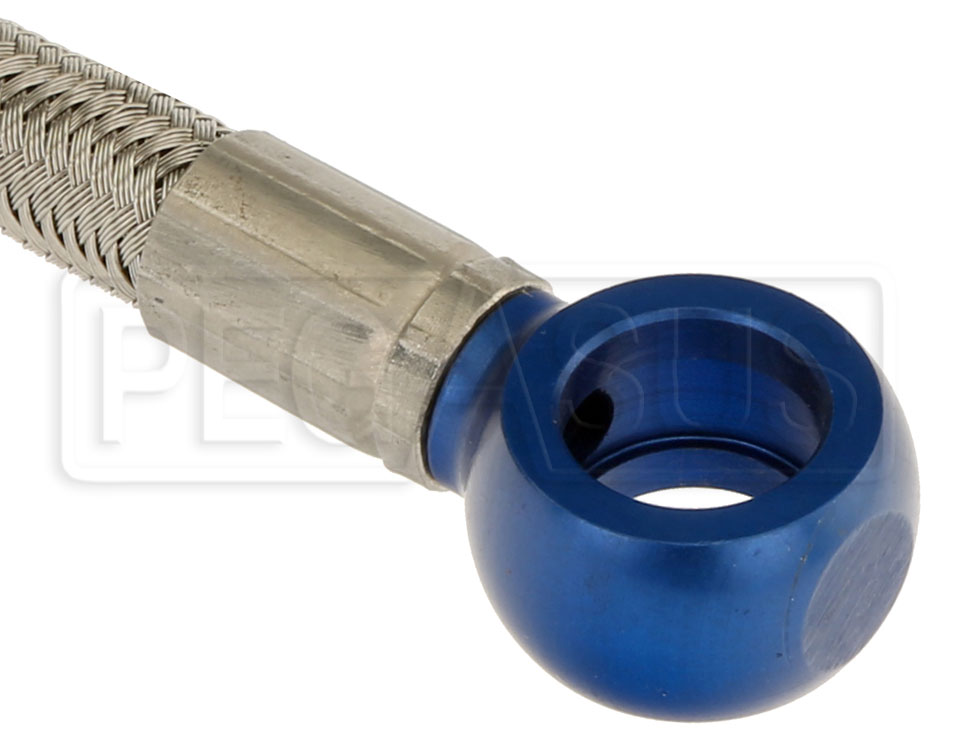

HE092-04P-000

-4 Swaged Hose End, 10mm Banjo Straight, Aluminum

$40.99 In Stock
Click this thumbnail image to view a larger image

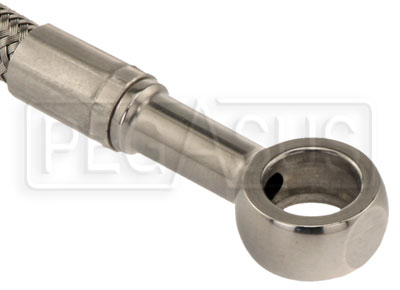

HE102-04P-000

-4 Hose End, 10mm Extended Neck Banjo, Straight, Stainless

$29.99 In Stock
Click this thumbnail image to view a larger image

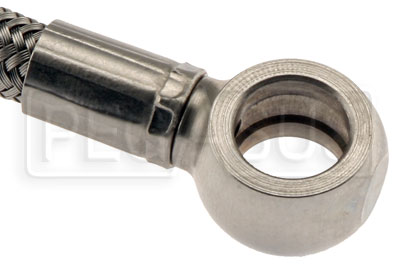

HE112-04P-000

-4 Swaged Hose End, 10mm Banjo Straight, Stainless

$55.49 In Stock


Specify Fitting Alignment:

Important Note: It can be very difficult to determine the fitting alignment without trial and error. When bends are introduced to the hose, the apparent orientation can change significantly. If at all possible, at least one end of the hose should have a straight fitting with a swivel nut (or a straight bulkhead mounted fitting) so that you don't have to worry about fitting alignment. If one end DOES have a straight fitting with a swivel nut (or a straight bulkhead mounted fitting) , just leave the alignment at the 0° default value.
Fitting Alignment Illustration



Detailed Description of Hose Material

Part No. 3260-4-INCH
Custom hose per inch: #4 Stainless Steel Braided PTFE Hose

This high pressure extruded PTFE hose has a stainless steel wire braid cover. We recommend 3AN for brake lines for the firmest pedal. Only steel, stainless steel, or high pressure brass fittings should be used with brake lines. Rated for use at -90°F to +450°F. Maximum operating pressure 4,000 psi. Minimum burst pressure 12,000 psi.

-2 Hose ID: 0.079" - OD: 0.20" - Minimum Bend Radius: 0.6"
-3 Hose ID: 0.138" - OD: 0.25" - Minimum Bend Radius: 1.5"
-4 Hose ID: 0.197" - OD: 0.30" - Minimum Bend Radius: 2.0"

-2 size is typically used for brake lines on motorcycles and open-wheel cars where the line is enclosed in a suspension arm.
-3 size is the most common size for brake lines and oil pressure gauge lines. It is also popular for clutch lines.
-4 size is ideal for clutch lines. It is also used for brake lines where a lot of fluid is displaced (such as drum brake systems).

Assembly Instructions for Steel Braided PTFE Brake Hose
