Part No. 3490
910 Aramid Braided PTFE Racing Hose, 8AN - per inch
Goodridge G-Line XF 910 hose was developed with professional racing teams who needed a super-flexible, ultra-lightweight fuel hose with excellent flow that wouldn't collapse under vacuum.
The anti-static PTFE liner is compatible with all types of racing fluids (coolant, oil, brake fluid) and ALL types of fuel (gasoline, diesel, E85, alcohol, and nitromethane). It is also fully resistant to fuel vapor penetration. Unique semi-corrugated liner design is much more flexible than other types of hose, but the smooth bore retains optimum flow. The hose ends (sold separately) require no special tooling to assemble, so you can build hoses at the track. Black Aramid braid has a yellow strand for easy identification. 910 hose is specifically listed by the NHRA as an approved Woven hose type.

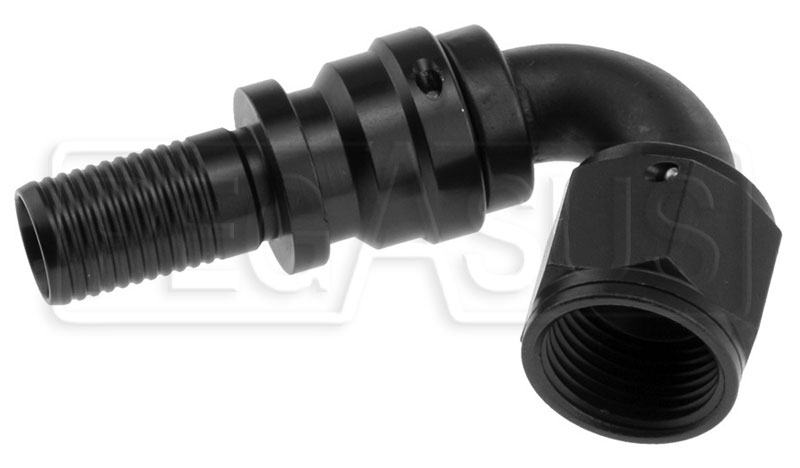

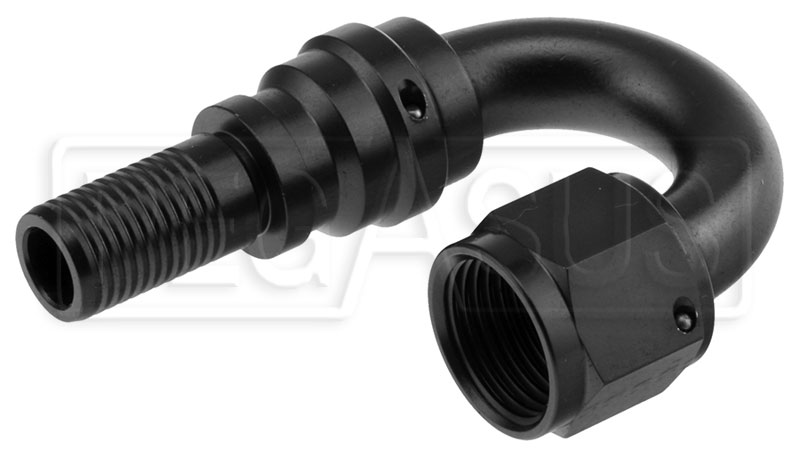

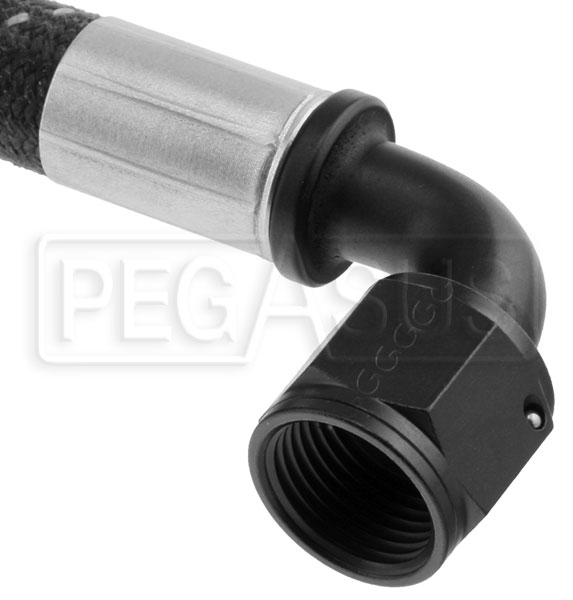

Note: This hose is only compatible with our 811 Tube-Style AN Hose Ends (Part No. 3481) or 811 Forged AN Hose Ends (Part No. 3484). It is not compatible with any other hose ends, and it cannot be clamped on a hose barb!
Hose Assembly Instructions for Type 811 and Type 910 Hose
|Type 910 Aramid Braided Racing Hose
* Reusable hose ends not available in 20AN size. This size is stocked for Custom-Made Hoses only.
All sizes are rated to 30 in-Hg vacuum service up to 130°C (266°F). Temperature range -45°C to 170°C (-49°F to 338°F).
We also offer 811 Stainless Steel Braided Racing Hose (Part No. 3480), which features the same anti-static PTFE liner with a heavy-duty stainless steel outer braid.
Please Note: Due to manufacturing limitations, the PTFE liner is not one continuous extrusion, as on other hoses. The liner consists of shorter lengths (approximately 20-30 feet long, depending on the hose size) which are spliced together to allow the outer braid to be produced. These spliced areas are visibly necked-down and marked to be easy to spot. Splices must not be used in hoses! Orders for less than 20 feet will not contain a splice. If you are ordering more than 20 feet of hose, please let us know the minimum uncut lengths that you require.
