Custom Hose Order Form

Note: Some standard length hoses with a limited number of end fitting choices are available in our line of Pre-Assembled Size 3 Braided PTFE Racing Hoses. The pre-assembled hoses are made on high-speed production equipment and are therefore more economical than custom-made hoses.

Use this page to specify the length and type of hose ends to be installed on your custom-made hose. If you want more than one hose assembly made to the same exact specifications, you can also specify the quantity of hoses to be made. The default quantity is one. The prices of the hose ends shown below include the cost of installation and proof testing.



This custom hose assembly will be made using the following hose material:

Part No. 3260-3-INCH
Custom hose per inch: #3 Stainless Steel Braided PTFE Hose

See bottom of page for more information on this style of hose.



Quantity of hoses made to this exact specification:



Specify the length of the assembled hose: inches

The length of the hose assembly is measured to the center of the sealing surface (the flare for AN fittings). For banjo hose ends, the length is measured to the center of the banjo. The normal length tolerance is 0.25 inch plus 1% of the overall length (plus or minus). Minimum length is 6 inches. Maximum length is 240 inches.


Select Both Hose Ends from this list

Select End A
Select End B
Part No.
Description
Price
Status
3AN Female Hose Ends
Click this thumbnail image to view a larger image

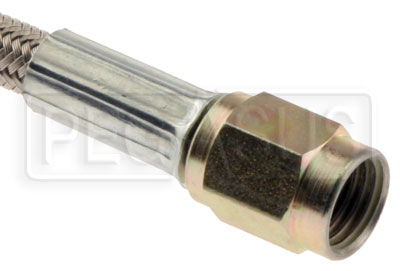

HE001-03P-000

-3 Swaged Hose End, 3AN Female Straight, Steel

$8.99 In Stock
Click this thumbnail image to view a larger image

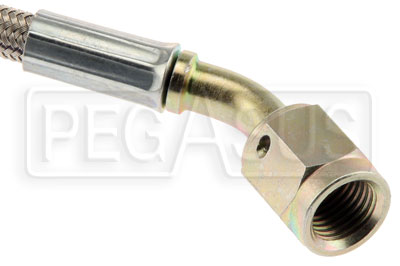

HE001-03P-045

-3 Swaged Hose End, 3AN Female 45 Degree, Steel

$17.29 In Stock
Click this thumbnail image to view a larger image

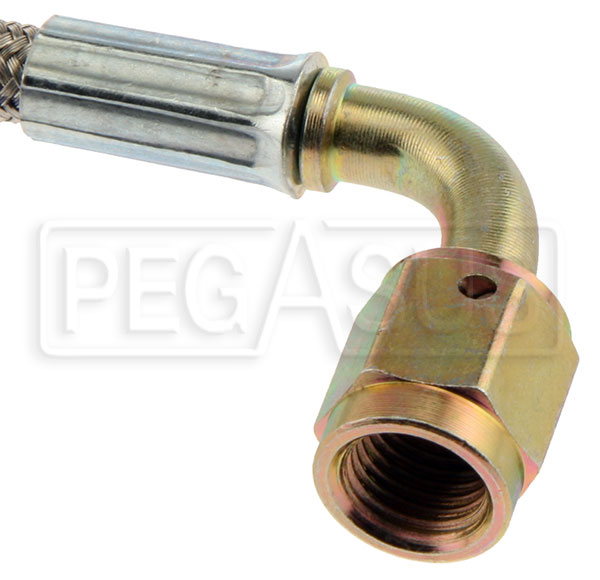

HE001-03P-090

-3 Swaged Hose End, 3AN Female 90 Degree, Steel

$14.79 In Stock
Click this thumbnail image to view a larger image

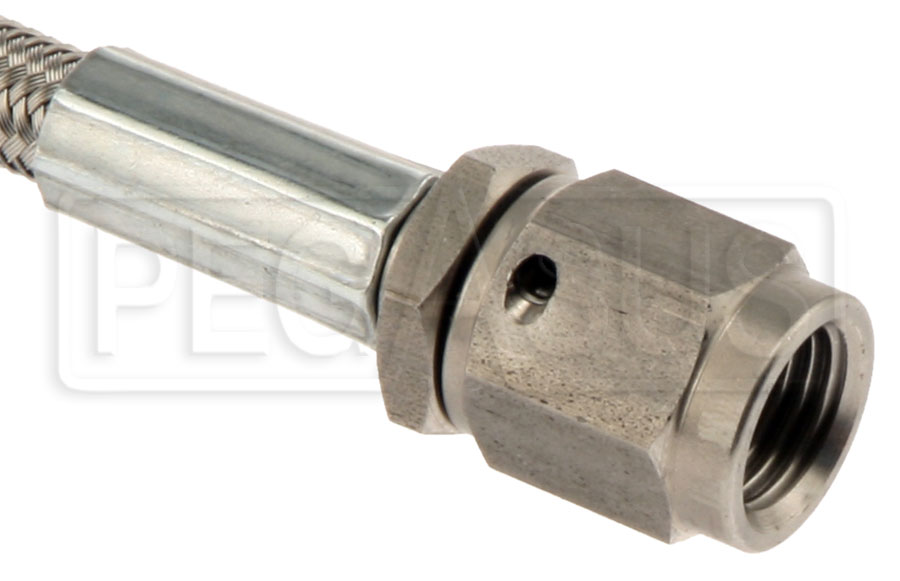

HE002-03P-000

-3 Swaged Hose End, 3AN Female Straight, Stainless

$24.29 In Stock
Click this thumbnail image to view a larger image

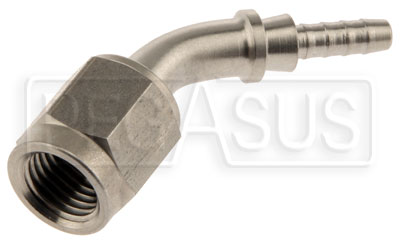

HE002-03P-045

-3 Swaged Hose End, 3AN Female 45 Degree, Stainless

$44.49 In Stock
Click this thumbnail image to view a larger image

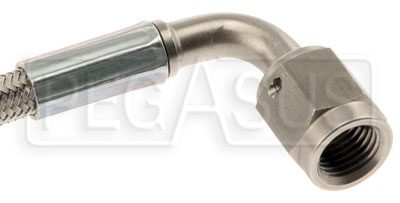

HE002-03P-090

-3 Swaged Hose End, 3AN Female 90 Degree, Stainless

$39.49 In Stock
Click this thumbnail image to view a larger image

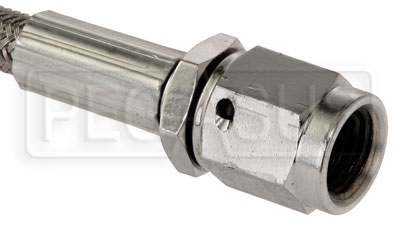

HE003-03P-000

-3 Swaged Hose End, 3AN Female Straight, Chrome

$14.79 In Stock
Click this thumbnail image to view a larger image

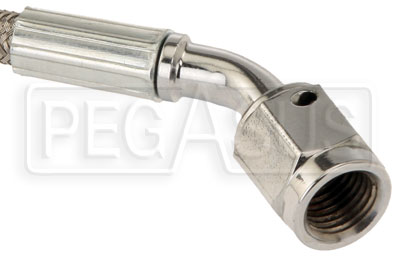

HE003-03P-045

-3 Swaged Hose End, 3AN Female 45 Degree, Chrome

$23.29 In Stock
Click this thumbnail image to view a larger image

HE003-03P-090

-3 Swaged Hose End, 3AN Female 90 Degree, Chrome

$19.79 In Stock
Click this thumbnail image to view a larger image

HE005-03P-045

-3 Swaged Hose End, 3AN Female 45 Degree, Aluminum

$47.49 In Stock
Click this thumbnail image to view a larger image

HE005-03P-090

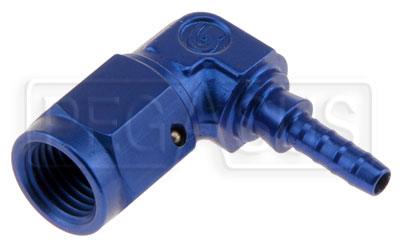

-3 Swaged Hose End, 3AN Female 90 Degree, Aluminum

$29.99 In Stock
Click this thumbnail image to view a larger image

HE010-03P-045

-3 Hose End, 3AN Female 45 Degree, Steel Tube/ Aluminum Nut

$9.39 In Stock
Click this thumbnail image to view a larger image

HE010-03P-090

-3 Hose End, 3AN Female 90 Degree, Steel Tube/ Aluminum Nut

$18.29 In Stock
Click this thumbnail image to view a larger image

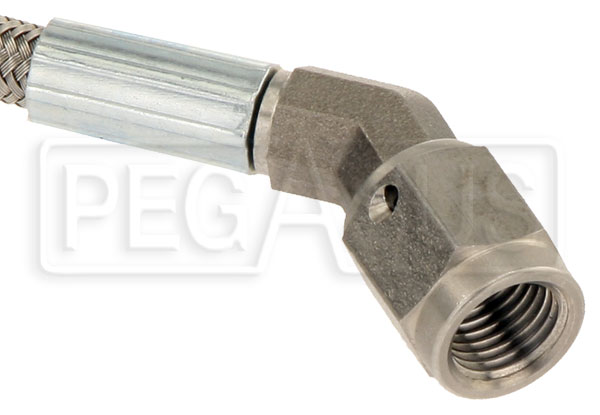

HE012-03P-045

-3 Swaged Hose End, 3AN Female 45 Degree Forged, Stainless

$35.99 In Stock
Click this thumbnail image to view a larger image

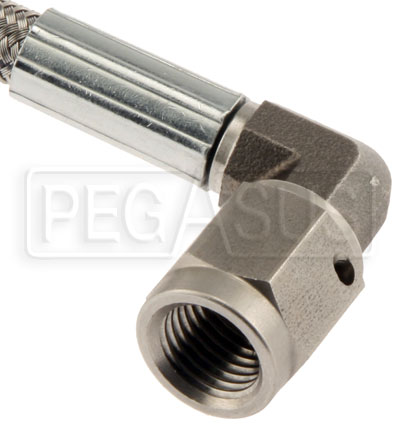

HE012-03P-090

-3 Swaged Hose End, 3AN Female 90 Degree Forged, Stainless

$36.49 In Stock
Click this thumbnail image to view a larger image

HE013-03P-045

-3 Swaged Hose End, 3AN Female 45 Degree Forged, Aluminum

$47.99 In Stock
Click this thumbnail image to view a larger image

HE013-03P-090

-3 Swaged Hose End, 3AN Female 90 Degree Forged, Aluminum

$44.99 In Stock
Click this thumbnail image to view a larger image

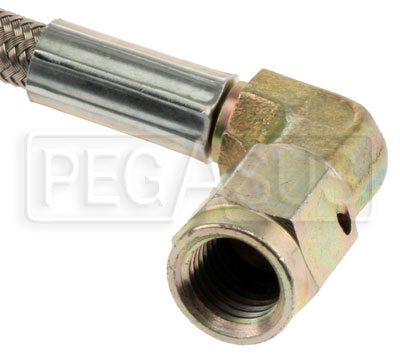

HE014-03P-090

-3 Swaged Hose End, 3AN Female 90 Degree Forged, Steel

$24.29 In Stock
4AN Female Hose Ends (for -3 hose)
Click this thumbnail image to view a larger image

HE018-03P-090

-3 Swaged Hose End, 4AN Female 90 Degree, Steel

$19.49 In Stock
Click this thumbnail image to view a larger image

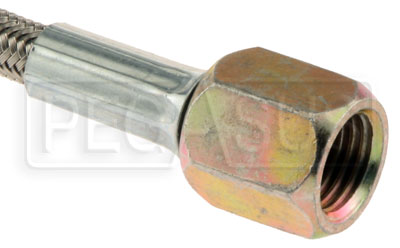

HE019-03P-000

-3 Swaged Hose End, 4AN Female Straight, Steel

$8.49 In Stock
Click this thumbnail image to view a larger image

HE019-03P-045

-3 Swaged Hose End, 4AN Female 45 Degree, Stainless

$60.99 In Stock
3/8-24 Male Hose Ends
Click this thumbnail image to view a larger image

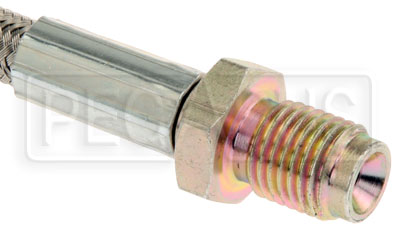

HE025-03P-000

-3 Swaged Hose End, 3/8-24 Male Concave Seat, Steel

$15.79 In Stock
Click this thumbnail image to view a larger image

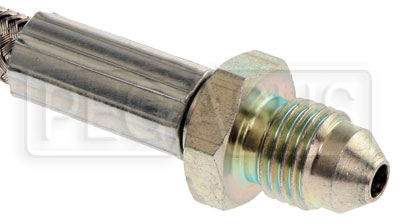

HE030-03P-000

-3 Swaged Hose End, 3AN Male (3/8-24, 37 degree flare) Steel

$13.79 In Stock
Click this thumbnail image to view a larger image

HE031-03P-000

-3 Swaged Hose End, 3AN Male (3/8-24, 37deg flare) Stainless

$24.29 In Stock
Click this thumbnail image to view a larger image

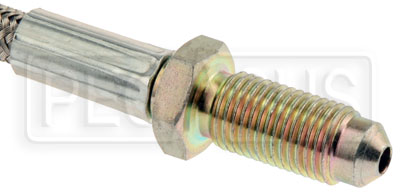

HE035-03P-000

-3 Swaged Hose End, 3AN Male Bulkhead (3/8-24, 37deg), Steel

$11.79 In Stock
Click this thumbnail image to view a larger image

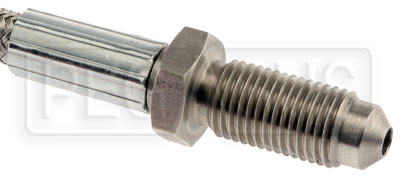

HE036-03P-000

-3 Swaged Hose End, 3AN Male Bulkhead (3/8-24), Stainless

$27.79 In Stock
Click this thumbnail image to view a larger image

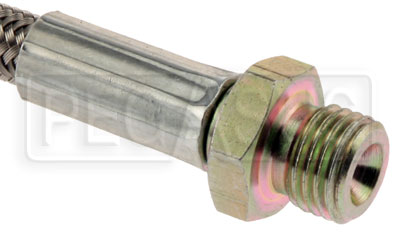

HE040-03P-000

-3 Swaged Hose End, 3/8-24 Male Flat Seat, Steel

$28.49 In Stock
Click this thumbnail image to view a larger image

HE041-03P-000

-3 Hose End, 3/8-24 Female Convex Circlip Groove, Steel

$17.99 In Stock
1/8 NPT Hose Ends
Click this thumbnail image to view a larger image

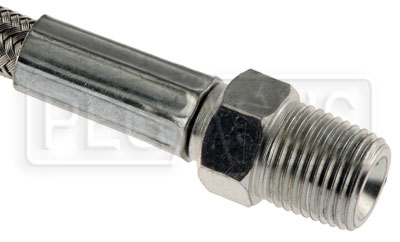

HE042-03P-000

-3 Swaged Hose End, 1/8 NPT Male

$18.99 In Stock
1/8 BSP Hose Ends
Click this thumbnail image to view a larger image

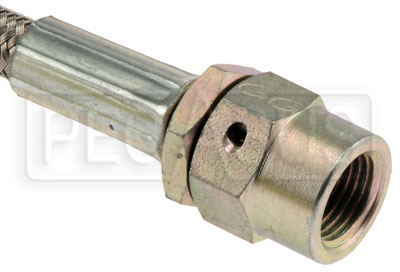

HE045-03P-000

-3 Swaged Hose End, 1/8 BSP Female Straight, Steel

$15.49 In Stock
Click this thumbnail image to view a larger image

HE045-03P-045

-3 Swaged Hose End, 1/8 BSP Female 45 Degree, Steel

$25.49 In Stock
Click this thumbnail image to view a larger image

HE045-03P-090

-3 Swaged Hose End, 1/8 BSP Female 90 Degree, Steel

$23.79 In Stock
Click this thumbnail image to view a larger image

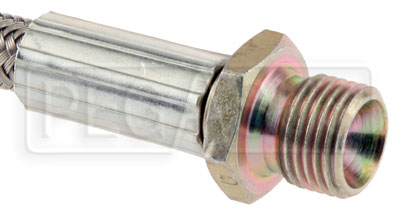

HE050-03P-000

-3 Swaged Hose End, 1/8 BSP Male Straight, Steel

$19.79 In Stock
Banjo Hose Ends (Banjo Bolts & Washers sold separately)
Click this thumbnail image to view a larger image

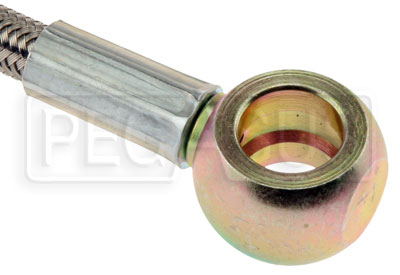

HE090-03P-000

-3 Swaged Hose End, 10mm Banjo Straight, Steel

$13.49 In Stock
Click this thumbnail image to view a larger image

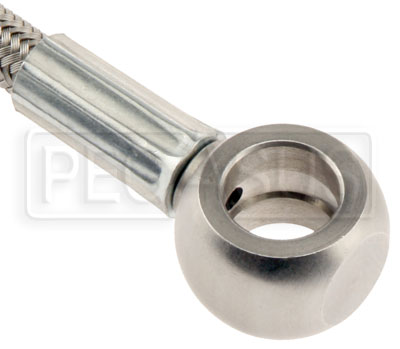

HE091-03P-000

-3 Swaged Hose End, 10mm Banjo Straight, Stainless

$21.49 In Stock
Click this thumbnail image to view a larger image

HE092-03P-000

-3 Swaged Hose End, 10mm Banjo Straight, Aluminum

$25.29 In Stock
Click this thumbnail image to view a larger image

HE093-03P-000

-3 Swaged Hose End, 10mm Banjo Straight, Chrome

$30.49 In Stock
Click this thumbnail image to view a larger image

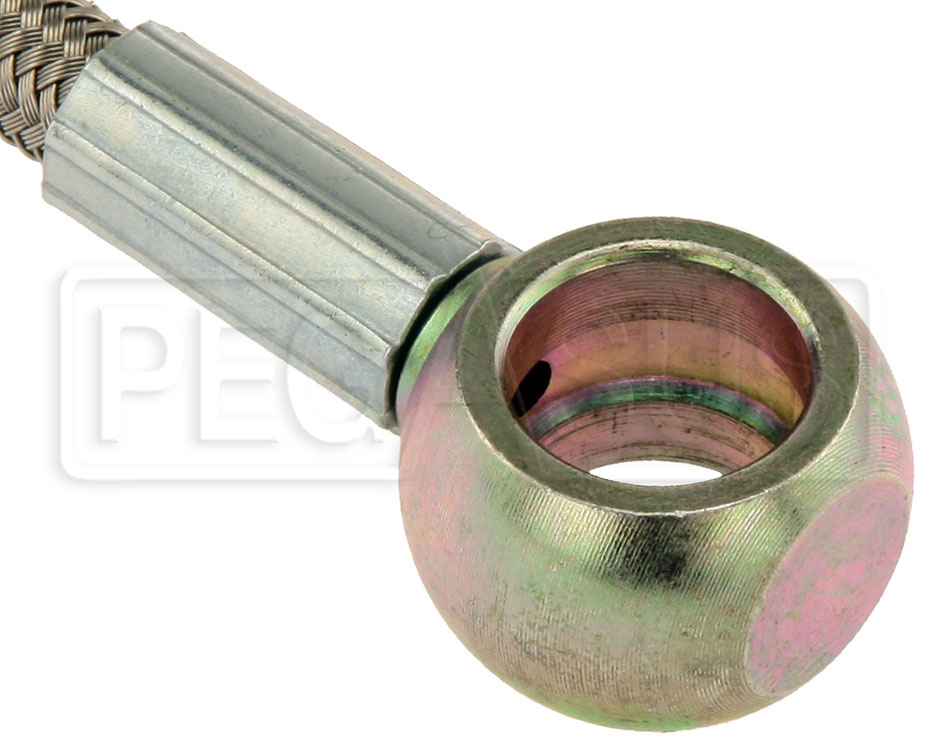

HE094-03P-000

-3 Swaged Hose End, 11.2mm Banjo Straight, Steel

$13.49 In Stock
Click this thumbnail image to view a larger image

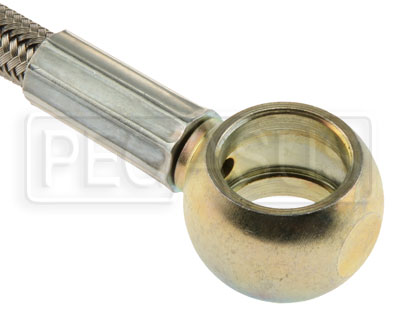

HE095-03P-000

-3 Swaged Hose End, 12mm Banjo Straight, Steel

$18.49 In Stock
Click this thumbnail image to view a larger image

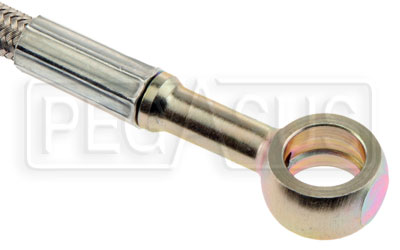

HE101-03P-000

-3 Hose End, 10mm Extended Neck Banjo, Straight, Steel

$13.79 In Stock
Click this thumbnail image to view a larger image

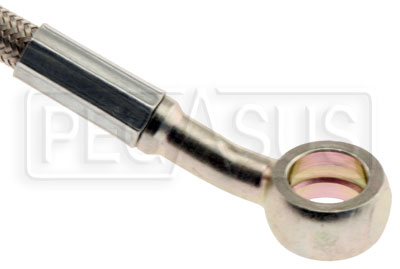

HE101-03P-020

-3 Hose End, 10mm Extended Neck 20 Degree Banjo, Steel

$13.79 In Stock
Click this thumbnail image to view a larger image

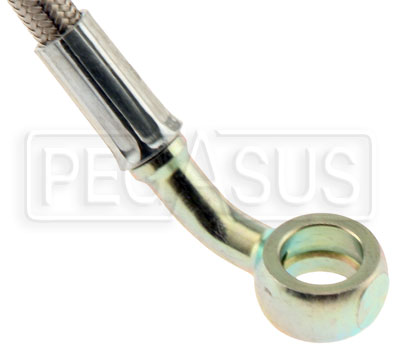

HE101-03P-045

-3 Hose End, 10mm Extended Neck 45 Degree Banjo, Steel

$15.29 In Stock
Click this thumbnail image to view a larger image

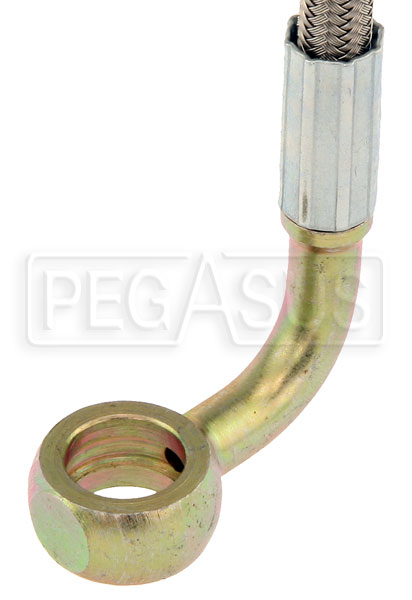

HE101-03P-090

-3 Hose End, 10mm Extended Neck 90 Degree Banjo, Steel

$21.99 In Stock
Click this thumbnail image to view a larger image

HE101-03P-2020L

-3 Swaged Hose End, 10mm Banjo, 20 Up/20 Left, Steel

$19.29 In Stock
Click this thumbnail image to view a larger image

HE101-03P-2020R

-3 Swaged Hose End, 10mm Banjo, 20 Up/20 Right, Steel

$19.29 In Stock
Click this thumbnail image to view a larger image

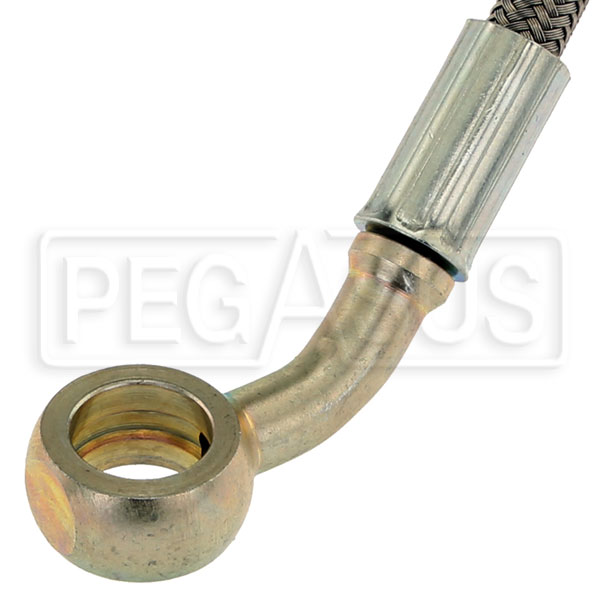

HE101-03P-4545L

-3 Swaged Hose End, 10mm Banjo, 45 Up/45 Left, Steel

$8.79 In Stock
Click this thumbnail image to view a larger image

HE101-03P-4545R

-3 Swaged Hose End, 10mm Banjo, 45 Up/45 Right, Steel

$11.99 In Stock
Click this thumbnail image to view a larger image

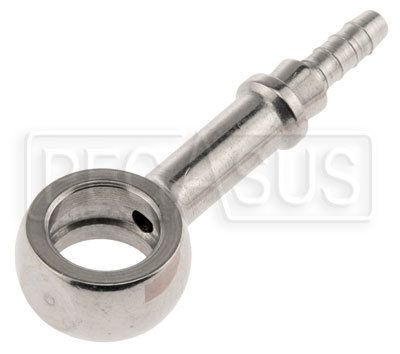

HE102-03P-000

-3 Hose End, 10mm Extended Neck Banjo, Straight, Stainless

$26.99 In Stock
Click this thumbnail image to view a larger image

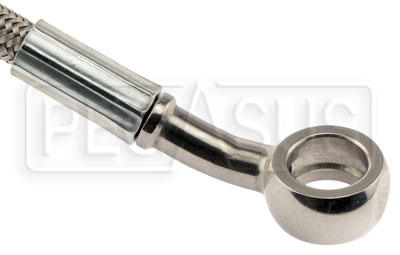

HE102-03P-020

-3 Hose End, 10mm Extended Neck 20 Degree Banjo, Stainless

$26.99 In Stock
Click this thumbnail image to view a larger image

HE102-03P-045

-3 Hose End, 10mm Extended Neck 45 Degree Banjo, Stainless

$20.79 In Stock
Click this thumbnail image to view a larger image

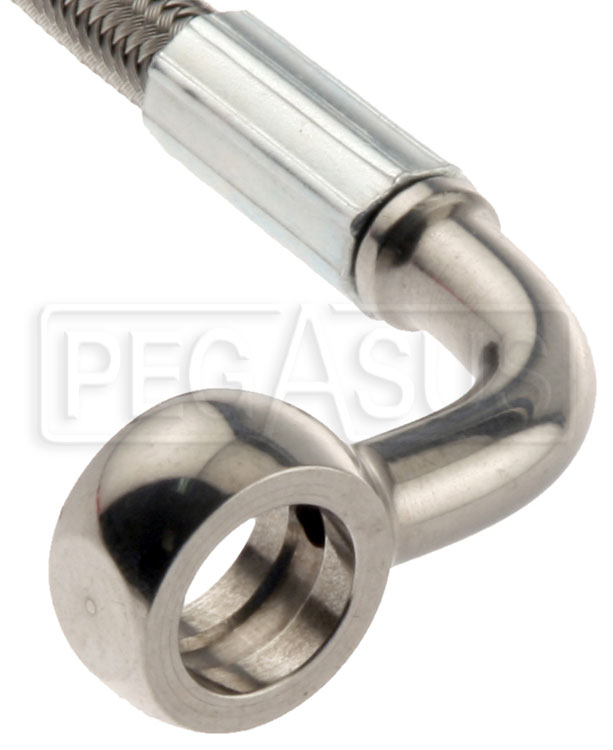

HE102-03P-090

-3 Hose End, 10mm Extended Neck 90 Degree Banjo, Stainless

$33.99 In Stock
Click this thumbnail image to view a larger image

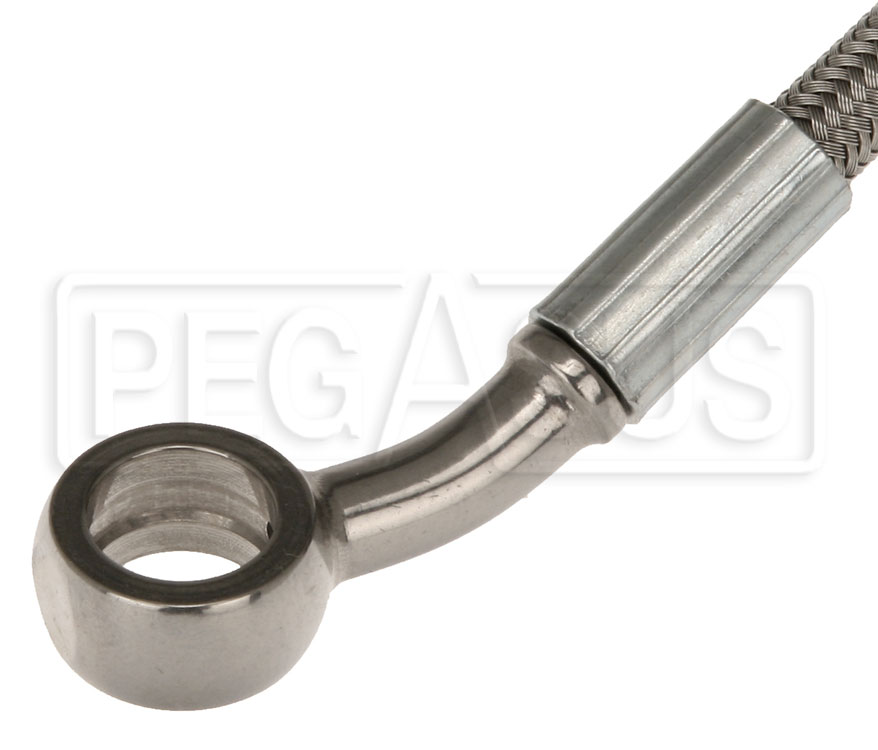

HE102-03P-2020L

-3 Swaged Hose End, 10mm Banjo, 20 Up/20 Left, Stainless

$23.29 In Stock
Click this thumbnail image to view a larger image

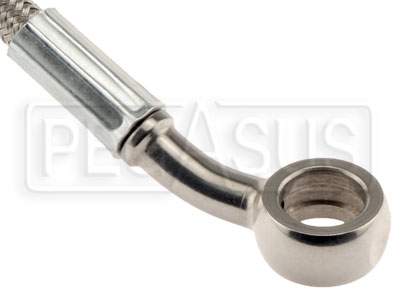

HE102-03P-2020R

-3 Swaged Hose End, 10mm Banjo, 20 Up/20 Right, Stainless

$23.29 In Stock
Click this thumbnail image to view a larger image

HE102-03P-4545L

-3 Swaged Hose End, 10mm Banjo, 45 Up/45 Left, Stainless

$25.49 In Stock
Click this thumbnail image to view a larger image

HE102-03P-4545R

-3 Swaged Hose End, 10mm Banjo, 45 Up/45 Right, Stainless

$26.49 In Stock
Click this thumbnail image to view a larger image

HE103-03P-000

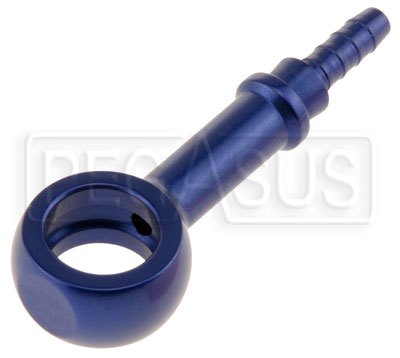

-3 Hose End, 10mm Extended Neck Banjo, Straight, Aluminum

$27.49 In Stock
Click this thumbnail image to view a larger image

HE103-03P-020

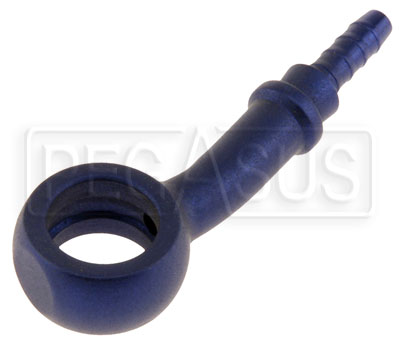

-3 Hose End, 10mm Extended Neck 20 Degree Banjo, Aluminum

$27.49 In Stock
Click this thumbnail image to view a larger image

HE103-03P-045

-3 Hose End, 10mm Extended Neck 45 Degree Banjo, Aluminum

$27.29 In Stock
Click this thumbnail image to view a larger image

HE103-03P-090

-3 Hose End, 10mm Extended Neck 90 Degree Banjo, Aluminum

$29.79 In Stock
Click this thumbnail image to view a larger image

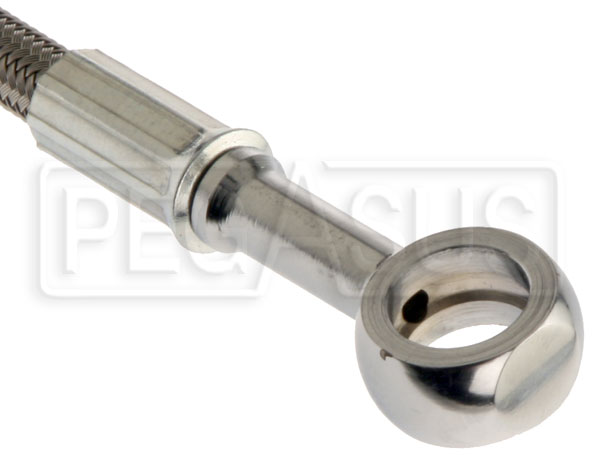

HE104-03P-000

-3 Hose End, 10mm Extended Neck Banjo, Straight, Chrome

$13.79 In Stock
Click this thumbnail image to view a larger image

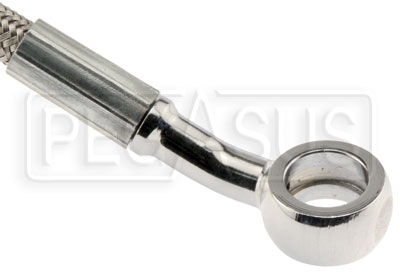

HE104-03P-020

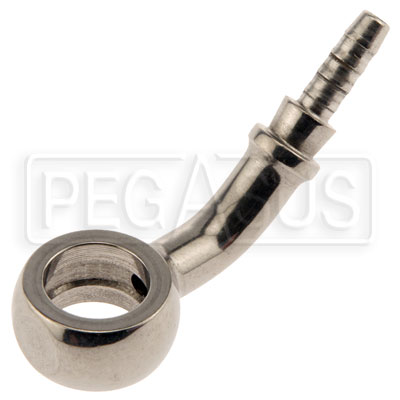

-3 Hose End, 10mm Extended Neck 20 Degree Banjo, Chrome

$14.99 In Stock
Click this thumbnail image to view a larger image

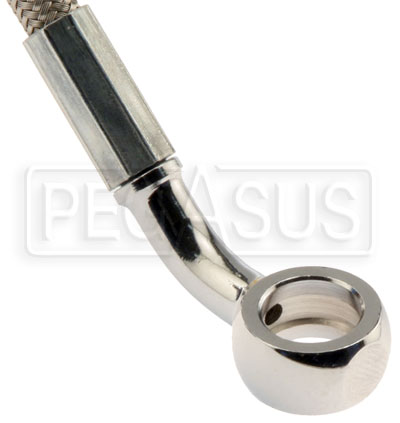

HE104-03P-045

-3 Hose End, 10mm Extended Neck 45 Degree Banjo, Chrome

$15.29 In Stock
Click this thumbnail image to view a larger image

HE104-03P-090

-3 Hose End, 10mm Extended Neck 90 Degree Banjo, Chrome

$25.29 In Stock
Click this thumbnail image to view a larger image

HE104-03P-2020L

-3 Swaged Hose End, 10mm Banjo, 20 Up/20 Left, Chrome

$21.29 In Stock
Click this thumbnail image to view a larger image

HE104-03P-2020R

-3 Swaged Hose End, 10mm Banjo, 20 Up/20 Right, Chrome

$21.29 In Stock
Click this thumbnail image to view a larger image

HE104-03P-4545L

-3 Swaged Hose End, 10mm Banjo, 45 Up/45 Left, Chrome

$9.39 In Stock
Click this thumbnail image to view a larger image

HE104-03P-4545R

-3 Swaged Hose End, 10mm Banjo, 45 Up/45 Right, Chrome

$13.79 In Stock
Click this thumbnail image to view a larger image

HE107-03P-000

-3 Swaged Hose End, 12mm Banjo Straight, Steel

$18.49 In Stock
Click this thumbnail image to view a larger image

HE113-03P-090

-3 Hose End, 12mm Extended Neck 90 Degree Banjo, Chrome

$23.79 Not In Stock
Click this thumbnail image to view a larger image

HE116-03P-020

-3 Hose End, 11.2mm Extended Neck 20 Degree Banjo, Steel

$13.79 In Stock
Click this thumbnail image to view a larger image

HE117-03P-020

-3 Hose End, 11.2mm Extended Neck 20 Degree Banjo, Stainless

$24.99 In Stock
Click this thumbnail image to view a larger image

HE119-03P-020

-3 Hose End, 11.2mm Extended Neck 20 Degree Banjo, Chrome

$18.29 In Stock
Click this thumbnail image to view a larger image

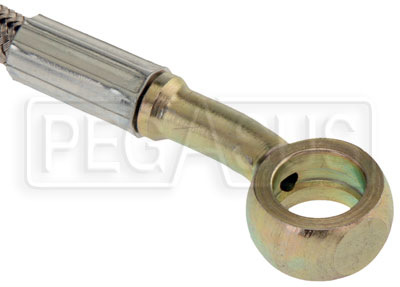

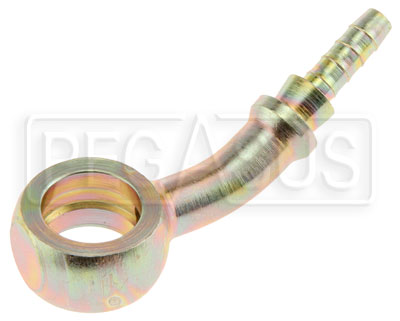

HE120-03P-020

-3 Swaged Hose End, 10mm 20 Degree Side Bent Banjo, Steel

$18.79 In Stock
Click this thumbnail image to view a larger image

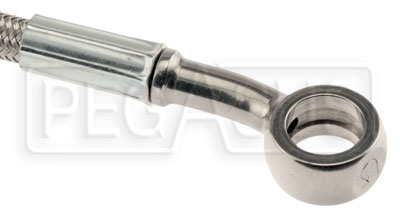

HE121-03P-020

-3 Swaged Hose End, 10mm 20 Degree Side Bent Banjo-Stainless

$36.49 In Stock
Click this thumbnail image to view a larger image

HE122-03P-020

-3 Swaged Hose End, 10mm 20 Degree Side Bent Banjo, Chrome

$20.79 In Stock
Click this thumbnail image to view a larger image

HE123-03P-020

-3 Swaged Hose End, 10mm 20 Degree Side Bent Banjo, Aluminum

$25.49 In Stock
Click this thumbnail image to view a larger image

HE125-03P-000

-3 Hose End, 11.2mm Extended Neck Straight Banjo, Steel

$12.29 In Stock
Click this thumbnail image to view a larger image

HE126-03P-000

-3 Hose End, 11.2mm Extended Neck Straight Banjo, Stainless

$24.99 In Stock
Click this thumbnail image to view a larger image

HE127-03P-000

-3 Hose End, 11.2mm Extended Neck Straight Banjo, Chrome

$18.29 In Stock
Metric Female Hose Ends
Click this thumbnail image to view a larger image

HE501-03P-000

-3 Hose End, 10x1.00 Female Convex Swivel Head, Steel

$23.29 In Stock
Click this thumbnail image to view a larger image

HE502-03P-000

-3 Hose End, 10x1.00 Female Concave Swivel Head, Stainless

$25.29 In Stock
Click this thumbnail image to view a larger image

HE506-03P-090

-3 Hose End, 10x1.00 Female Convex Swivel Head, Stainless

$39.49 In Stock
Metric Female Hose Ends, Bulkhead Mount
Click this thumbnail image to view a larger image

HE551-03P-000

-3 Hose End, 10x1.00 Female Concave Seat, Bulkhead , Steel

$21.29 In Stock
Click this thumbnail image to view a larger image

HE555-03P-000

-3 Hose End, 10x1.00 Female Convex Seat, Bulkhead , Steel

$21.29 In Stock
Click this thumbnail image to view a larger image

HE559-03P-000

-3 Hose End, 10x1.25 Female Concave Seat, Bulkhead , Steel

$22.99 In Stock
Special Bulkhead Mounting Nut for above fittings

Total Qty Needed
Click this thumbnail image to view a larger image

3275-900

Bulkhead Jam Nut, 16x1.0mm, fits Part #HE551, HE555, HE559

$4.39 In Stock
Metric Male Hose Ends
Click this thumbnail image to view a larger image

HE601-03P-000

-3 Swaged Hose End, 10x1.00 Concave Seat Male, Steel

$15.79 In Stock
Click this thumbnail image to view a larger image

HE602-03P-000

-3 Swaged Hose End, 10x1.00 Concave Seat Male, Stainless

$24.29 In Stock
Click this thumbnail image to view a larger image

HE603-03P-000

-3 Swaged Hose End, 10x1.00 Concave Seat Male, Chrome

$15.79 In Stock
Click this thumbnail image to view a larger image

HE606-03P-000

-3 Swaged Hose End, 10x1.00 Convex Seat Male, Steel

$15.79 In Stock
Click this thumbnail image to view a larger image

HE606-03P-090

-3 Swaged Hose End, 10x1.00 90 Degree Convex Seat Male Steel

$23.79 In Stock
Miscellaneous Hose Ends
Click this thumbnail image to view a larger image

HE702-03P-090

-3 Swaged Hose End, 2AN Female 90 Degree, Stainless

$59.49 In Stock


Specify Fitting Alignment:

Important Note: It can be very difficult to determine the fitting alignment without trial and error. When bends are introduced to the hose, the apparent orientation can change significantly. If at all possible, at least one end of the hose should have a straight fitting with a swivel nut (or a straight bulkhead mounted fitting) so that you don't have to worry about fitting alignment. If one end DOES have a straight fitting with a swivel nut (or a straight bulkhead mounted fitting) , just leave the alignment at the 0° default value.
Fitting Alignment Illustration



Detailed Description of Hose Material

Part No. 3260-3-INCH
Custom hose per inch: #3 Stainless Steel Braided PTFE Hose

This high pressure extruded PTFE hose has a stainless steel wire braid cover. We recommend 3AN for brake lines for the firmest pedal. Only steel, stainless steel, or high pressure brass fittings should be used with brake lines. Rated for use at -90°F to +450°F. Maximum operating pressure 4,000 psi. Minimum burst pressure 12,000 psi.

-2 Hose ID: 0.079" - OD: 0.20" - Minimum Bend Radius: 0.6"
-3 Hose ID: 0.138" - OD: 0.25" - Minimum Bend Radius: 1.5"
-4 Hose ID: 0.197" - OD: 0.30" - Minimum Bend Radius: 2.0"

-2 size is typically used for brake lines on motorcycles and open-wheel cars where the line is enclosed in a suspension arm.
-3 size is the most common size for brake lines and oil pressure gauge lines. It is also popular for clutch lines.
-4 size is ideal for clutch lines. It is also used for brake lines where a lot of fluid is displaced (such as drum brake systems).

Assembly Instructions for Steel Braided PTFE Brake Hose

Home April Featured Items Clearance Items Free Shipping Offers New Products Technical Info View Catalog Request Printed Catalog Testimonials Map Hours Contact Us About Us Links Policy Help Checkout


Follow us on facebook

Pegasus Auto Racing Supplies, Inc.

2475 S 179th St
New Berlin WI 53146 USA

Order Toll Free: 1-800-688-6946 (US & Canada)
Local/International Order Line: 262-317-1234

Technical Questions: 262-317-1200

Fax Line: 262-317-1201

Email - General Questions: CustSvc@PegasusAutoRacing.com
Email - Technical Product Questions: Tech@PegasusAutoRacing.com

Privacy Policy
© 2004 - 2014 Pegasus Auto Racing Supplies, Inc. - All rights reserved
