Webster / Hewland Mk-Series Maincase Parts (Drawing C) Product Group

Webster / Hewland Mk-Series Maincase Parts (Drawing C)

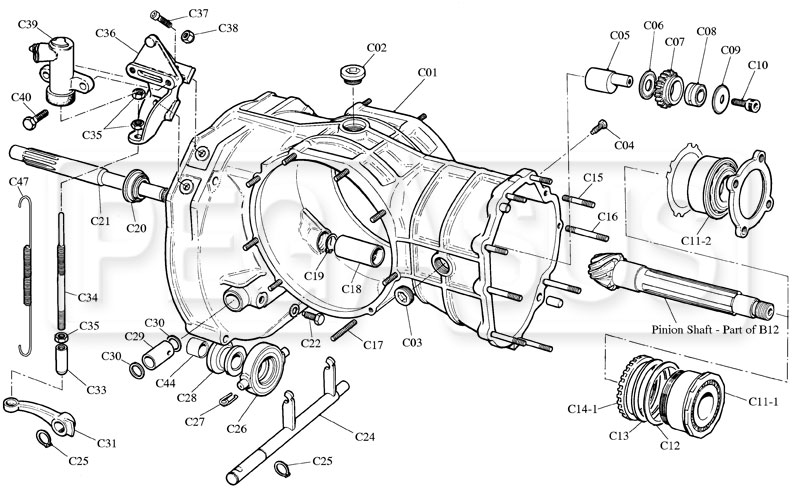

Click Here to view a large version of Webster Drawing C.

Part No.
Description
Price
Status
Click this thumbnail image of Hewland Gearbox Manual for MK8 and MK9 4- & 5-Speed for product details

1407

Hewland Gearbox Manual for MK8 and MK9 4- & 5-Speed

$9.99 In Stock
Click this thumbnail image of Titan FF/FC/S2 Gearbox Adapter Ring for 2 or 3 Bolt Starter for product details

1405

Titan FF/FC/S2 Gearbox Adapter Ring for 2 or 3 Bolt Starter

$429.99 Not In Stock
Click this thumbnail image of Webster FF/FC/S2 Gearbox Adapter for 2 or 3 Bolt Starter for product details

1405-2

Webster FF/FC/S2 Gearbox Adapter for 2 or 3 Bolt Starter

$395.00 Not In Stock
Click this thumbnail image of Webster Mk-Series 24mm Filler Plug (17mm Hex), Magnetic for product details

1410-C03

Webster Mk-Series 24mm Filler Plug (17mm Hex), Magnetic

$19.99 In Stock
Click this thumbnail image of 17mm Transmission Drain Plug Socket for product details

3750-020

17mm Transmission Drain Plug Socket

$9.99 In Stock
Click this thumbnail image of Webster Reverse Idler Spigot Retaining Bolt for product details

1410-C04

Webster Reverse Idler Spigot Retaining Bolt

$1.49 In Stock
Click this thumbnail image of Webster Reverse Idler Spigot - 5/16-24 Threads for product details

1410-C05

Webster Reverse Idler Spigot - 5/16-24 Threads

$105.99 In Stock
Click this thumbnail image of Webster Back Washer for Reverse Idler Spigot for product details

1410-C06

Webster Back Washer for Reverse Idler Spigot

$30.89 In Stock
Click this thumbnail image of Hewland Reverse Idler Gear for Mk4, Mk8 & Mk9 for product details

1410-C07H-4

Hewland Reverse Idler Gear for Mk4, Mk8 & Mk9

$178.99 In Stock
Click this thumbnail image of Webster Reverse Idler Gear for Mk5 Only for product details

1410-C07-5

Webster Reverse Idler Gear for Mk5 Only

$87.69 Not In Stock
Click this thumbnail image of Webster Reverse Idler Bearing for product details

1410-C08

Webster Reverse Idler Bearing

$41.99 In Stock
Click this thumbnail image of Retaining Washer for Webster Reverse Idler Gear - 5/16" Hole for product details

1410-C09-2

Retaining Washer for Webster Reverse Idler Gear - 5/16" Hole

$21.99 In Stock
Click this thumbnail image of Retaining Bolt for Hewland Reverse Idler Gear -  1/4-28 for product details

1410-C10-1

Retaining Bolt for Hewland Reverse Idler Gear - 1/4-28

$1.79 In Stock
Click this thumbnail image of Retaining Bolt for Webster Reverse Idler Gear - 5/16-24 for product details

1410-C10-2

Retaining Bolt for Webster Reverse Idler Gear - 5/16-24

$1.79 In Stock
Click this thumbnail image of Front Pinion Shaft Bearing - Ring Nut style for product details

1410-C11-1

Front Pinion Shaft Bearing - Ring Nut style

$324.99 In Stock
Click this thumbnail image of Front Pinion Shaft Bearing - 4 Bolt Plate style for product details

1410-C11-2

Front Pinion Shaft Bearing - 4 Bolt Plate style

$89.99 In Stock
Click this thumbnail image of Pinion Bearing Shim - Ring Nut Type, 0.006" Thick for product details

1410-C12-06

Pinion Bearing Shim - Ring Nut Type, 0.006" Thick

$3.99 In Stock
Click this thumbnail image of Pinion Bearing Shim - Ring Nut Type, 0.008" Thick for product details

1410-C12-08

Pinion Bearing Shim - Ring Nut Type, 0.008" Thick

$3.99 In Stock
Click this thumbnail image of Pinion Bearing Shim - Ring Nut Type, 0.012" Thick for product details

1410-C12-12

Pinion Bearing Shim - Ring Nut Type, 0.012" Thick

$3.99 In Stock
Click this thumbnail image of Pinion Bearing Shim - Ring Nut Type, 0.015" Thick for product details

1410-C12-15

Pinion Bearing Shim - Ring Nut Type, 0.015" Thick

$3.99 In Stock
Click this thumbnail image of Pinion Bearing Shim - Ring Nut Type, 0.020" Thick for product details

1410-C12-20

Pinion Bearing Shim - Ring Nut Type, 0.020" Thick

$3.99 In Stock
Click this thumbnail image of Pinion Bearing Shim - Ring Nut Type, 0.024" Thick for product details

1410-C12-24

Pinion Bearing Shim - Ring Nut Type, 0.024" Thick

$3.99 In Stock
Click this thumbnail image of Backing Washer for Pinion Bearing Ring Nut for product details

1410-C13

Backing Washer for Pinion Bearing Ring Nut

$8.49 In Stock
Click this thumbnail image of Ring Nut for Front Pinion Bearing for product details

1410-C14-1

Ring Nut for Front Pinion Bearing

$41.49 In Stock
Click this thumbnail image of Short Stud for Hewland/Webster Bearing Carrier, 8mm x1.25 for product details

1410-C15

Short Stud for Hewland/Webster Bearing Carrier, 8mm x1.25

$4.49 * In Stock
Click this thumbnail image of Long Stud for Hewland/Webster Bearing Carrier, 8mm x1.25 for product details

1410-C16

Long Stud for Hewland/Webster Bearing Carrier, 8mm x1.25

$6.99 * In Stock
Click this thumbnail image of Rear Stud Kit for Hewland/Webster Mk-Series for product details

1413-Size

Rear Stud Kit for Hewland/Webster Mk-Series

$51.49 In Stock
Click this thumbnail image of Webster/Hewland Side Cover Stud, M8 x 1.25 for product details

1410-C17

Webster/Hewland Side Cover Stud, M8 x 1.25

$5.99 In Stock
Click this thumbnail image of Webster/Hewland Side Cover Repair Stud, M8x1.25 x M10x1.50 for product details

1410-C17-10MM

Webster/Hewland Side Cover Repair Stud, M8x1.25 x M10x1.50

$7.49 In Stock
Click this thumbnail image of Side Plate Stud Kit for Hewland/Webster Mk-Series for product details

1416-010

Side Plate Stud Kit for Hewland/Webster Mk-Series

$50.99 In Stock
Click this thumbnail image of Hewland Input Shaft to Layshaft Coupling Sleeve for product details

1410-C18H

Hewland Input Shaft to Layshaft Coupling Sleeve

$131.99 In Stock
Click this thumbnail image of Webster Input Shaft to Layshaft Coupling Sleeve for product details

1410-C18

Webster Input Shaft to Layshaft Coupling Sleeve

$79.99 In Stock
Click this thumbnail image of Webster Snap Ring for Input Shaft for product details

1410-C19

Webster Snap Ring for Input Shaft

$1.49 * In Stock
Click this thumbnail image of Hewland/Webster Input Shaft Oil Seal for product details

1410-C20

Hewland/Webster Input Shaft Oil Seal

$11.99 In Stock
Click this thumbnail image of Formula Ford Standard Input Shaft, 11.56" , 7/8 x 20 Spline for product details

1410-C21H-1

Formula Ford Standard Input Shaft, 11.56" , 7/8 x 20 Spline

$879.00 In Stock
Click this thumbnail image of FF Long (Lotus) Input Shaft, 12.69", 7/8 x 20 Spline for product details

1410-C21-2

FF Long (Lotus) Input Shaft, 12.69", 7/8 x 20 Spline

$849.00 Not In Stock
Click this thumbnail image of FF2000 / S2000 Standard Input Shaft, 11.56", 1 x 23 Spline for product details

1410-C21-3

FF2000 / S2000 Standard Input Shaft, 11.56", 1 x 23 Spline

$849.00 Not In Stock
Click this thumbnail image of Supervee Short Input Shaft, 10.38", 7/8 x 20 Spline for product details

1410-C21-4

Supervee Short Input Shaft, 10.38", 7/8 x 20 Spline

$849.00 Not In Stock
Click this thumbnail image of Retaining Bolt for Clutch Release Cross Shaft Bushing for product details

1410-C22

Retaining Bolt for Clutch Release Cross Shaft Bushing

$4.79 In Stock
Click this thumbnail image of 20mm Clutch Release Cross Shaft for product details

1410-C24-1

20mm Clutch Release Cross Shaft

$129.99 Not In Stock
Click this thumbnail image of 16mm Clutch Release Cross Shaft for product details

1410-C24-2

16mm Clutch Release Cross Shaft

$17.99 In Stock
Click this thumbnail image of Throw Out Bearing for Mk-Series with External Clutch Slave for product details

1410-C26

Throw Out Bearing for Mk-Series with External Clutch Slave

$49.99 In Stock
Click this thumbnail image of Retaining Clip for Throw Out Bearing for product details

1410-C27

Retaining Clip for Throw Out Bearing

$2.99 In Stock
Click this thumbnail image of FF Bobbin for Stock Ford Clutch, 1.30" Long, 7/8" I.D. for product details

1410-C28-1

FF Bobbin for Stock Ford Clutch, 1.30" Long, 7/8" I.D.

$119.99 In Stock
Click this thumbnail image of FF Bobbin for F3 Clutch, 1.94" Long, 7/8" I.D. for product details

1410-C28-2

FF Bobbin for F3 Clutch, 1.94" Long, 7/8" I.D.

$119.99 In Stock
Click this thumbnail image of FF2000/S2000 Bobbin for Stock Ford Clutch, 1.10" Long, 1" ID for product details

1410-C28-3

FF2000/S2000 Bobbin for Stock Ford Clutch, 1.10" Long, 1" ID

$129.99 In Stock
Click this thumbnail image of FF2000/S2000 Bobbin for F3 Clutch, 2.14" Long, 1" ID for product details

1410-C28-4

FF2000/S2000 Bobbin for F3 Clutch, 2.14" Long, 1" ID

$156.00 Not In Stock
Click this thumbnail image of Bushing for 20mm Clutch Release Cross Shaft for product details

1410-C29-1

Bushing for 20mm Clutch Release Cross Shaft

$18.39 In Stock
Click this thumbnail image of Bushing for 16mm Clutch Release Cross Shaft for product details

1410-C29-2

Bushing for 16mm Clutch Release Cross Shaft

$18.39 In Stock
Click this thumbnail image of O-Ring Seal for 20mm Clutch Release Cross Shaft Bushing for product details

1410-C30-1

O-Ring Seal for 20mm Clutch Release Cross Shaft Bushing

$2.99 In Stock
Click this thumbnail image of Actuating Lever for 20mm Clutch Release Cross Shaft, Mk8/9 for product details

1410-C31-1

Actuating Lever for 20mm Clutch Release Cross Shaft, Mk8/9

$92.99 In Stock
Click this thumbnail image of Actuating Lever for 16mm Clutch Release Cross Shaft, Mk8/9 for product details

1410-C31-2

Actuating Lever for 16mm Clutch Release Cross Shaft, Mk8/9

$92.99 Not In Stock
Click this thumbnail image of Hewland Clutch Actuating Push Rod End for product details

1410-C33H

Hewland Clutch Actuating Push Rod End

$42.99 In Stock
Click this thumbnail image of Hewland Clutch Actuating Push Rod for product details

1410-C34H

Hewland Clutch Actuating Push Rod

$79.99 In Stock
Click this thumbnail image of Webster Clutch Actuating Push Rod for product details

1410-C34

Webster Clutch Actuating Push Rod

$74.99 Not In Stock
Click this thumbnail image of Webster Jam Nut for Clutch Actuating Push Rod for product details

1410-C35

Webster Jam Nut for Clutch Actuating Push Rod

$1.49 In Stock
Click this thumbnail image of Bolt for Mounting Clutch Slave Bracket to Case (2 Used) for product details

1410-C37

Bolt for Mounting Clutch Slave Bracket to Case (2 Used)

$1.49 In Stock
Click this thumbnail image of Nut for Mounting Clutch Slave Bracket to Case for product details

1410-C38

Nut for Mounting Clutch Slave Bracket to Case

$0.99 In Stock
Click this thumbnail image of Bushing for FF Clutch Bobbin (Std uses 1; F3 uses 2) for product details

1410-C44-1

Bushing for FF Clutch Bobbin (Std uses 1; F3 uses 2)

$4.99 In Stock
Click this thumbnail image of Bushing for Standard FF2000/S2000 Clutch Bobbin for product details

1410-C44-3

Bushing for Standard FF2000/S2000 Clutch Bobbin

$5.99 In Stock
Click this thumbnail image of Bushing for FF2000/S2000 F3 Clutch Bobbin for product details

1410-C44-4

Bushing for FF2000/S2000 F3 Clutch Bobbin

$7.99 In Stock
Click this thumbnail image of Return (Extension) Spring for Clutch Release Actuating Lever for product details

1410-C47

Return (Extension) Spring for Clutch Release Actuating Lever

$6.99 In Stock
Click this thumbnail image of Short Stud for Gearbox Adapter Ring (Top) for product details

1410-C50

Short Stud for Gearbox Adapter Ring (Top)

$3.99 * In Stock
Click this thumbnail image of Long Stud for Gearbox Adapter Ring (Bottom) for product details

1410-C51

Long Stud for Gearbox Adapter Ring (Bottom)

$6.49 * In Stock
Click this thumbnail image of ARP Stud Kit, 7/16-14 x 7/16-20 x 5.00 inch, with 12-pt Nut for product details

ARP300-0501

ARP Stud Kit, 7/16-14 x 7/16-20 x 5.00 inch, with 12-pt Nut

$7.49 Not In Stock

  * Quantity Pricing Available



  * Quantity Pricing Available
