Hawk Brake Pad FMSI Cross Reference

Hawk Brake Pad FMSI Cross Reference

Click on the tracing to enlarge

Click on the HB number for details on that pad

Click on "Compound" for descriptions of the different Hawk Brake friction materials

FMSI Number Hawk Pad Image Notes
D4 HB244-Compound-.624 Click for large image of tracing
D5 HB108-Compound-.560 Click for large image of tracing
D8 HB126-Compound-.505 Click for large image of tracing
D11 HB471-Compound-.510 Click for large image of tracing
D27 HB132-Compound-.580 Click for large image of tracing
D31 HB172-Compound-.500 Click for large image of tracing See application list for thickness
D31 HB172-Compound-.595 Click for large image of tracing See application list for thickness
D34 HB646-Compound-.362
D39 HB643-Compound-.595
D43 HB204-Compound-.615 Click for large image of tracing
D44 HB118-Compound-.560 Click for large image of tracing
D45 HB171-Compound-.590 Click for large image of tracing See application list for thickness
D45 HB171-Compound-.720 Click for large image of tracing See application list for thickness

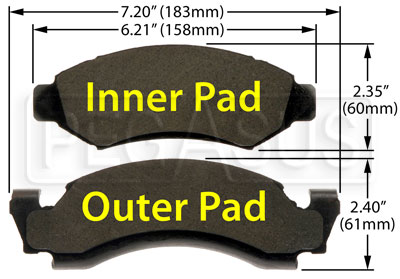

D50 HB292-Compound-.674 Click for large image of tracing
D52 HB103-Compound-.590 Click for large image of tracing
D57 HB169-Compound-.560 Click for large image of tracing
D58 HB172-Compound-.595 Click for large image of tracing
D61 HB123-Compound-.535 Click for large image of tracing
D76 HB150-Compound-.555 Click for large image of tracing
D81 HB229-Compound-.580 Click for large image of tracing
D92 HB292-Compound-.674 Click for large image of tracing

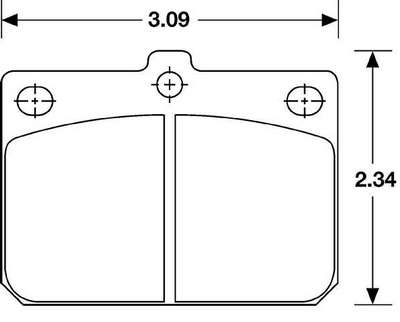

D94 HB156-Compound-.562 Click for large image of tracing
D100 HB207-Compound-.580
D109 HB180-Compound-.560 Click for large image of tracing See application list for thickness
D109 HB180-Compound-.591 Click for large image of tracing See application list for thickness
D109 HB180-Compound-.640 Click for large image of tracing See application list for thickness
D114 HB169-Compound-.560 Click for large image of tracing
D120 HB255-Compound-.655
D122 HB103-Compound-.590 Click for large image of tracing
D131 HB152-Compound-.540 Click for large image of tracing
D138 HB119-Compound-.594 Click for large image of tracing
D141 HB199-Compound-.702 Click for large image of tracing
D145 HB207-Compound-.580
D149 HB337-Compound-.791
D153 HB131-Compound-.595 Click for large image of tracing
D154 HB119-Compound-.594 Click for large image of tracing
D158 HB189-Compound-.595 Click for large image of tracing
D159 HB400-Compound-.630
D161 HB169-Compound-.560 Click for large image of tracing
D163 HB206-Compound-.565 Larger image not currently available See application list for thickness
D163 HB206-Compound-.700 Larger image not currently available See application list for thickness
D169 HB156-Compound-.562 Click for large image of tracing
D172 HB156-Compound-.562 Click for large image of tracing
D174 HB180-Compound-.640 Click for large image of tracing
D183 HB400-Compound-.630
D184 HB252-Compound-.860

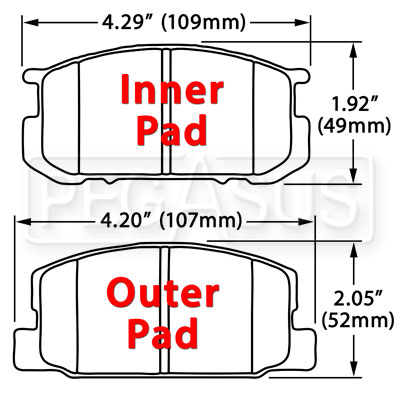

D189 HB202-Compound-.580 Click for large image of tracing
D190 HB400-Compound-.630
D195 HB614-Compound-.600
D199 HB125-Compound-.650 Click for large image of tracing
D200 HB125-Compound-.650 Click for large image of tracing
D202 HB119-Compound-.594 Click for large image of tracing
D205 HB279-Compound-.594
D206 HB189-Compound-.595 Click for large image of tracing
D213 HB112-Compound-.540 Click for large image of tracing
D215 HB396-Compound-.630
D224 HB253-Compound-.750
D225 HB251-Compound-1.14
D227 HB190-Compound-.600 Click for large image of tracing See application list for thickness
D227 HB190-Compound-.730 Click for large image of tracing See application list for thickness

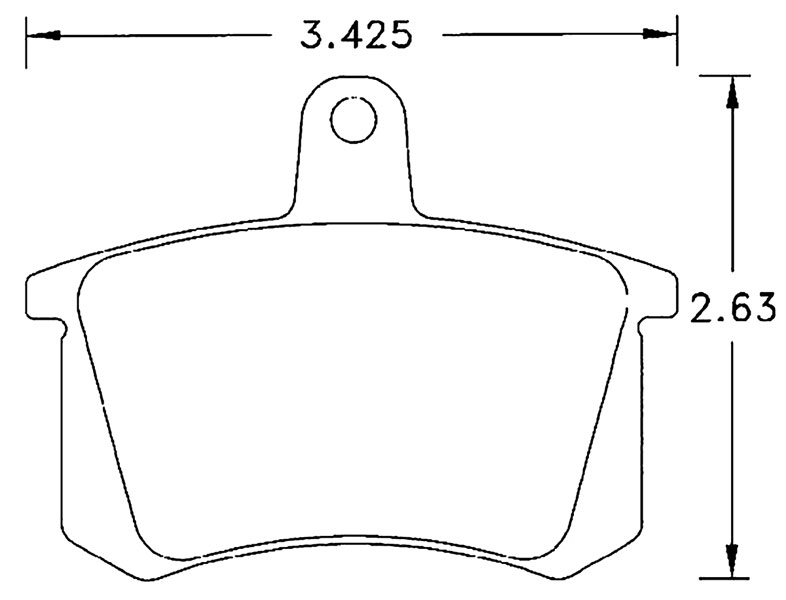

D228 HB271-Compound-.635 Click for large image of tracing
D230 HB262-Compound-.540 Click for large image of tracing
D231 HB262-Compound-.540 Click for large image of tracing
D232 HB262-Compound-.540 Click for large image of tracing
D235 HB151-Compound-.505 Click for large image of tracing
D236 HB254-Compound-1.00
D241 HB191-Compound-.590 Click for large image of tracing
D242 HB191-Compound-.590 Click for large image of tracing
D249 HB279-Compound-.594
D251 HB199-Compound-.702 Click for large image of tracing
D252 HB198-Compound-.685 Click for large image of tracing

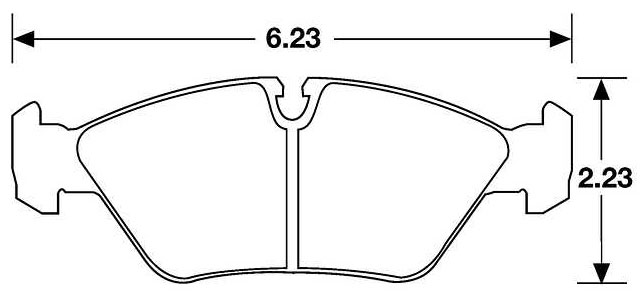

D253 HB137-Compound-.690 Click for large image of tracing
D254 HB198-Compound-.685 Click for large image of tracing
D256 HB397-Compound-.585

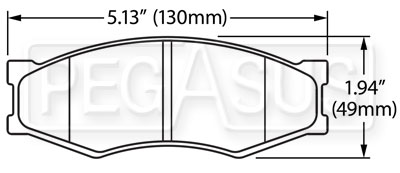

D266 HB475-Compound-.642 Click for large image of tracing
D269 HB398-Compound-.680
D272 HB262-Compound-.540 Click for large image of tracing
D273 HB218-Compound-.583 Click for large image of tracing
D278 HB195-Compound-.640 Click for large image of tracing
D279 HB399-Compound-.630 Click for large image of tracing
D280 HB189-Compound-.550 Click for large image of tracing See application list for thickness
D280 HB189-Compound-.595 Click for large image of tracing See application list for thickness
D282 HB202-Compound-.580 Click for large image of tracing
D283 HB158-Compound-.515 Click for large image of tracing
D287 HB171-Compound-.590 Click for large image of tracing
D289 HB400-Compound-.630
D290 HB190-Compound-.730 Click for large image of tracing
D292 HB134-Compound-.665
D294 HB173-Compound-.570 Click for large image of tracing
D295 HB112-Compound-.540 Click for large image of tracing
D302 HB191-Compound-.590 Click for large image of tracing
D305 HB203-Compound-.550 Click for large image of tracing
D306 HB271-Compound-.605 Click for large image of tracing
D307 HB189-Compound-.595 Click for large image of tracing
D313 HB103-Compound-.590 Click for large image of tracing
D321 HB195-Compound-.640 Click for large image of tracing
D323 HB262-Compound-.540 Click for large image of tracing
D325 HB401-Compound-.587
D331 HB155-Compound-.580 Click for large image of tracing
D332 HB158-Compound-.515 Click for large image of tracing
D333 HB402-Compound-.669
D334 HB403-Compound-.587
D339 HB350-Compound-.496 Click for large image of tracing
D340 HB364-Compound-.587 Click for large image of tracing See application list for thickness
D340 HB364-Compound-.642 Click for large image of tracing See application list for thickness
D341 HB242-Compound-.661 Click for large image of tracing
D345 HB170-Compound-.650 Click for large image of tracing
D347 HB580-Compound-.627
D349 HB404-Compound-.642
D352 HB401-Compound-.587
D356 HB191-Compound-.590 Click for large image of tracing
D360 HB293-Compound-.668
D362 HB270-Compound-.724
D364 HB350-Compound-.496 Click for large image of tracing
D368 HB356-Compound-.654
D369 HB332-Compound-.654 Click for large image of tracing
D370 HB296-Compound-.670 Click for large image of tracing
D372 HB141-Compound-.650 Click for large image of tracing
D373 HB113-Compound-.590 Click for large image of tracing
D374 HB350-Compound-.496 Click for large image of tracing
D375 HB293-Compound-.634   See application list for thickness
D375 HB293-Compound-.668   See application list for thickness
D376 HB232-Compound-.681
D377 HB405-Compound-.543
D380 HB252-Compound-.860
D383 HB367-Compound-.585 Larger image not currently available
D387 HB279-Compound-.594
D389 HB407-Compound-.602
D392 HB131-Compound-.595 Click for large image of tracing
D394 HB135-Compound-.642 Click for large image of tracing See application list for thickness
D394 HB135-Compound-.770 Click for large image of tracing See application list for thickness
D395 HB137-Compound-.690 Click for large image of tracing
D396 HB227-Compound-.630 Click for large image of tracing
D409 HB242-Compound-.661 Click for large image of tracing
D410 HB317-Compound-.591
D411 HB345-Compound-.815

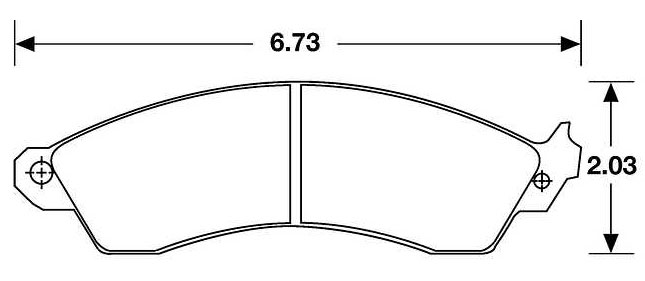

D412 HB111-Compound-.610 Click for large image of tracing
D413 HB112-Compound-.540 Click for large image of tracing
D415 HB176-Compound-.614 Click for large image of tracing
D417 HB240-Compound-.620
D419 HB270-Compound-.724
D421 HB240-Compound-.620
D422 HB231-Compound-.625 Click for large image of tracing
D424 HB199-Compound-.660 Click for large image of tracing
D429 HB262-Compound-.540 Click for large image of tracing
D430 HB268-Compound-.665 Click for large image of tracing
D431 HB263-Compound-.650 Click for large image of tracing
D431 HB263-Compound-.670 Click for large image of tracing
D433 HB407-Compound-.602
D436 HB315-Compound-.669 Click for large image of tracing
D439 HB195-Compound-.640 Click for large image of tracing
D441 HB475-Compound-.642 Click for large image of tracing
D443 HB199-Compound-.702 Click for large image of tracing
D445 HB198-Compound-.685 Click for large image of tracing
D446 HB170-Compound-.650 Click for large image of tracing See application list for thickness
D446 HB170-Compound-.710 Click for large image of tracing See application list for thickness
D447 HB141-Compound-.650 Click for large image of tracing
D449 HB261-Compound-.665 Click for large image of tracing
D450 HB336-Compound-.655
D454 HB195-Compound-.640 Click for large image of tracing
D455 HB199-Compound-.702 Click for large image of tracing
D457 HB148-Compound-.560 Click for large image of tracing

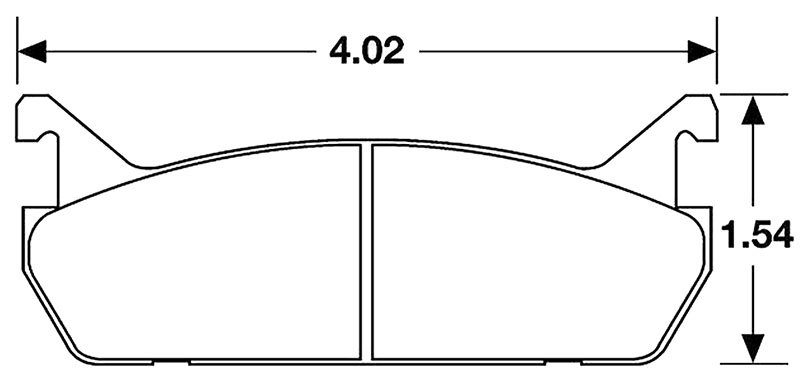

D458 HB157-Compound-.484 Click for large image of tracing
D459 HB298-Compound-.787 Click for large image of tracing
D460 HB178-Compound-.564 Click for large image of tracing
D461 HB179-Compound-.630 Click for large image of tracing

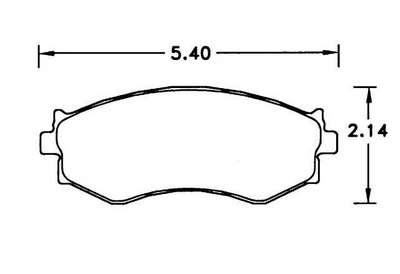

D462 HB235-Compound-.665 Click for large image of tracing
D463 HB155-Compound-.580 Click for large image of tracing
D464 HB262-Compound-.540 Click for large image of tracing
D465 HB275-Compound-.620 Click for large image of tracing See application list for thickness
D465 HB275-Compound-.720 Click for large image of tracing See application list for thickness
D468 HB148-Compound-.560 Click for large image of tracing
D469 HB235-Compound-.665 Click for large image of tracing
D470 HB408-Compound-.665
D471 HB367-Compound-.585 Larger image not currently available

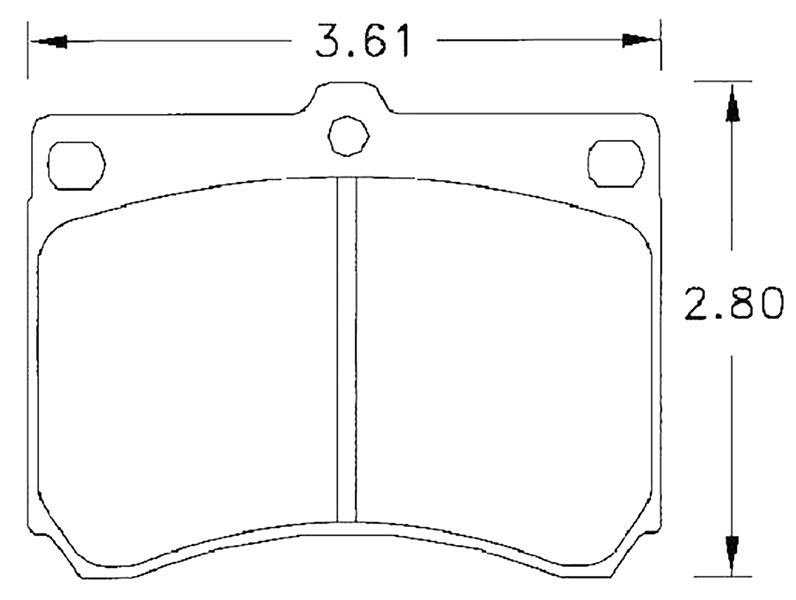

D473 HB246-Compound-.567 Click for large image of tracing
D474 HB218-Compound-.583 Click for large image of tracing
D476 HB318-Compound-.669
D477 HB210-Compound-.677 Click for large image of tracing
D481 HB437-Compound-.585
D482 HB158-Compound-.515 Click for large image of tracing
D484 HB213-Compound-.626 Click for large image of tracing
D485 HB235-Compound-.665 Click for large image of tracing
D487 HB195-Compound-.640 Click for large image of tracing
D491 HB278-Compound-.465 Click for large image of tracing See application list for thickness
D491 HB278-Compound-.583 Click for large image of tracing See application list for thickness
D493 HB195-Compound-.640 Click for large image of tracing
D499 HB125-Compound-.650 Click for large image of tracing
D502 HB312-Compound-.591 Click for large image of tracing
D503 HB143-Compound-.680 Click for large image of tracing
D504 HB185-Compound-.590 Click for large image of tracing
D505 HB129-Compound-.681 Click for large image of tracing
D506 HB390-Compound-.602
D507 HB409-Compound-.661 Larger image not currently available

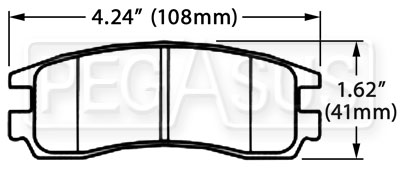

D508 HB359-Compound-.543 Click for large image of tracing
D512 HB176-Compound-.614 Click for large image of tracing
D521 HB411-Compound-.717
D522 HB410-Compound-.721
D524 HB411-Compound-.717
D525 HB148-Compound-.560 Click for large image of tracing
D526 HB268-Compound-.665 Click for large image of tracing
D529 HB308-Compound-.689
D530 HB214-Compound-.618 Click for large image of tracing

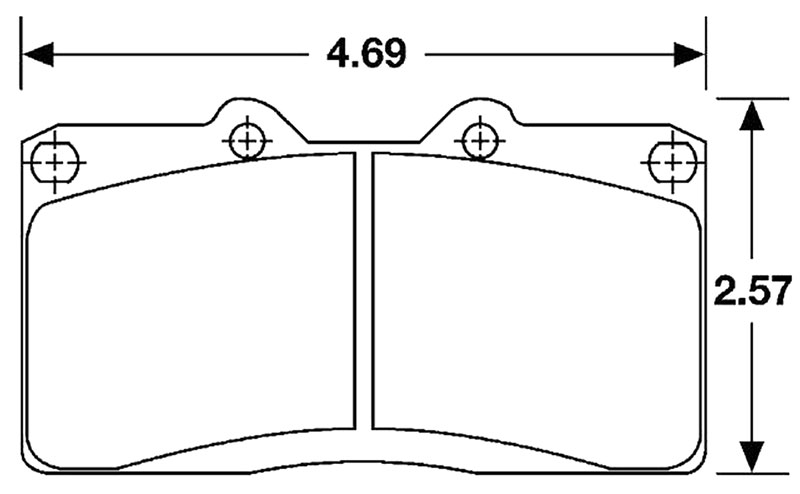

D531 HB120-Compound-.560 Click for large image of tracing
D532 HB673-Compound-.602
D535 HB230-Compound-.575
D536 HB572-Compound-.570
D537 HB145-Compound-.570 Click for large image of tracing
D539 HB191-Compound-.590 Click for large image of tracing
D540 HB421-Compound-.622
D542 HB413-Compound-.690
D543 HB337-Compound-.791
D545 HB580-Compound-.627
D547 HB325-Compound-.720 Click for large image of tracing
D548 HB362-Compound-.642 Click for large image of tracing
D549 HB409-Compound-.661 Larger image not currently available
D551 HB379-Compound-.626
D551 HB379-Compound-.626
D555 HB269-Compound-.763 Click for large image of tracing
D555 HB269-Compound-.763A Click for large image of tracing
D555 HB269-Compound-.763B Click for large image of tracing
D556 HB384-Compound-.587
D557 HB333-Compound-.776
D558 HB136-Compound-.690 Click for large image of tracing
D559 HB176-Compound-.614 Click for large image of tracing
D560 HB218-Compound-.583 Click for large image of tracing
D562 HB310-Compound-.689
D564 HB350-Compound-.496 Click for large image of tracing
D568 HB144-Compound-.719 Click for large image of tracing
D569 HB189-Compound-.595 Click for large image of tracing
D570 HB191-Compound-.590 Click for large image of tracing
D572 HB670-Compound-.750
D576 HB414-Compound-.622
D579 HB422-Compound-.610
D583 HB211-Compound-.606 Click for large image of tracing
D584 HB212-Compound-.535 Click for large image of tracing
D585 HB155-Compound-.580 Click for large image of tracing
D587 HB415-Compound-.583
D588 HB437-Compound-.585
D589 HB407-Compound-.602
D591 HB241-Compound-.710

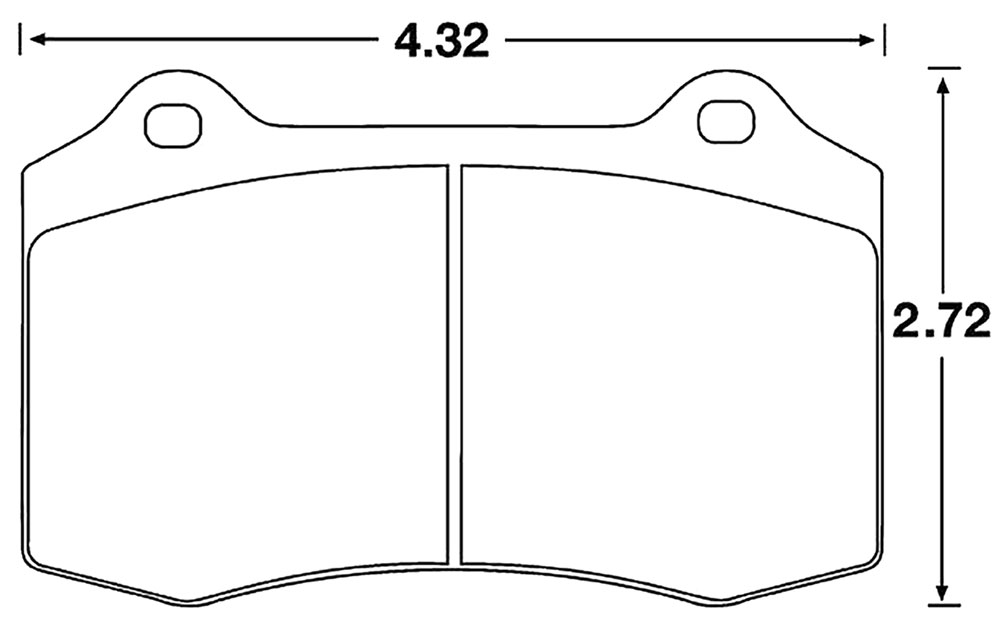

D592 HB194-Compound-.570 Click for large image of tracing See application list for thickness
D592 HB194-Compound-.665 Click for large image of tracing See application list for thickness
D593 HB308-Compound-.689
D594 HB184-Compound-.650 Click for large image of tracing
D594 HB184-Compound-.650A Click for large image of tracing
D594 HB184-Compound-.650B Click for large image of tracing
D594 HB184-Compound-.650C Click for large image of tracing
D595 HB421-Compound-.622
D597 HB240-Compound-.620
D598 HB416-Compound-.689
D600 HB182-Compound-.660 Click for large image of tracing
D601 HB347-Compound-.689
D602 HB230-Compound-.575
D603 HB371-Compound-.600
D606 HB477-Compound-.610
D607 HB279-Compound-.594
D608 HB170-Compound-.650 Click for large image of tracing
D609 HB141-Compound-.650 Click for large image of tracing
D610 HB417-Compound-.659
D611 HB311-Compound-.591 Click for large image of tracing
D614 HB131-Compound-.595 Click for large image of tracing
D617 HB245-Compound-.631 Click for large image of tracing

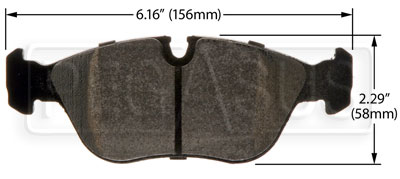

D618 HB492-Compound-.732 Click for large image of tracing
D619 HB375-Compound-.669
D621 HB418-Compound-.646 Click for large image of tracing
D623 HB217-Compound-.681 Click for large image of tracing
D625 HB285-Compound-.595
D626 HB295-Compound-.630
D627 HB183-Compound-.585 Click for large image of tracing See application list for thickness
D627 HB183-Compound-.660 Click for large image of tracing See application list for thickness
D629 HB215-Compound-.630 Click for large image of tracing
D630 HB216-Compound-.590 Click for large image of tracing
D631 HB201-Compound-.620 Click for large image of tracing
D632 HB295-Compound-.630
D634 HB413-Compound-.690
D635 HB149-Compound-.505 Click for large image of tracing
D636 HB159-Compound-.492 Click for large image of tracing
D637 HB211-Compound-.606 Click for large image of tracing
D639 HB181-Compound-.660 Click for large image of tracing
D641 HB176-Compound-.614 Click for large image of tracing
D642 HB177-Compound-.630 Click for large image of tracing
D642 HB177-Compound-.710 Click for large image of tracing
D643 HB419-Compound-.634
D647 HB178-Compound-.564 Click for large image of tracing
D648 HB420-Compound-.724
D650 HB233-Compound-.635 Click for large image of tracing

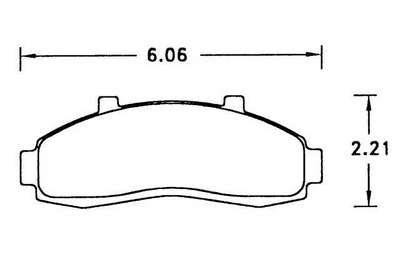

D652 HB283-Compound-.650 Click for large image of tracing
D654 HB279-Compound-.594
D655 HB334-Compound-.705   See application list for thickness
D655 HB334-Compound-.736   See application list for thickness
D656 HB347-Compound-.689
D658 HB176-Compound-.614 Click for large image of tracing
D659 HB205-Compound-.672
D661 HB510-Compound-.580
D663 HB159-Compound-.492 Click for large image of tracing
D664 HB284-Compound-.575
D666 HB286-Compound-.591
D667 HB287-Compound-.571
D668 HB236-Compound-.622 Click for large image of tracing
D669 HB680-Compound-.583
D673 HB390-Compound-.602
D674 HB341-Compound-.618
D676 HB469-Compound-.705
D678 HB205-Compound-.672
D679 HB266-Compound-.650 Click for large image of tracing
D681 HB325-Compound-.720 Click for large image of tracing
D682 HB497-Compound-.776 Click for large image of tracing
D683 HB518-Compound-.642 Click for large image of tracing
D684 HB190-Compound-.730 Click for large image of tracing
D685 HB401-Compound-.587
D687 HB272-Compound-.763 Click for large image of tracing
D687 HB272-Compound-.763A Click for large image of tracing
D690 HB353-Compound-.618
D691 HB326-Compound-.646
D692 HB227-Compound-.630 Click for large image of tracing
D695 HB310-Compound-.689
D696 HB190-Compound-.600 Click for large image of tracing
D697 HB318-Compound-.669
D698 HB359-Compound-.543 Click for large image of tracing
D699 HB360-Compound-.670 Click for large image of tracing
D700 HB261-Compound-.665 Click for large image of tracing
D702 HB299-Compound-.650 Click for large image of tracing

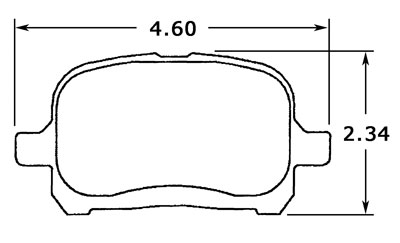

D707 HB320-Compound-.669 Click for large image of tracing
D709 HB389-Compound-.583
D711 HB301-Compound-.630 Click for large image of tracing
D712 HB210-Compound-.677 Click for large image of tracing
D713 HB286-Compound-.591
D714 HB359-Compound-.543 Click for large image of tracing
D717 HB252-Compound-.860
D718 HB318-Compound-.669
D720 HB423-Compound-.709
D721 HB352-Compound-.665 Click for large image of tracing
D722 HB424-Compound-.665
D723 HB214-Compound-.618 Click for large image of tracing
D725 HB135-Compound-.770 Click for large image of tracing See application list for thickness

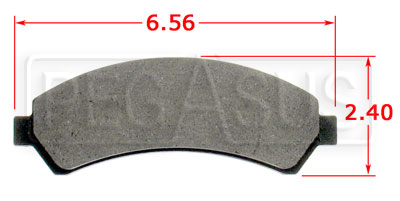

D726 HB304-Compound-.598 Click for large image of tracing
D727 HB425-Compound-.661
D728 HB409-Compound-.661 Larger image not currently available
D729 HB305-Compound-.610
D730 HB260-Compound-.670
D731 HB247-Compound-.575 Click for large image of tracing
D732 HB248-Compound-.650 Click for large image of tracing
D737 HB289-Compound-.610 Click for large image of tracing
D738 HB290-Compound-.583 Click for large image of tracing See application list for thickness
D738 HB290-Compound-.606 Click for large image of tracing See application list for thickness
D740 HB495-Compound-.756

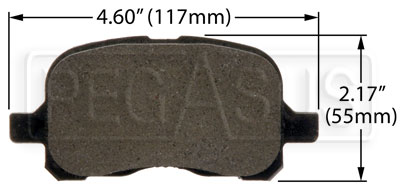

D741 HB321-Compound-.650 Click for large image of tracing
D744 HB318-Compound-.669
D745 HB420-Compound-.724

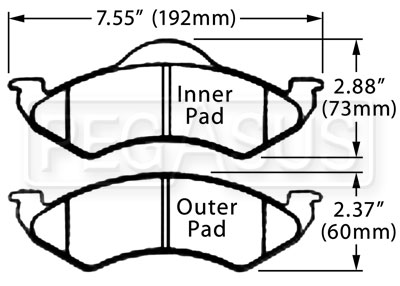

D746 HB306-Compound-.795 Click for large image of tracing
D747 HB261-Compound-.665 Click for large image of tracing
D748 HB294-Compound-.646
D749 HB249-Compound-.575 Click for large image of tracing

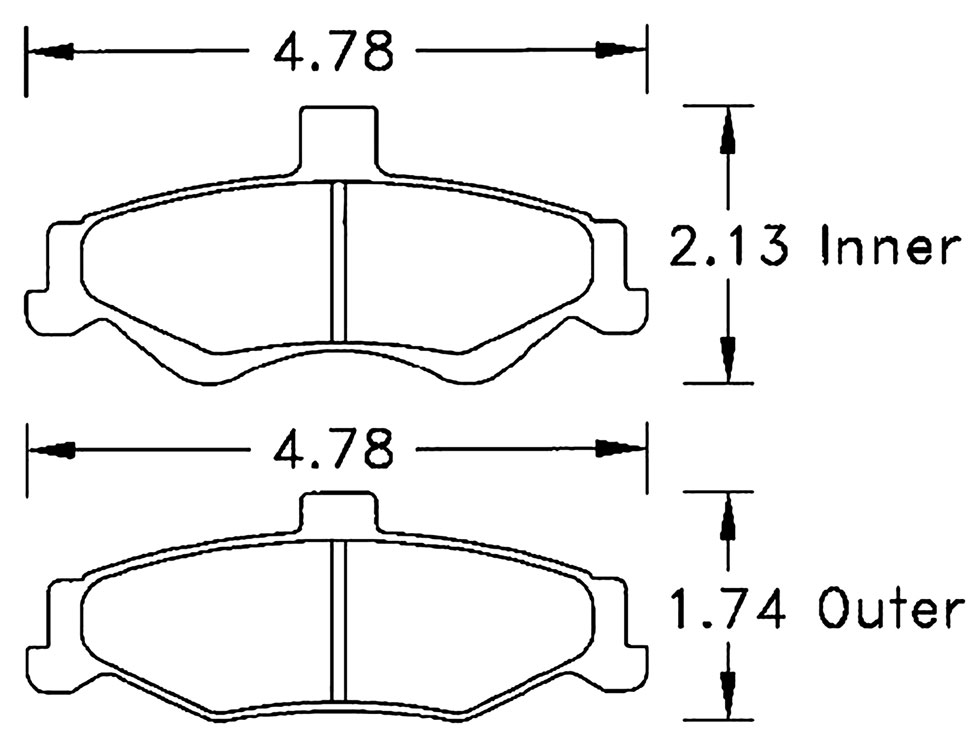

D750 HB250-Compound-.653 Click for large image of tracing
D752 HB425-Compound-.661
D754 HB359-Compound-.543 Click for large image of tracing
D755 HB489-Compound-.630
D756 HB302-Compound-.700
D757 HB303-Compound-.685 Click for large image of tracing
D758 HB299-Compound-.650 Click for large image of tracing
D759 HB176-Compound-.614 Click for large image of tracing
D760 HB505-Compound-.654
D763 HB227-Compound-.630 Click for large image of tracing
D764 HB275-Compound-.620 Click for large image of tracing See application list for thickness
D764 HB275-Compound-.660 Click for large image of tracing See application list for thickness
D765 HB416-Compound-.689
D766 HB597-Compound-.681
D768 HB365-Compound-.728 Click for large image of tracing
D769 HB344-Compound-.992
D770 HB434-Compound-.543 Click for large image of tracing
D771 HB499-Compound-.610
D772 HB313-Compound-.685
D773 HB427-Compound-.685
D776 HB291-Compound-.642 Click for large image of tracing
D777 HB335-Compound-.815
D781 HB546-Compound-.654 Click for large image of tracing
D782 HB176-Compound-.614 Click for large image of tracing
D784 HB322-Compound-.717 Click for large image of tracing
D785 HB323-Compound-.724 Click for large image of tracing
D786 HB327-Compound-.799   See application list for thickness
D786 HB327-Compound-1.05   See application list for thickness
D787 HB366-Compound-.681 Click for large image of tracing
D789 HB332-Compound-.654 Click for large image of tracing
D790 HB380-Compound-.700 Click for large image of tracing
D791 HB381-Compound-.661
D792 HB324-Compound-.673
D793 HB386-Compound-.669
D794 HB491-Compound-.693
D795 HB652-Compound-.634
D799 HB316-Compound-.670
D801 HB420-Compound-.724
D802 HB539-Compound-.650
D803 HB342-Compound-.701
D804 HB274-Compound-.610 Click for large image of tracing
D805 HB376-Compound-.665 Click for large image of tracing
D806 HB428-Compound-.650 Click for large image of tracing
D807 HB384-Compound-.587
D810 HB193-Compound-.670 Click for large image of tracing
D811 HB389-Compound-.583
D812 HB314-Compound-.665
D814 HB359-Compound-.543 Click for large image of tracing
D815 HB268-Compound-.665 Click for large image of tracing
D816 HB346-Compound-.713 Click for large image of tracing
D817 HB328-Compound-.685 Click for large image of tracing
D818 HB360-Compound-.670 Click for large image of tracing

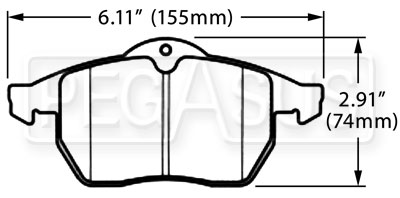

D819 HB388-Compound-.756 Click for large image of tracing
D820 HB307-Compound-.795
D821 HB487-Compound-.733
D822 HB493-Compound-.650
D823 HB329-Compound-.543 Click for large image of tracing
D824 HB302-Compound-.700
D825 HB537-Compound-.783
D829 HB361-Compound-.622 Click for large image of tracing
D830 HB488-Compound-.629
D833 HB472-Compound-.650
D834 HB385-Compound-.640 Click for large image of tracing
D835 HB610-Compound-.587
D836 HB354-Compound-.756 Click for large image of tracing
D837 HB500-Compound-.645
D838 HB516-Compound-.626
D839 HB363-Compound-.689 Click for large image of tracing
D840 HB354-Compound-.756 Click for large image of tracing
D841 HB377-Compound-.760 Click for large image of tracing
D842 HB299-Compound-.650 Click for large image of tracing
D843 HB473-Compound-.752
D844 HB373-Compound-.689
D845 HB296-Compound-.670 Click for large image of tracing
D849 HB376-Compound-.665 Click for large image of tracing
D850 HB360-Compound-.670 Click for large image of tracing
D851 HB271-Compound-.605 Click for large image of tracing
D853 HB495-Compound-.756
D855 HB326-Compound-.646
D856 HB373-Compound-.689
D857 HB374-Compound-.700
D858 HB372-Compound-.626
D859 HB487-Compound-.733
D861 HB172-Compound-.595 Click for large image of tracing
D862 HB429-Compound-.681
D864 HB461-Compound-.646
D865 HB506-Compound-.610
D866 HB435-Compound-.622 Click for large image of tracing
D868 HB675-Compound-.602
D869 HB498-Compound-.772
D872 HB504-Compound-.740
D879 HB301-Compound-.630 Click for large image of tracing
D881 HB520-Compound-.575
D882 HB382-Compound-.657
D883 HB383-Compound-.685
D886 HB430-Compound-.547 Click for large image of tracing

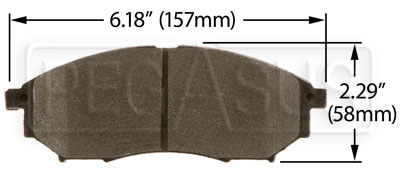

D888 HB387-Compound-.547 Click for large image of tracing
D890 HB431-Compound-.606 Click for large image of tracing
D891 HB442-Compound-.496 Click for large image of tracing
D892 HB436-Compound-.535
D893 HB211-Compound-.606 Click for large image of tracing
D894 HB364-Compound-.642 Click for large image of tracing
D897 HB299-Compound-.650 Click for large image of tracing
D898 HB514-Compound-.610
D900 HB378-Compound-.626 Click for large image of tracing
D903 HB461-Compound-.646
D904 HB438-Compound-.606
D905 HB370-Compound-.559 Click for large image of tracing
D906 HB677-Compound-.685
D908 HB474-Compound-.681
D909 HB322-Compound-.717 Click for large image of tracing
D912 HB363-Compound-.689 Click for large image of tracing
D913 HB472-Compound-.650
D914 HB393-Compound-.665
D915 HB515-Compound-.760 Click for large image of tracing
D916 HB667-Compound-.622
D917 HB550-Compound-.634 Click for large image of tracing
D918 HB551-Compound-.748 Click for large image of tracing
D919 HB630-Compound-.626

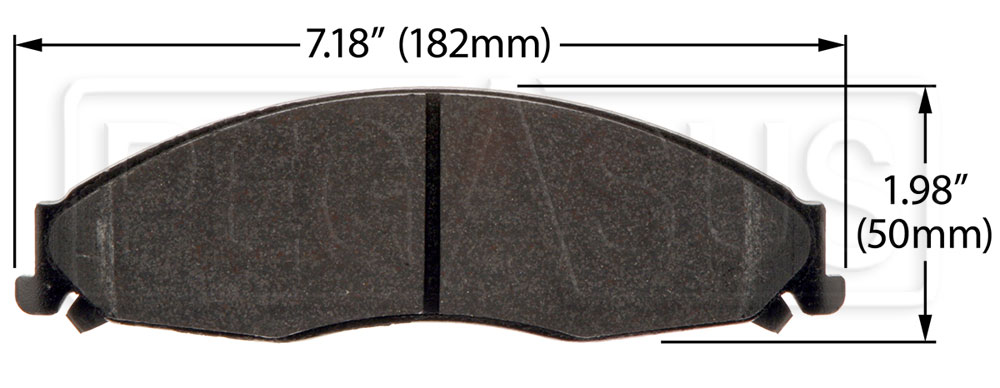

D921 HB439-Compound-.555 Click for large image of tracing
D922 HB440-Compound-.606 Click for large image of tracing
D923 HB441-Compound-.661
D924 HB368-Compound-.665
D928 HB479-Compound-.700
D929 HB432-Compound-.661 Click for large image of tracing
D931 HB433-Compound-.654
D932 HB443-Compound-.614
D934 HB462-Compound-.827
D935 HB463-Compound-.787
D936 HB388-Compound-.756 Click for large image of tracing
D939 HB444-Compound-.685 Click for large image of tracing
D940 HB445-Compound-.610 Click for large image of tracing
D942 HB380-Compound-.700 Click for large image of tracing
D943 HB393-Compound-.665
D944 HB428-Compound-.650 Click for large image of tracing
D945 HB446-Compound-.725 Click for large image of tracing
D946 HB464-Compound-.764 Click for large image of tracing
D947 HB465-Compound-.764
D948 HB418-Compound-.646 Click for large image of tracing
D949 HB480-Compound-.750
D955 HB461-Compound-.646

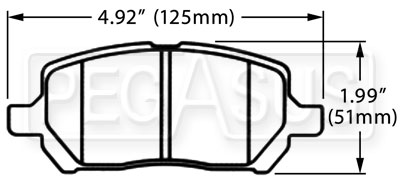

D956 HB517-Compound-.690 Click for large image of tracing
D957 HB459-Compound-.700 Click for large image of tracing
D958 HB393-Compound-.665
D959 HB447-Compound-.667
D960 HB545-Compound-.564 Click for large image of tracing
D961 HB180-Compound-.560 Click for large image of tracing
D962 HB476-Compound-.707
D963 HB503-Compound-.790
D964 HB689-Compound-.550

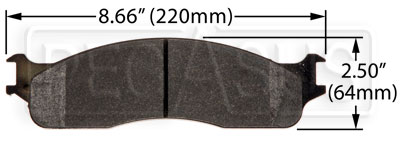

D965 HB552-Compound-.722 Click for large image of tracing
D966 HB299-Compound-.650 Click for large image of tracing
D967 HB513-Compound-.610
D968 HB193-Compound-.670 Click for large image of tracing

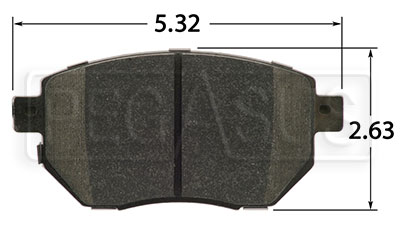

D969 HB448-Compound-.610 Click for large image of tracing
D970 HB449-Compound-.679 Larger image not currently available
D973 HB571-Compound-.605

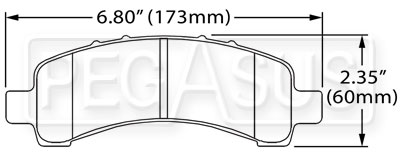

D974 HB494-Compound-.670 Click for large image of tracing
D975 HB496-Compound-.640
D976 HB490-Compound-.665 Click for large image of tracing

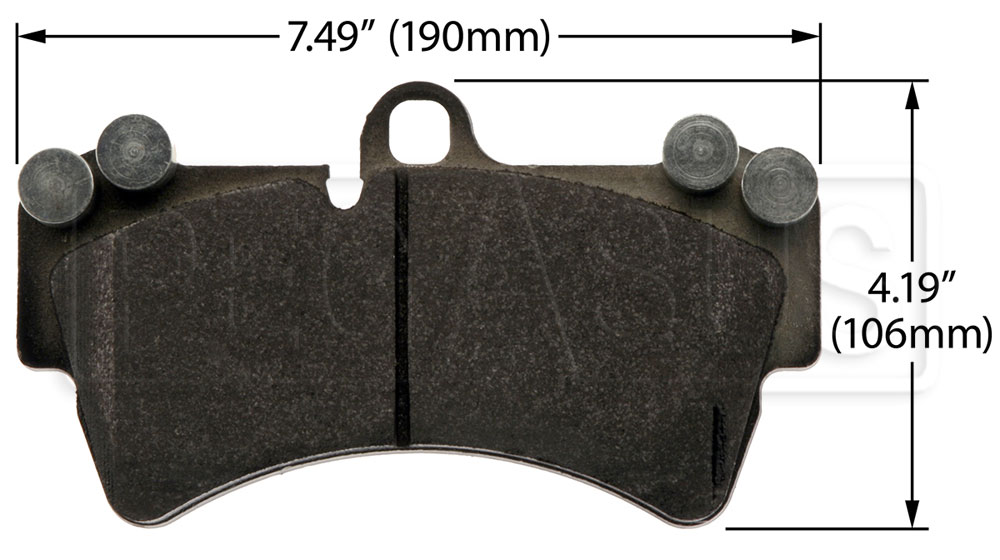

D977 HB501-Compound-.625 Click for large image of tracing
D978 HB502-Compound-.606 Click for large image of tracing
D979 HB466-Compound-.780
D981 HB690-Compound-.550
D989 HB591-Compound-.760
D990 HB493-Compound-.650
D991 HB483-Compound-.635 Click for large image of tracing
D992 HB454-Compound-.715
D997 HB433-Compound-.654
D999 HB450-Compound-.555
D1000 HB451-Compound-.668
D1001 HB453-Compound-.585 Click for large image of tracing
D1002 HB468-Compound-.492 Click for large image of tracing
D1003 HB466-Compound-.780
D1004 HB452-Compound-.545 Click for large image of tracing
D1006 HB481-Compound-.750
D1007 HB512-Compound-.605
D1008 HB378-Compound-.565 Click for large image of tracing
D1009 HB470-Compound-.643 Click for large image of tracing
D1010 HB511-Compound-.790
D1011 HB455-Compound-.785
D1012 HB456-Compound-.705
D1013 HB461-Compound-.646
D1014 HB501-Compound-.625 Click for large image of tracing
D1016 HB453-Compound-.585 Click for large image of tracing
D1017 HB364-Compound-.642 Click for large image of tracing
D1018 HB553-Compound-.652 Click for large image of tracing
D1019 HB467-Compound-.540 Click for large image of tracing
D1023 HB364-Compound-.642 Click for large image of tracing
D1025 HB264-Compound-.575
D1027 HB588-Compound-.875
D1028 HB524-Compound-.740 Click for large image of tracing
D1029 HB609-Compound-.572 Click for large image of tracing
D1033 HB525-Compound-.540 Click for large image of tracing
D1035 HB592-Compound-.665 Larger image not currently available
D1036 HB593-Compound-.548
D1037 HB457-Compound-.605
D1039 HB554-Compound-.643
D1040 HB443-Compound-.614
D1041 HB555-Compound-.678
D1042 HB458-Compound-.642 Click for large image of tracing
D1043 HB460-Compound-.580
D1044 HB519-Compound-.682 Click for large image of tracing
D1048 HB573-Compound-.615
D1049 HB530-Compound-.570 Click for large image of tracing
D1050 HB453-Compound-.585 Click for large image of tracing
D1053 HB194-Compound-.570 Click for large image of tracing
D1056 HB507-Compound-.711
D1057 HB508-Compound-.586   See application list for thickness
D1057 HB508-Compound-.675   See application list for thickness
D1058 HB509-Compound-.678
D1060 HB445-Compound-.610 Click for large image of tracing
D1061 HB534-Compound-.750 Click for large image of tracing
D1063 HB567-Compound-.694
D1066 HB547-Compound-.798
D1067 HB556-Compound-.710
D1068 HB529-Compound-.710
D1069 HB528-Compound-.811
D1075 HB360-Compound-.670 Click for large image of tracing
D1076 HB536-Compound-.704
D1077 HB299-Compound-.650 Click for large image of tracing
D1078 HB533-Compound-.668 Click for large image of tracing
D1079 HB299-Compound-.650 Click for large image of tracing
D1080 HB558-Compound-.710
D1081 HB484-Compound-.670 Click for large image of tracing
D1082 HB485-Compound-.656 Click for large image of tracing
D1083 HB455-Compound-.785
D1084 HB559-Compound-.695
D1086 HB572-Compound-.570
D1087 HB555-Compound-.678
D1092 HB561-Compound-.710 Click for large image of tracing
D1094 HB618-Compound-.625
D1095 HB478-Compound-.605 Click for large image of tracing
D1096 HB299-Compound-.650 Click for large image of tracing
D1098 HB681-Compound-.686
D1099 HB682-Compound-.657
D1100 HB619-Compound-.626
D1101 HB619-Compound-.626
D1102 HB678-Compound-.709
D1103 HB679-Compound-.600
D1107 HB543-Compound-.760 Click for large image of tracing
D1108 HB544-Compound-.628 Click for large image of tracing
D1109 HB613-Compound-.589
D1110 HB439-Compound-.555 Click for large image of tracing
D1111 HB538-Compound-.760 Click for large image of tracing
D1112 HB364-Compound-.587 Click for large image of tracing
D1113 HB562-Compound-.612
D1114 HB557-Compound-.545
D1116 HB616-Compound-.607 Click for large image of tracing
D1117 HB687-Compound-.750
D1119 HB526-Compound-.665
D1120 HB527-Compound-.604
D1124 HB671-Compound-.628 Click for large image of tracing
D1125 HB368-Compound-.665

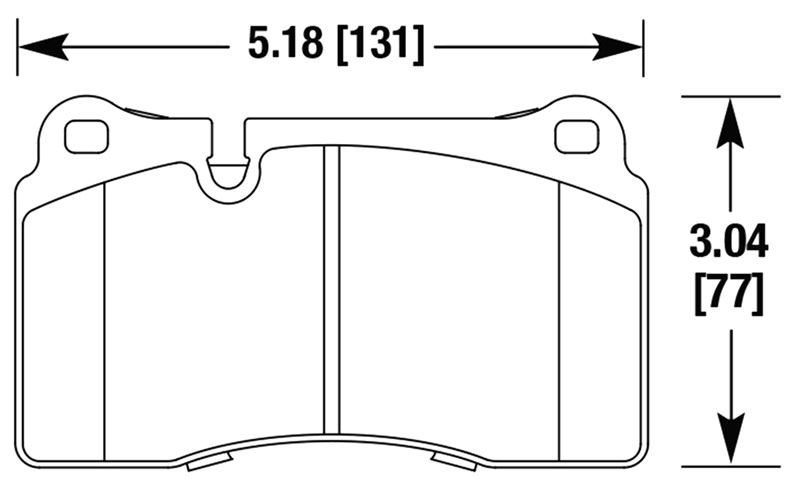

D1129 HB632-Compound-.586 Click for large image of tracing
D1134 HB665-Compound-.577
D1135 HB664-Compound-.634
D1136 HB575-Compound-.750
D1149 HB563-Compound-.656
D1151 HB676-Compound-.671
D1158 HB612-Compound-.690
D1159 HB535-Compound-.638
D1160 HB524-Compound-.740 Click for large image of tracing
D1161 HB564-Compound-.567

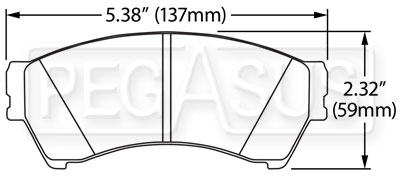

D1164 HB565-Compound-.688 Click for large image of tracing
D1165 HB632-Compound-.586 Click for large image of tracing
D1169 HB617-Compound-.630
D1170 HB624-Compound-.642
D1178 HB566-Compound-.688

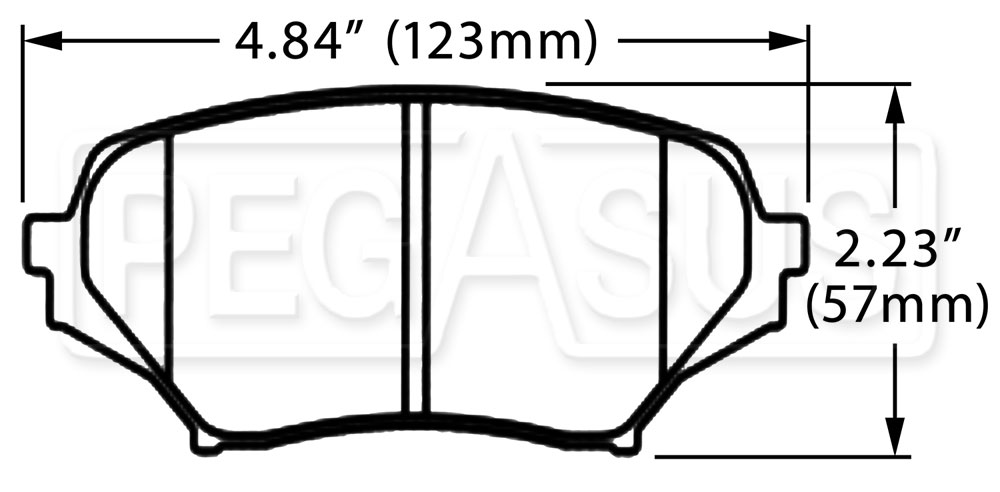

D1179 HB522-Compound-.565 Click for large image of tracing
D1180 HB523-Compound-.539 Click for large image of tracing
D1181 HB558-Compound-.710
D1182 HB178-Compound-.564 Click for large image of tracing
D1183 HB567-Compound-.694
D1184 HB596-Compound-.690
D1185 HB531-Compound-.570   Front
D1185 HB532-Compound-.570   Rear
D1185 HB658-Compound-.570 Click for large image of tracing Front One-Piece
D1185 HB659-Compound-.570 Click for large image of tracing Rear One-Piece
D1186 HB549-Compound-.702 Click for large image of tracing
D1192 HB565-Compound-.688 Click for large image of tracing
D1193 HB598-Compound-.606
D1194 HB568-Compound-.666 Click for large image of tracing
D1204 HB560-Compound-.677 Click for large image of tracing
D1210 HB627-Compound-.690
D1212 HB648-Compound-.607
D1215 HB594-Compound-.657
D1216 HB595-Compound-.589
D1222 HB647-Compound-.692
D1224 HB360-Compound-.670 Click for large image of tracing
D1230 HB519-Compound-.682 Click for large image of tracing
D1244 HB128-Compound-.505 Click for large image of tracing
D1249 HB628-Compound-.651
D1258 HB656-Compound-.684
D1259 HB657-Compound-.667
D1260 HB551-Compound-.748 Click for large image of tracing
D1263 HB683-Compound-.651
D1267 HB621-Compound-.638
D1270 HB194-Compound-.570 Click for large image of tracing
D1273 HB569-Compound-.650
D1274 HB608-Compound-.630
D1278 HB578-Compound-.735
D1279 HB579-Compound-.785
D1284 HB662-Compound-.587
D1286 HB620-Compound-.703
D1287 HB599-Compound-.616 Click for large image of tracing
D1288 HB600-Compound-.539 Click for large image of tracing
D1293 HB647-Compound-.692
D1298 HB563-Compound-.656
D1299 HB651-Compound-.624 Click for large image of tracing
D1300 HB651-Compound-.624 Click for large image of tracing
D1303 HB589-Compound-.704
D1304 HB590-Compound-.682
D1308 HB570-Compound-.666
D1309 HB574-Compound-.636 Click for large image of tracing
D1322 HB641-Compound-.696 Click for large image of tracing
D1333 HB528-Compound-.811
D1334 HB556-Compound-.710
D1336 HB626-Compound-.577
D1337 HB639-Compound-.645
D1338 HB660-Compound-.661
D1346 HB601-Compound-.626 Click for large image of tracing
D1347 HB602-Compound-.545 Click for large image of tracing
D1351 HB606-Compound-.650
D1352 HB607-Compound-.616
D1353 HB547-Compound-.798
D1354 HB629-Compound-.565
D1359 HB625-Compound-.760
D1363 HB561-Compound-.710 Click for large image of tracing
D1364 HB525-Compound-.540 Click for large image of tracing
D1365 HB616-Compound-.607 Click for large image of tracing
D1367 HB561-Compound-.710 Click for large image of tracing
D1368 HB615-Compound-.535
D1371 HB603-Compound-.616
D1372 HB604-Compound-.598
D1374 HB660-Compound-.661
D1377 HB674-Compound-.664
D1379 HB548-Compound-.600
D1380 HB561-Compound-.710 Click for large image of tracing
D1382 HB650-Compound-.730 Click for large image of tracing
D1383 HB193-Compound-.670 Click for large image of tracing
D1384 HB635-Compound-.645
D1386 HB642-Compound-.658
D1387 HB637-Compound-.583
D1392 HB644-Compound-.785
D1395 HB631-Compound-.622
D1396 HB636-Compound-.644
D1399 HB633-Compound-.790
D1400 HB634-Compound-.750
D1403 HB640-Compound-.550 Click for large image of tracing
D1404 HB638-Compound-.702
D1405 HB649-Compound-.605 Click for large image of tracing
D1413 HB661-Compound-.667
D1414 HB672-Compound-.714
D1419 HB531-Compound-.570   Front
D1419 HB532-Compound-.570   Rear
D1419 HB658-Compound-.570 Click for large image of tracing Front One-Piece
D1419 HB659-Compound-.570 Click for large image of tracing Rear One-Piece
D1423 HB629-Compound-.565
D1425 HB684-Compound-.694
D1426 HB685-Compound-.610
D1427 HB686-Compound-.645
D1454 HB668-Compound-.567 Click for large image of tracing
D1428 HB663-Compound-.557
D1463 HB484-Compound-.670 Click for large image of tracing
D1464 HB484-Compound-.670 Click for large image of tracing
D1465 HB485-Compound-.656 Click for large image of tracing
D1474 HB453-Compound-.585 Click for large image of tracing
D1507 HB383-Compound-.685
Hawk Performance Brake Pad Compounds

Other ways to search for Hawk Brake Pads:

Hawk Brake Pad Application List by Car Make and Model

Hawk Brake Pad Racing Caliper Cross Reference

Hawk Performance Brake Pads by Hawk Part Number

This article was first published on 5/26/2010.
